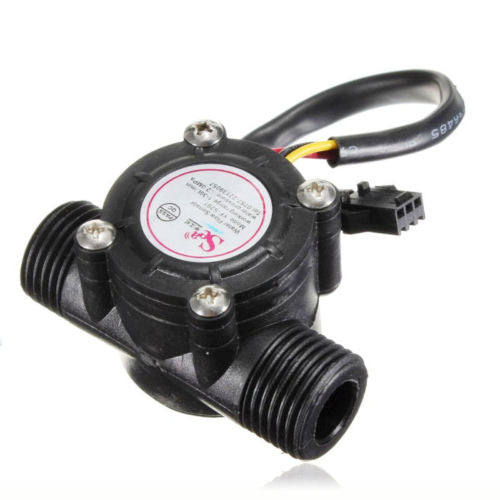

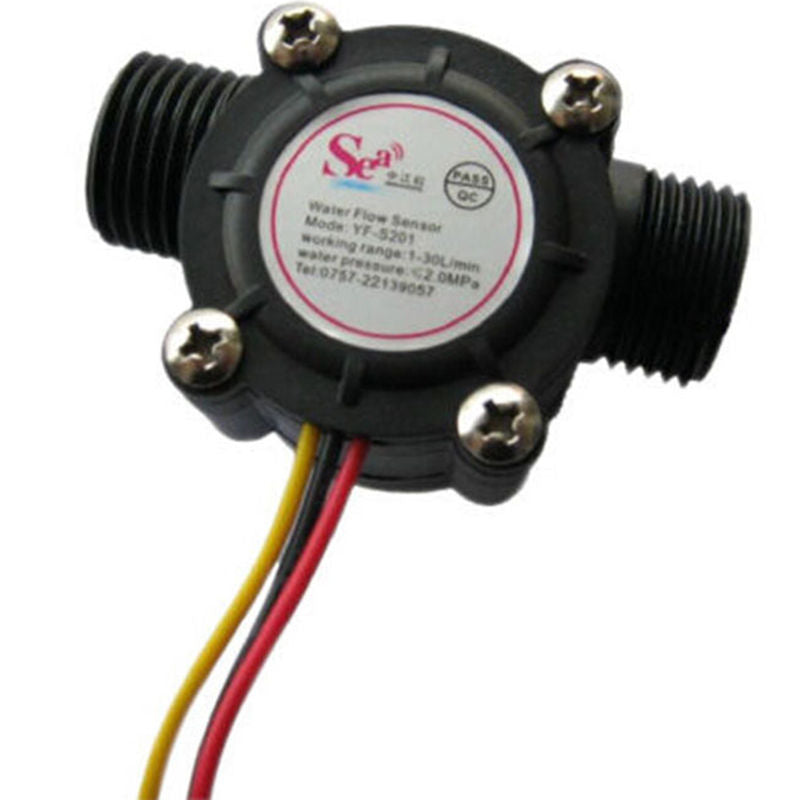

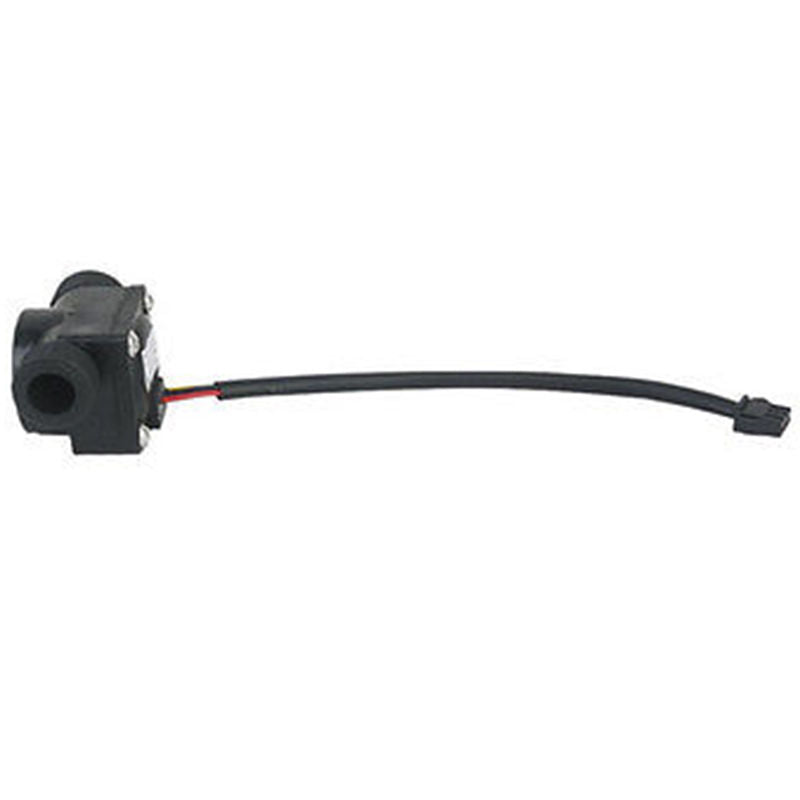

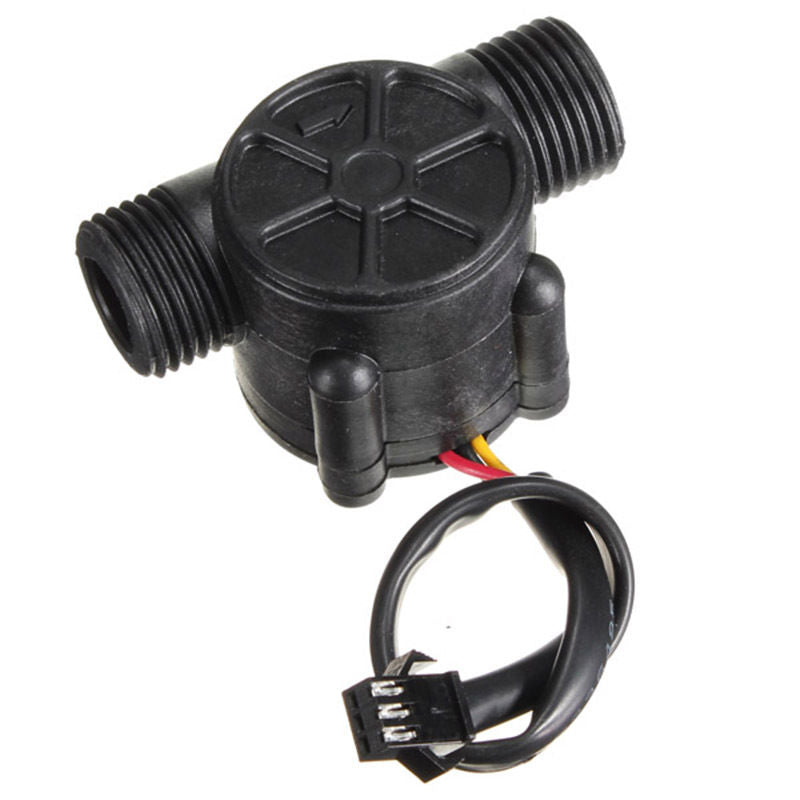

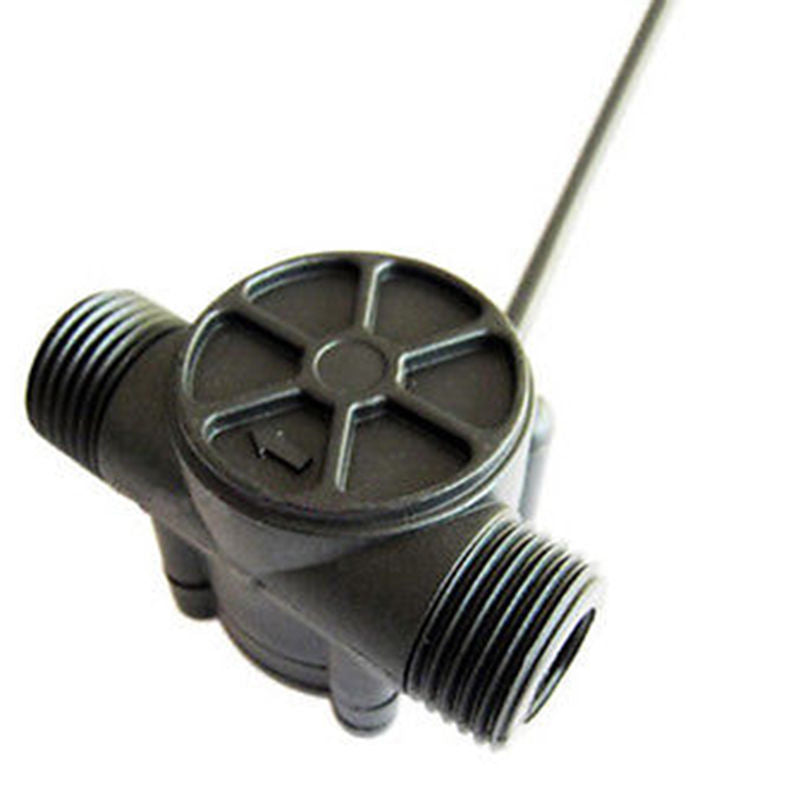

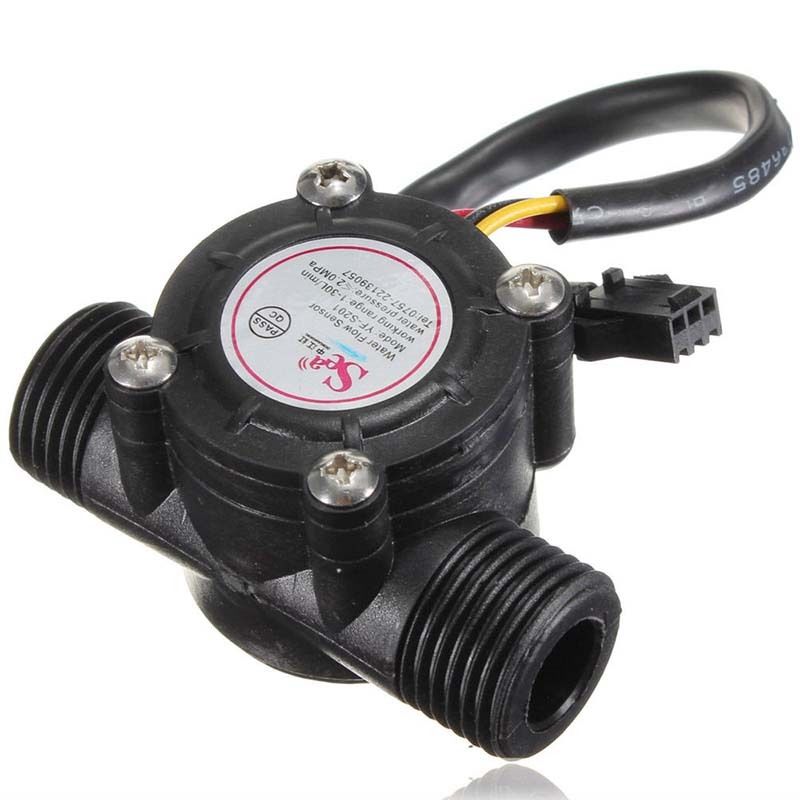

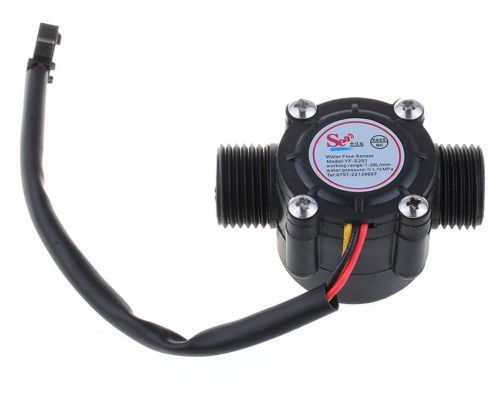

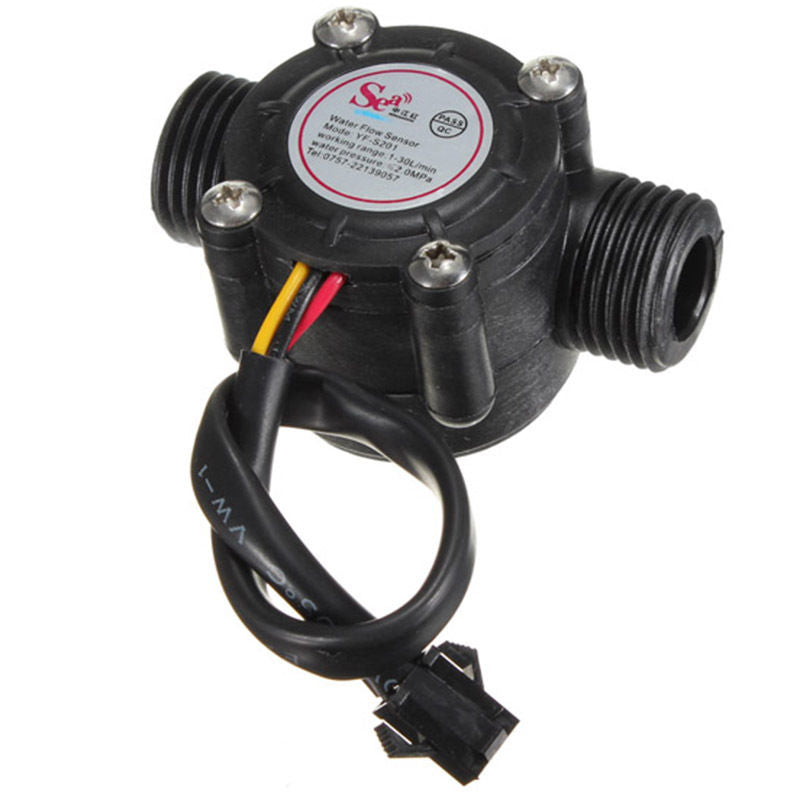

3D003 YF-S201 1/2" 1.75Mpa Water Flow Sensor Control Hall Flowmeter Flow Meter 1-30L/min

  • Sale
  • Regular price Dhs. 35.00


Features:

  • Mainly used for water testing, water cooling system

  • Application: Water heaters, credit card machines, water vending machine, flow measurement device

  • High amplitude: ≥ 4.6V

  • Low amplitude: ≤ 0.5V

  • Electric strength: 1250V/min

  • Insulation resistance: ≥ 100MΩ

  • Hydrostatic pressure testing: ≤ 2.0Mpa

Specification:

  • The lowest rated working voltage: DC4.5 5V-24V

  • Maximum operating current: 15mA (DC 5V)

  • Working voltage range: DC 5~18V

  • Load capacity: ≤ 10mA (DC 5V)

  • Use temperature: ≤ 80°C

  • Operating humidity range: 35%~90%RH (no frost)

  • Allowing pressure: pressure 2.0Mpa

  • Temperature: -25 ~ +80 °C

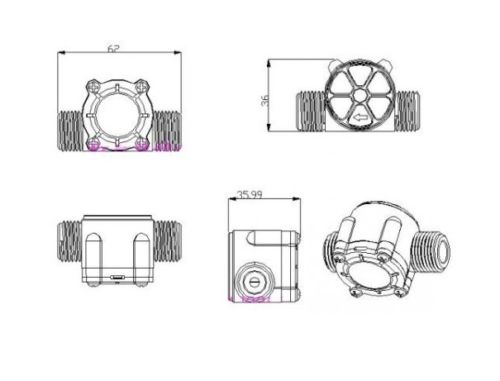

  • External threads: 1/2"

  • Outer diameter: 20mm

  • Intake diameter: 9mm

  • Outlet diameter: 12mm

Package included:


  •  1 x YF-S201 1/2" 1.75Mpa Water Flow Sensor Control Hall Flowmeter Flow Meter 1-30L/min
  •
