4E0005 XL830L LCD Digital Multimeter ,Digital Voltmeter Ohmmeter Ammeter OHM Multimeter Tester

4E0005 XL830L LCD Digital Multimeter ,Digital Voltmeter Ohmmeter Ammeter OHM Multimeter Tester

Regular price Dhs. 50.00
Regular price Sale price Dhs. 50.00
Sale Sold out
View full details

Description :

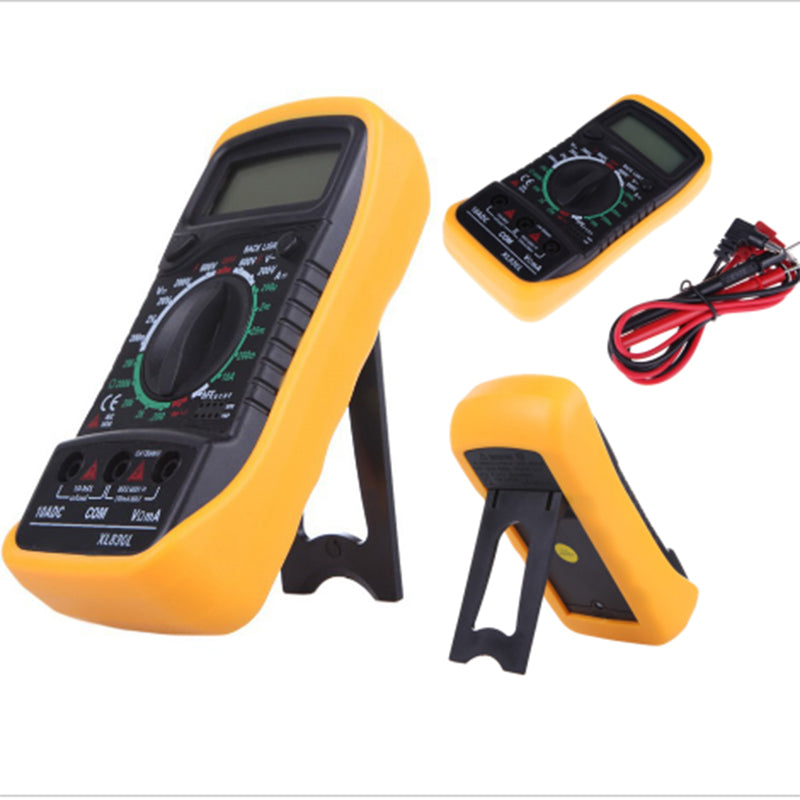

XL830L LCD Digital Voltmeter Ohmmeter Ammeter OHM Multimeter Tester

This is a XL830L handheld digital multimeter for measuring DC and AC voltage, DC current, Resistance, Diode and Transistor, with battery operated. It is so easy and efficient, so practical for electrician use.

Easy to operate and the readings indicated directly on the screen. It can be use to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.


Features :

Model : XL830L

15mm high LCD Display

Max display : 1999, Auto polarity display

Portable and compact design;overload protection on all ranges

Diode assembly test / Transistor P-N junction test/Transistor HFE test

Continuity test with buzzer sound in circuit

Low battery voltage indication

Data hold function


DC Voltage : 200mV/2V/20V/200V +- 0.5%, 600V +- 0.8%

AC Voltage : 200V/600V +- 1.2%

DC Current : 200μA, 2mA, 20mA +- 1%, 200mA +- 1.5%, 10A +- 3%

Resistance : 200Ohms,2KOhms, 20KOhms, 200KOhms, 2MOhms +- 0.8%

Display : LCD, 1999 counts

Fuse protection : F-200mA/250V

Operating Temperature : -0C to 40C

Overrange Indication : Only figure "1" on the display

Polarity Indication : "-" displayed for negative polarity

Low Battery Indication : - /+ display

Power by One 9V battery


Specifications :

Maximum voltage between terminals and earth ground


Fuse protection       F 200mA/250V

Power            9V battery, NEDA1640 or 6F22

Display           LCD, 1999 counts, updates 2-3/sec

Measuring method Dual-slope integration A/D converter

Overrange Indication        Only figure “1” on the display

Polarity indication  “-“ displayed for negative polarity

Operating Environment    0 to 40 Celsius

Storage temperature        -10 to 50 Celsius

Low battery indication      “- +” appears on the display

Size     138mmX 69mm X 31mm

Weight          Approx. 240g


Package includes :

1 x XL830L Digital LCD Multimeter

1 x Test Leads line(red&black)

 1 x User Manual
