PRODUCT DESCRIPTION:
.MEASURE ENERGY(WH),CHARGE(AH), POWER(W),CURRENT(A) AND VOLTAGE(V)
.CONENCTOR TO USE AN OPTIONAL RECEIVER BATTERY FOR MEASUREMENT DOWN TO 0 V
.ACCURATE & PRECISE 0.01 A CUURRENT AND 0.01 V VOLTAGE RESOLUTIONS
.MEASURES PEAK AMPS, PEAK WATTS(EXCEPT FOR DOC WATTSON) AND VOLTAGE MINIMUM(SAG)
.RUGGED- HANDLES 50A CONTINUOUS AND 100 A PEAK AT 60V
.14A GA., SUPER FINE STRANDED, HIGH TEMPERATURE, SILICONE RUBBER INSULATED WIRE
.SMALL & LIGHT WITH A TOUGH PLASTIC CASE AVAILABLE IN SEVERAL COLORS
.ACTS LIKE A WIRE SO DOESN'T AFFECT MODEL'S PERFORMANCE. PRECISION ALU-CHROM CURRENT SENSING RESISTOR, WITH ONLY 0.001 OHMS RESISTANCE AND CIRCUITRY THAT DRAWS ONLY 7 MA
.USES DSP TO INCREASE ADC RESOLUTION AND DIFFERENTIAL MEASUREMENT AMPLIFIERS TO INCREASE NOISE IMMUNITY
.POWERFUL IN USA TO ISO 9001:2000 QUALITY STANDARDS
SPECIFICATIONS:
.VOLTAGE:0-60V 0.01V (RESOLUTION)
.CURRENT:0-100 A PEAK 0.01A (RESOLUTION)
.POWER:0-6554 W 0.1W (RESOLUTION)
.POWER:0-6554 W 0.1W (RESOLUTION)
.CHARGE:0-65 AH 0.001AH (RESOLUTION)
.ENERGY:0-6554 WH 0.1 WH (RESOLUTION)
.MEASUREMENT UPDATE PERIOD:400MS
.SIGNAL SAMPLING RATE:SAMPLE/S
.DATA QUEUE SEQUENCE TIME: 2 SECONDS
.IN CIRCUIT RESISTANCE:0.001 OHMS
.OPERATION CURRENT: 7 MA
.AUXILIARY POWER VOLTAGE:4.0V -60V
.DIMENSIONS( L X W X D ): 84 X 50 X 20MM
PACKAGE INCLUDED:

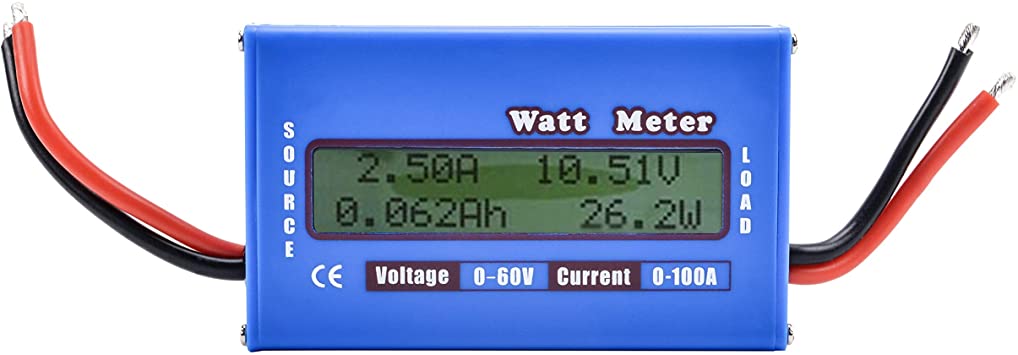

1 X WATT METER
1 X MANUAL
