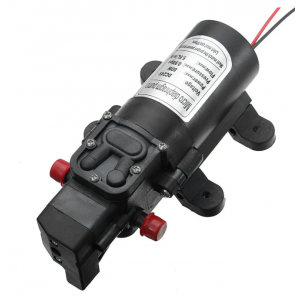

4C3 Water Pump Automatic Switch 0142YA-12-80 130PSI DC12V 80W Mini Micro Diaphragm High Pressure

4C3 Water Pump Automatic Switch 0142YA-12-80 130PSI DC12V 80W Mini Micro Diaphragm High Pressure

Regular price Dhs. 120.00
Regular price Sale price Dhs. 120.00
Sale Sold out
View full details

This is a product with a pressure switch. It will be automatically cut off the power supply and the motor stops running when the water outlet is turned off.
Once the water outlet is turned on, the motor starts running again. This type of product can be applied to occasions, which have demand for energy conservation and frequent switching, such as machine washing, feeding water to a solar energy system, and remote automatic controlling system of conveying water and suspending water supply, etc.



Features:


Corrosion resistant.

Automatic switch.

Rubber bracket can absorb vibration from the pump when working.

Connector size fits approx. 6.4-10.3mm inner diameter pipe.

Multi-purpose: can be widely used for garden sprinklers, shower, water taps in the boat, caravan or motor home.

Agricultural purposes: spray for farm chemical, pesticide.



Specifications:

Model Number: 0142YA-12-80

Voltage: 12V DC

Power: 80W

Max Pressure: approx. 130PSI (0.9MPA)

Working Pressure: approx. 80PSI (0.55MPA)

Flow rate: 5.5L/min

Working temperature: 0 ~ 60℃

Color: Black

Size: 16.5 x 9.5 x 6cm (approx.)

Material: Engineering Plastics

Weight:622g



Package includes:

1 x 0142YA-24-80 130PSI DC12V 80W Water Pump
