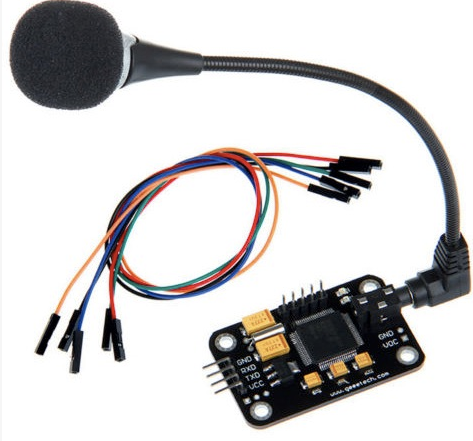

5C5 Voice Recognition Module and Microphone for Arduino

5C5 Voice Recognition Module and Microphone for Arduino

Regular price Dhs. 150.00
Regular price Sale price Dhs. 150.00
Sale Sold out
View full details


Voice recognition is something that knows exactly what you are saying. It differs from sound control, which means controlling the light on and off by making a sound.

We've been thinking about a low-cost module that helps control other devices by voice. Finally, we designed this Geeetech Voice Recognition Module, which can recognize as many as 15 voice instructions and is suitable for most cases involving voice control.

This Geeetech Voice Recognition Module could recognize your voice. It receives configuration commands or responds through a serial port interface. With this module, we can control cars or other electrical devices by voice.

It can store 15 pieces of voice instruction. Those 15 pieces are divided into 3 groups, with 5 in one group. First, we should record the voice instructions, group by group. After that, we should import one group by serial command before it can recognize the 5 voice instructions within that group. If we need to implement instructions in other groups, we should import the group first. This module is speaker independent. If your friend speaks the voice instruction instead of you, it may not identify the instruction.

Please note that speaker independence requires strictly good MIC. The MIC we supply may not be good enough for it to be speaker-independent.


  • Voltage:4.5-5.5V
  • Current:<40mA
  • Digital Interface: 5V TTL level UART interface
  • Analog Interface: 3.5mm mono-channel microphone connector + microphone pin interface
  • Size: 30mm x 47.5mm
  • Recognition accuracy: 99% (under ideal environment)

Package includes

  • 1 x Geeetech Voice Recognition Module
  • 1 x Microphone
  • 5 x 30cm 1pin female to female jumper wire
