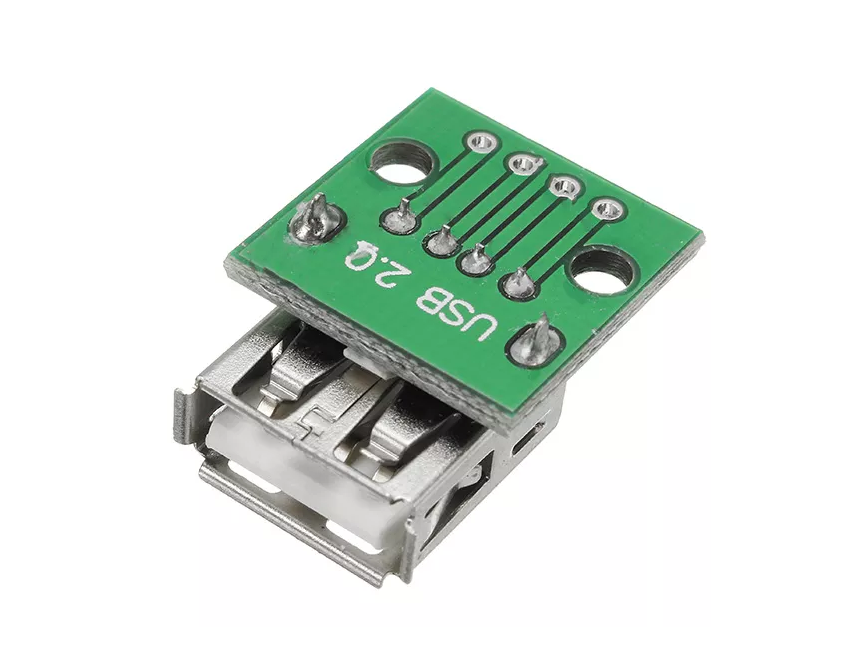

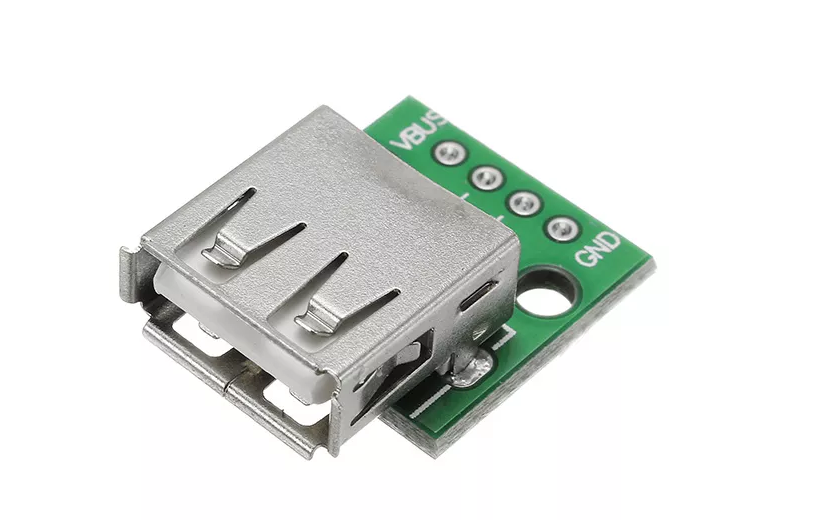

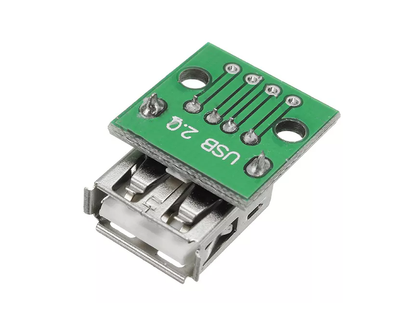

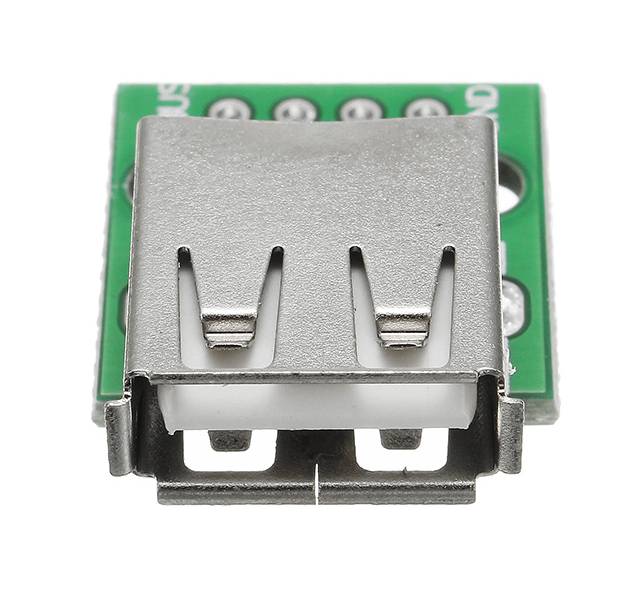

1D19 USB 2.0 Female Head Socket To DIP 2.54mm Pin 4P Adapter Board

1D19 USB 2.0 Female Head Socket To DIP 2.54mm Pin 4P Adapter Board

Regular price Dhs. 20.00
Regular price Sale price Dhs. 20.00
Sale Sold out
View full details


  • It is very useful if you want to link a project with a USB connector for power supply or data exchange. Standard-size USB 2.0 socket mounted on a small PCB. No delicate soldering is required. These USB connector can be easily attached in your projects
  • It's a USB 2.0 female connector. The connector quality is fine, and the board is good with two 3mm mounting holes. The easy way to add a USB port to your project without fiddling with SMD bits
  • Convenient breakout for USB. Useful for quick prototypes: measurements and/or connections for Arduino projects using USB power supplies and signals. This has to be always-in-stock, always on-demand product, use it for internal sub-repair everywhere
  • Now mobile phone charging cables have been seen everywhere; almost everyone has them. This adapter module can easily convert the charger's power and data cable into conventional DIP 2.54mm pin, a great convenience for your application
  • This assembly makes it possible to test a USB cable very easily, and it avoids cutting a good USB cable to test a model. The support is equipped with 4 fixing holes to assemble a fixed mounting. Very convenient. They are rated for higher performance.


  • Mounting holes:3mm
  • Operating Voltage: 5V
  • Pin pitch:2.54mm
  • Operating Current: 500mA (MAX)
  • Total Size : 25 x 17 x 10mm/1 x 0.68 x 0.4in (L*W*H)


  • Easy-to-use USB connector, practical for projects
  • This module can easily convert power and data to conventional DIP 2.54mm pin
  • It is suitable for breadboard and PCB experiment board DIY projects


  • For USB cable testing or breakout
  • Good for orange pi zero on stock gpio headers
  • Connect DIY projects, such as DIY charging station
  • used to construct battery packs to power bicycle lights
  • breaks out a USB wire. Very useful
  • Distribute power from a power supply unit to several devices (HDD in a NAS)
  • Using the board to connect sensors to USB cables. Also used to measure the current usage of various projects. Makes connecting everything up without much effort at all.

Package included:

  • 1 x USB 2.0 Female Connetor to DIP 4pin 2.54mm Power Converter Adapter Board
