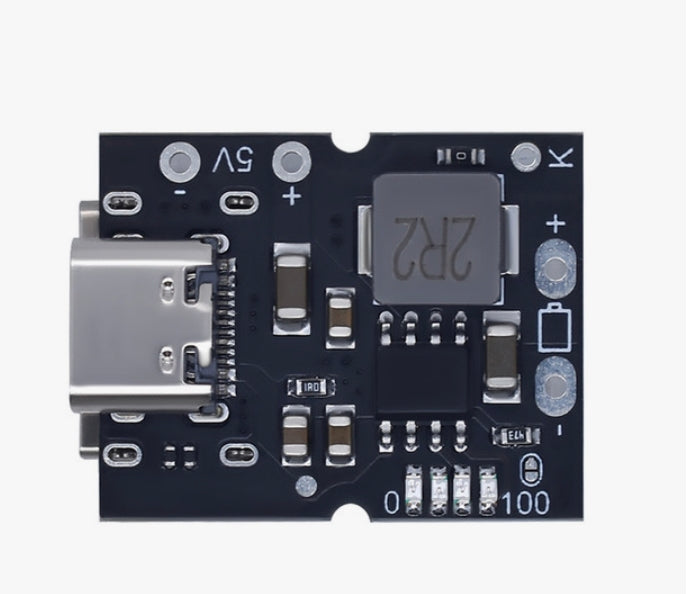

5B1 Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board LED Display USB For DIY Charger

5B1 Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board LED Display USB For DIY Charger

Regular price Dhs. 30.00
Regular price Sale price Dhs. 30.00
Sale Sold out
View full details

Description

A Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board LED Display USB For DIY Charger is a device used to convert a lower voltage power source to a higher voltage power source. This device is often used to charge lithium-ion batteries, which require a higher voltage input than the standard USB power supply. The device also includes a charging protection circuit and an LED display to monitor the charging progress. It is designed to be easy to use for DIY (Do It Yourself) projects and can be used to charge a variety of electronic devices.

It is a small electrical device used for charging mobile devices from a computer. The USB 5V standard is for charging low-power devices such as smartphones and tablets, and the 2A current rating is sufficient for most devices. A step-up power module converts the lower voltage from the computer's USB port to a higher voltage needed by the device, while also providing overvoltage protection to prevent damage. A lithium battery charging protection board ensures that the battery is not overcharged, which can cause damage. An LED display shows the charging status of the device, while a USB interface allows it to be powered back up from a computer.

Features

  • Type-C input with female fits almost all rechargeable lithium batteries.
  • 5V/2A charging board modules can be very convenient to DIY.
  • In load current <50 mA, output shuts; after current reaches the final voltage (≤100 mA), the cycle automatically stops.
  • When battery voltage drops (<4.1V), the cycle starts again; at battery voltage <2.8V, the battery will be pre-charged at 180 mA.
  • It supports simultaneous & discharge, external connection of keys (by K point and output negative pole).


Specifications

  • Material: Electronic components
  • Color: Multicolor
  • Input voltage: 5~5.5V
  • Charging cut-off voltage: (4.2V/4.35V) ± 0.5%
  • Charging current: 2.4A ± 5%
  • Boost output voltage: 5V~5.15V (loss compensation)
  • Boost output voltage ripple: 100mV
  • Boost output current: 2A
  • Boost conversion efficiency: 92.5% (3. input, 5V 2A output)
  • Battery end quiescent current: <30uA

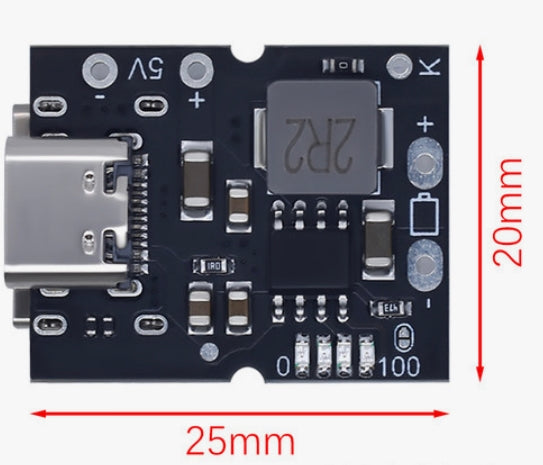

  • Package size: 9*6*2cm / 3.54*2.36*0.78in
  • Package weight: 5g (0.17 oz)

Boost Efficiency

Package Includes

  • 1 x Type-C USB 5V 2A Step-Up Boost Converter with USB Charger
