Blue PCB Electronics

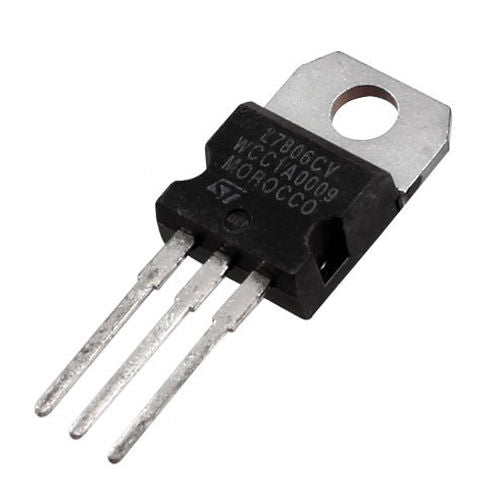

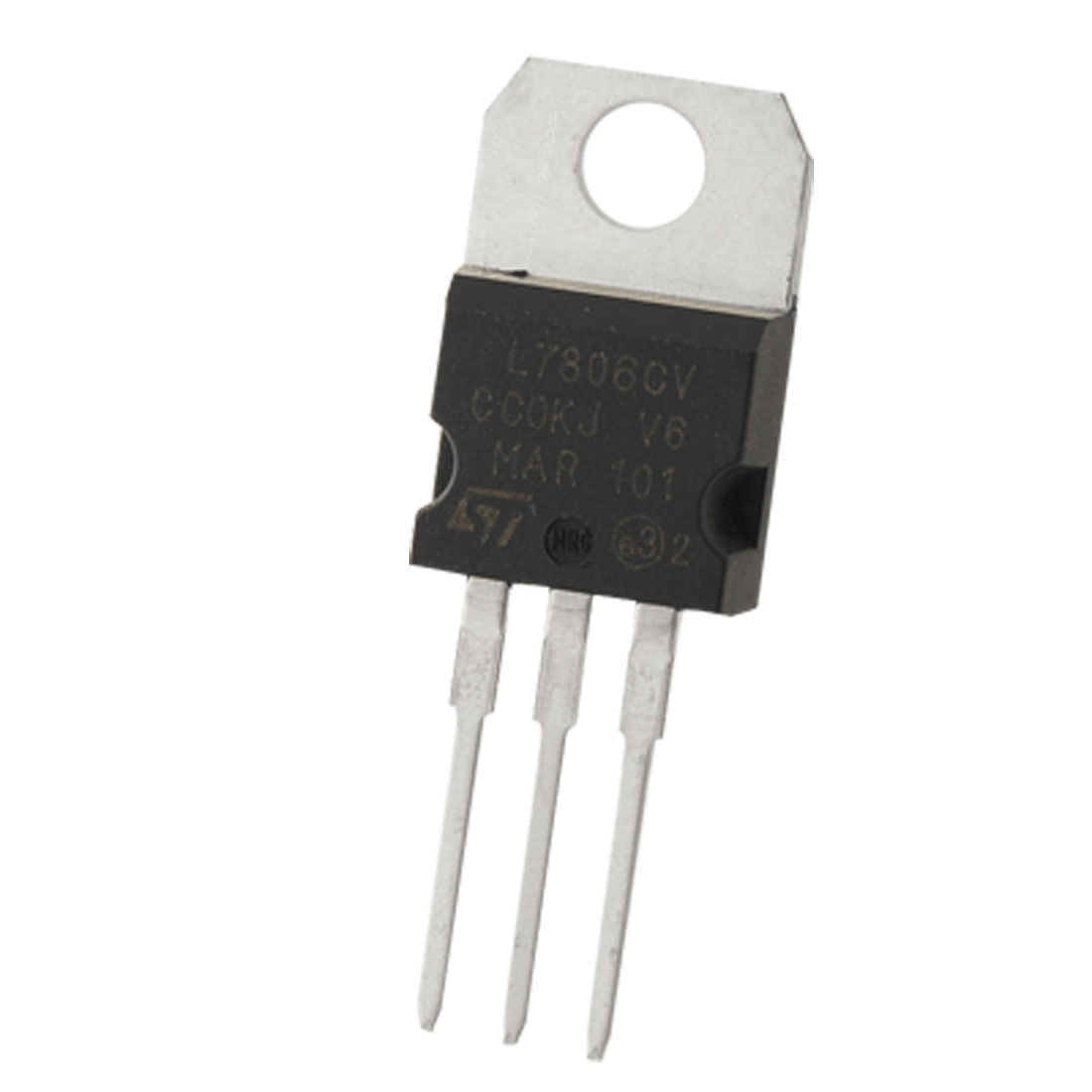

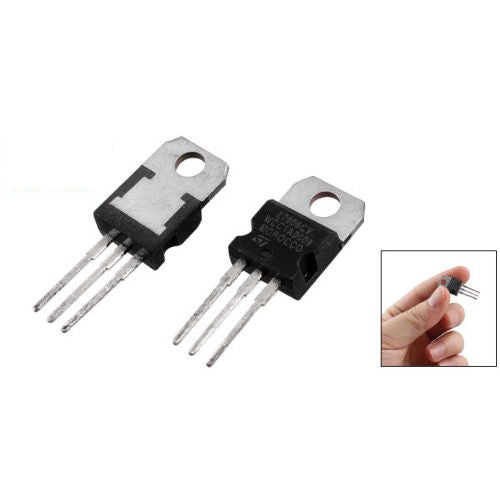

D5F 7806 TO-220 L7806CV 1.5A 6V Positive Voltage Regulator

D5F 7806 TO-220 L7806CV 1.5A 6V Positive Voltage Regulator

Regular price Dhs. 4.00
Regular price Sale price Dhs. 4.00
Sale Sold out
View full details

Specification:



Product Name Positive Voltage Regulator
Model L7806CV
VRRM 6V
IR(AV) 1.5A
Pin Length 13mm / 0.511"
Pin Spacing Pitch 2.5mm / 0.098"
Body Size 16 x 10 x 5mm / 0.6" x 0.4" x 0.2"(L * W* T)
Hole Diameter 3.6mm / 0.14"
Color As Picture Show
Weight 5g
Package Content 1 x Positive Voltage Regulator



Description:





  • Three-terminal positive regulator are  available  in the TO-220 package and with several fixed output voltages,  making them useful in a wide range of applications.
  • Provide local on-card regulation, eliminating the distribution problems associated with single point regulation.
  • Output Current up to 1.5A.
  • Thermal Overload Protection  .
  • Short Circuit Protection.
  • Output Transistor Safe Operating Area Protection .
