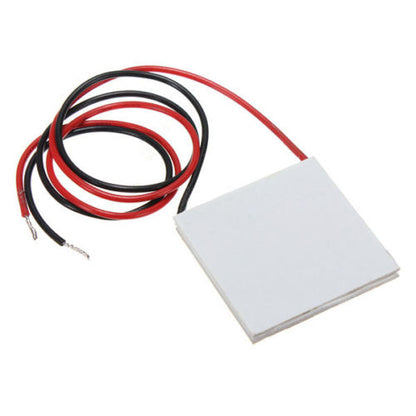

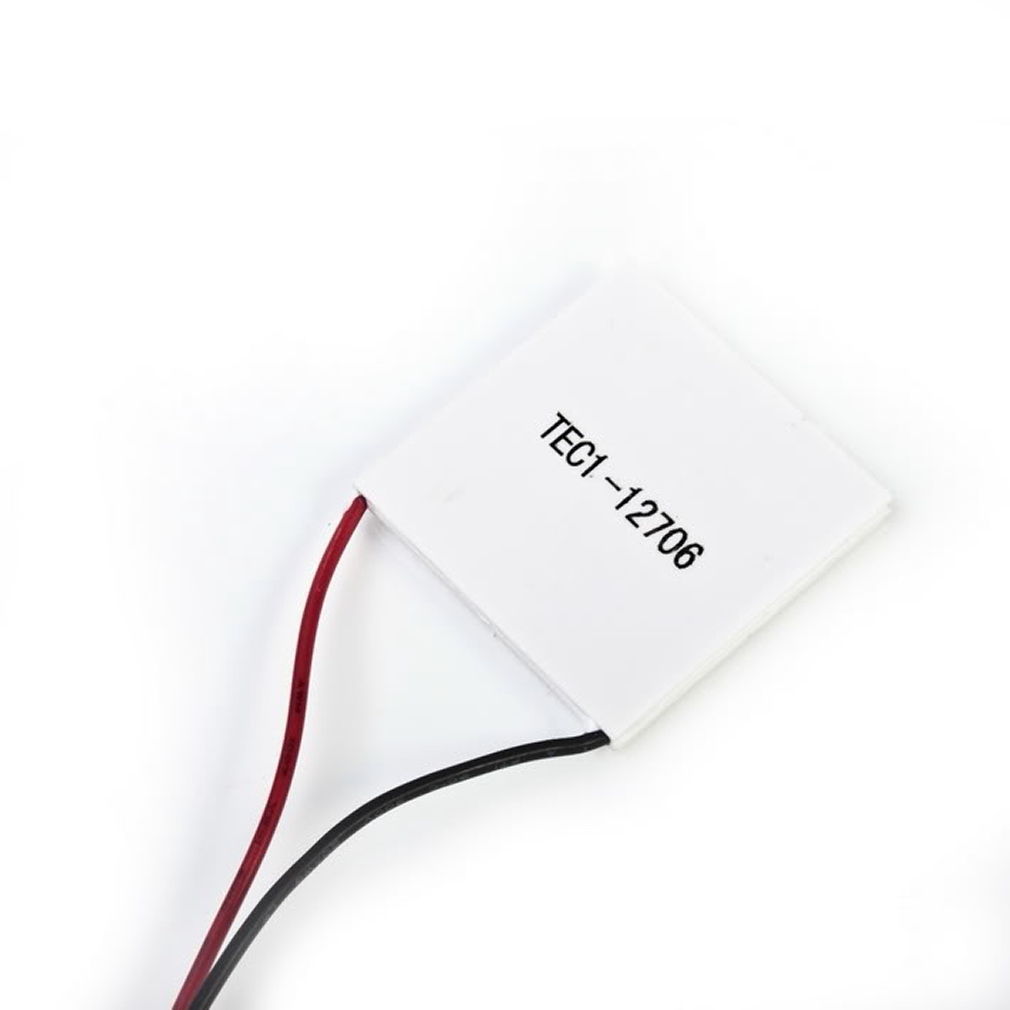

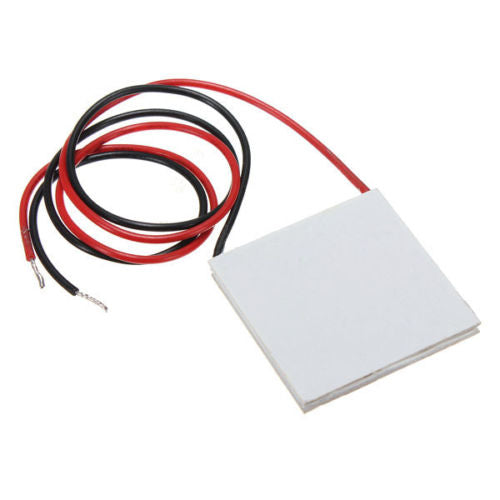

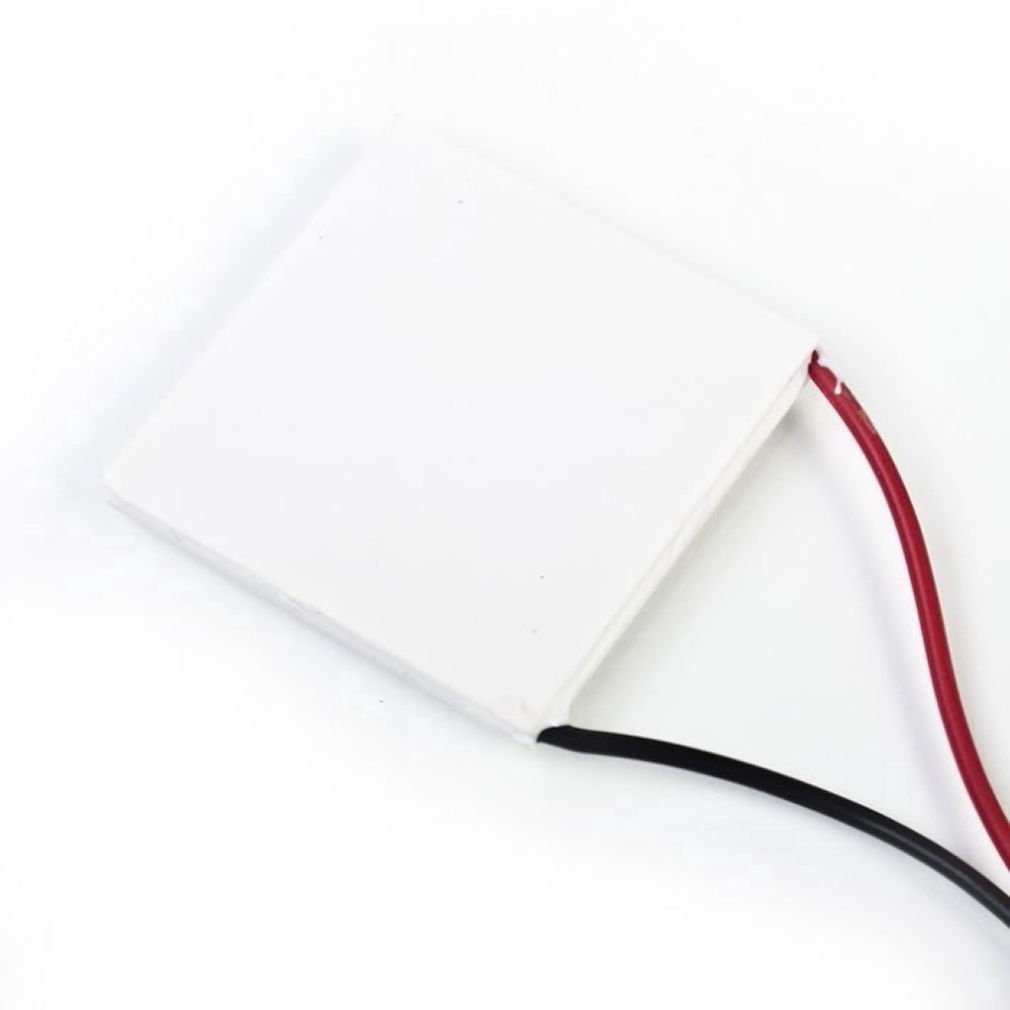

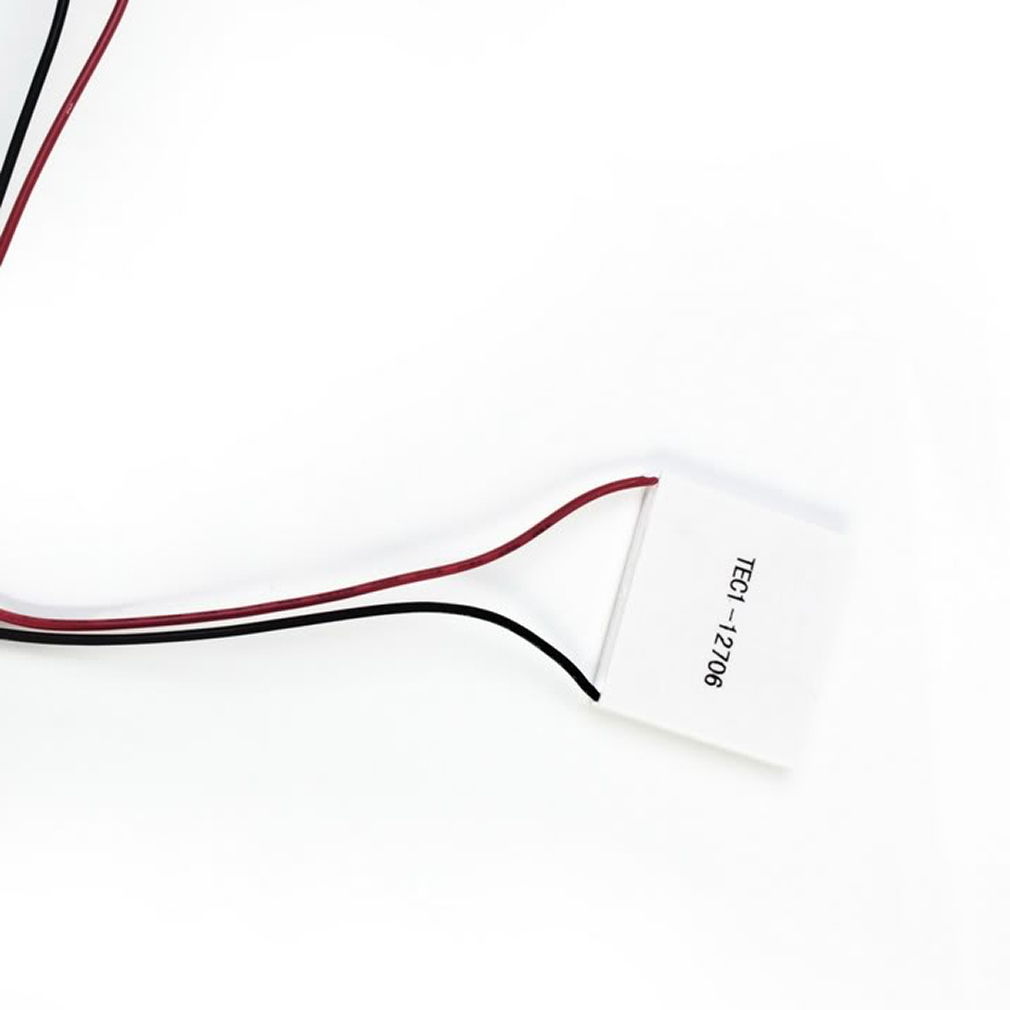

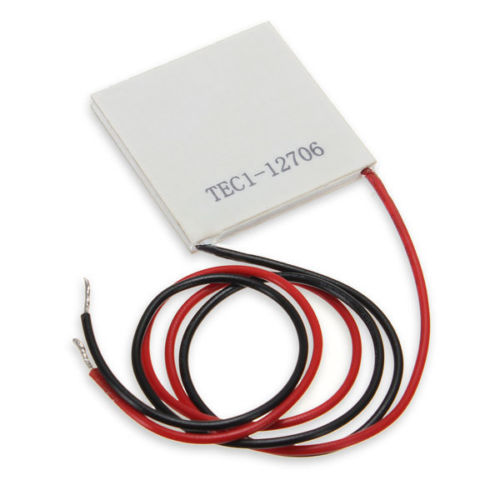

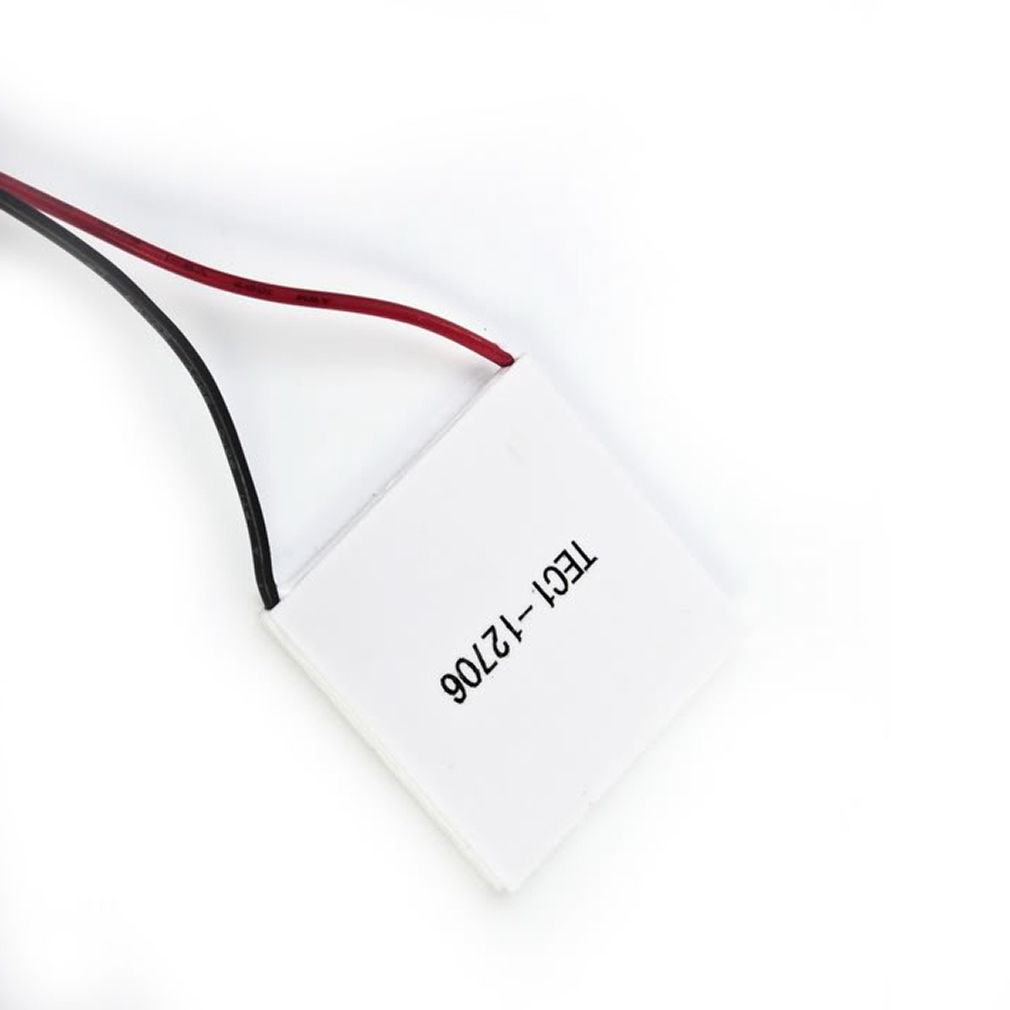

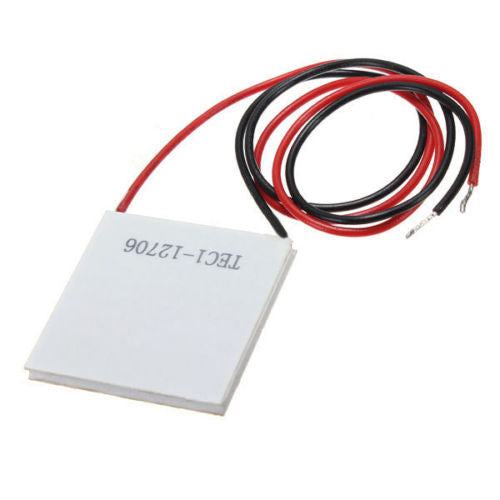

4C6 TEC1-12706 Thermoelectric Cooler Peltier Cooling Plate Module

4C6 TEC1-12706 Thermoelectric Cooler Peltier Cooling Plate Module

Regular price Dhs. 25.00
Regular price Dhs. 35.00 Sale price Dhs. 25.00
Sale Sold out
View full details


Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications, from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler. Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts,. These devices must be used in conjunction with a heat sink to avoid being burned. Each device is fully inspected and tested. Fitted with 6-inch insulated leads.

Connected to a 12-volt power supply, the cell will have a temperature differential between the two sides of about 20 °C (68 °F).

Important: Do not connect the cell to a power supply for more than a few seconds without a heat-sink on the hot side; otherwise, there will be internal overheating and destruction of the Peltier cell.


  • Model: TEC1-12706
  • Size: 40mm x 40mm x 4mm
  • Operates : 0~12V DC and 0~4.5A
  • Operates Temperature: -30°C to 70°C
  • Max power consumption: 60 Watts
  • Net weight: 22g
  • Color: White


This cooling Peltier cell is very simple to install and use. Before installation, you must provide a dry environment and allow for any condensation from the cold side to drain away and not come into contact with the operating cell. Connect the two leads of the Peltier cell to an appropriate power supply, and importantly, observe the correct lead polarity and attach an adequate heat-sink with a quality thermal conductor grease applied to the warm side of the cell; you will feel the warm side and the opposite cool side of the operating cell. It is important to identify both the correct lead polarity and the cooling and heating sides of the device. If you want a greater cooling differential, it is recommended to use two Peltier cells, namely, one stacked above the other with the hot side of the upper cell in contact with the cool side of the lower one; an experiment proved the two-stacked cell cooling effect is much better than the single-stage. Similarly, a three-cell stack produces an even greater temperature differential but requires a larger capacity power supply support.

Package includes

  • 1 x TEC1-12706 Thermoelectric Cooler .
