Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):200% @ 5mA
Current Transfer Ratio (Max):400% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50mA
Vce Saturation (Max):200mV
Operating Temperature:-40°C ~ 100°C

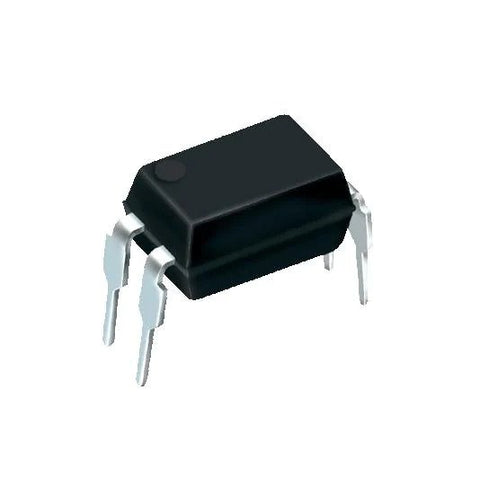

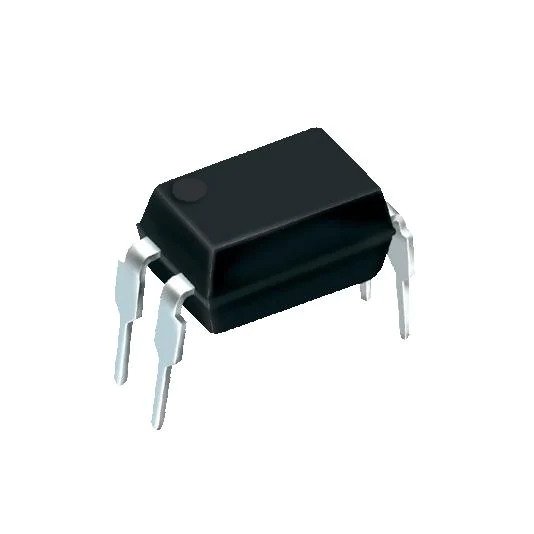

Mounting Type:Through Hole
Package / Case:4-DIP (0.300", 7.62mm)
Supplier Device Package:4-DIP
