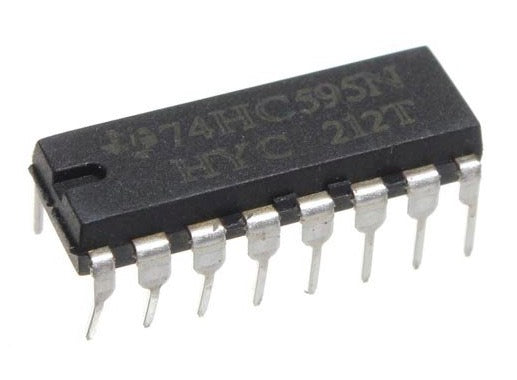

5F0000 SN74HC595N 74HC595 Serial-In Parallel-Out Shift Register - 8-Bit

  • Sale
  • Regular price Dhs. 5.00

Serial-In Parallel-Out Shift Register - 8-Bit



The 74HC595 is an 8-stage serial shift registers with a storage register and 3-state outputs. The registers have separate clocks.
Data is shifted on the positive-going transitions of the shift register clock input (SHCP). The data in each register is transferred to the storage register on a positive-going transition of the storage register clock input (STCP). If both clocks are connected together, the shift register will always be one clock pulse ahead of the storage register.
The shift register has a serial input (DS) and a serial standard output (Q7S) for cascading. It is also provided with asynchronous reset (active LOW) for all 8 shift register stages. The storage register has 8 parallel 3-state bus driver outputs. Data in the storage register appears at the output whenever the output enable input (OE) is LOW.




  • 8-bit serial input
  • 8-bit serial or parallel output
  • Storage register with 3-state outputs
  • Shift register with direct clear
  • 100 MHz (typical) shift out frequency




  • Serial-to-parallel data conversion
  • Remote control holding register


Package Included :


  • 1 xSN74HC595N 74HC595
