Description

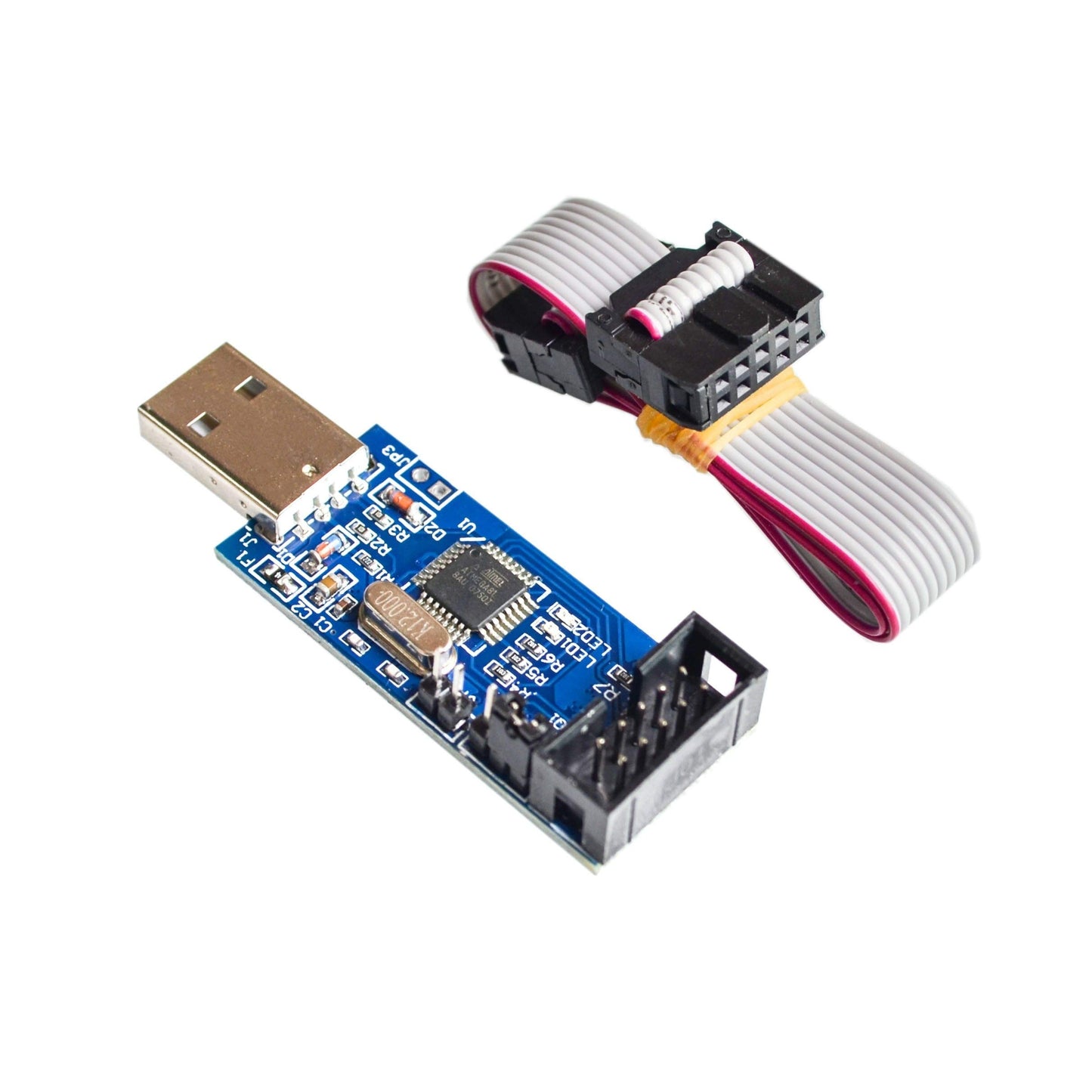

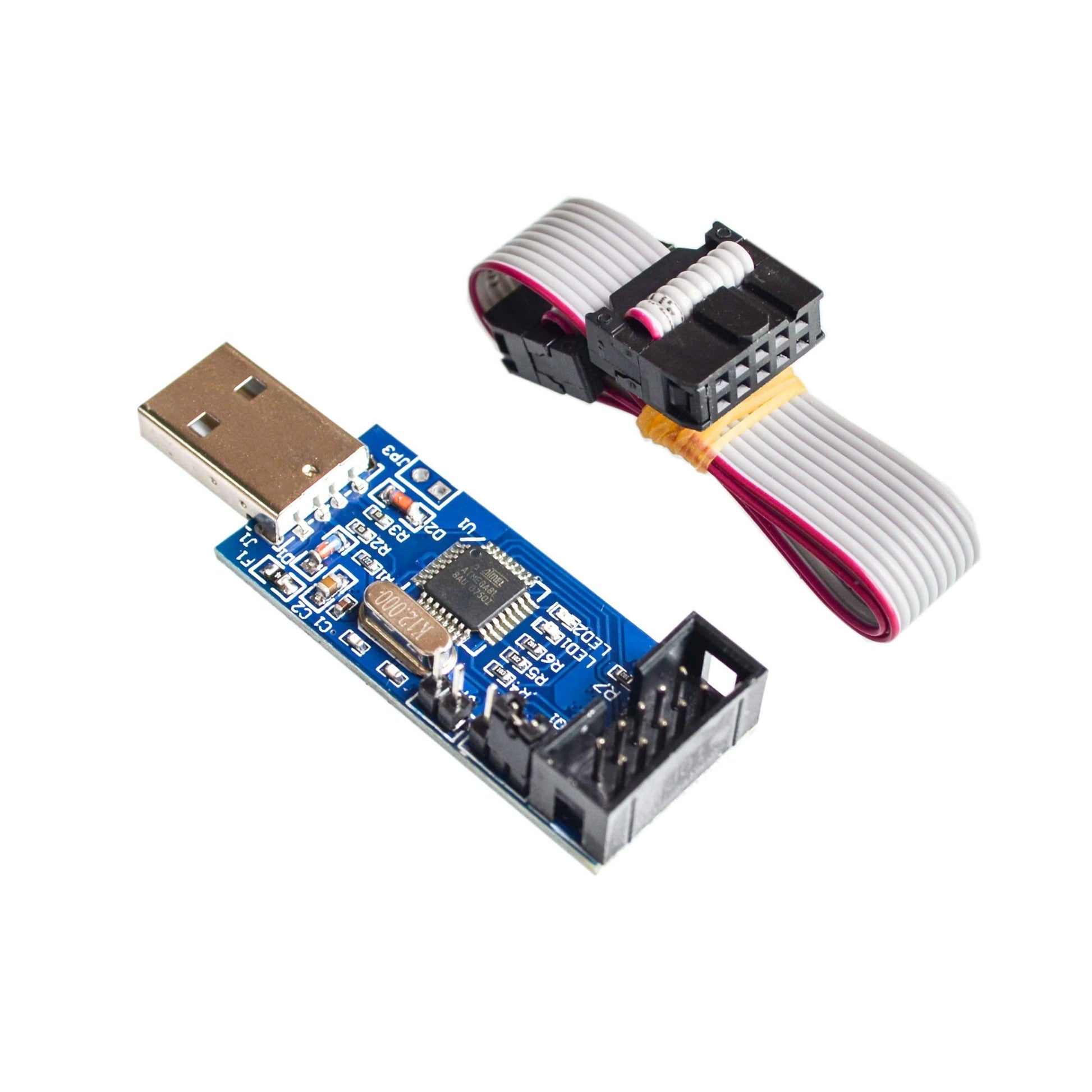

The SBASP USBISP AVR Programmer is a USB interface that allows you to program AVR microcontrollers on your computer. It works with Windows 7 64-bit systems and comes with a 60-cm cable. The programmer supports AVR microcontrollers such as the ATMEGA8 and ATMEGA128. It also supports programming programs such as WinAVR and AVRDUDE. To use the programmer with your Windows 7 64-bit system, you will need to download the appropriate drivers for your specific programmer model and the microcontroller you wish to program.Â
Features
The USB interface can provide a 5V power supply for the downloader and the target board. We add a 500 mA polyswitch to prevent damage to the computer USB port. When the output current is greater than 500 mA (overcurrent or short circuit), the PolySwitch will partition immediately to protect the computer motherboard! When short circuit faults are removed, the polyswitch will automatically return to a normal state, and the programmer can continue to use it normally.
Supported chip list
List of supported chips :
51 Series: AT89S51, AT89S52, AT89S53, AT89S8252
AVR Series: ATTiny12 (L), ATTiny13 (V), ATTiny15 (L), ATTiny24 (V), ATTiny25 (V), ATTiny26 (L), ATTiny2313 (V), ATTiny44 (V), ATTiny45 (V), ATTiny84 (V), ATTiny85 (V), AT90S2313 (L), AT90S2323 (L), AT90S2343 (L), AT90S1200 (L), AT90S8515 (L), AT90S8535 (L), ATMEGA48 (V), ATMEGA8 (L), ATMEGA88 (V), ATMEGA8515 (L), ATMEGA8535 (L), ATMEGA16 (L), ATMEGA162 (V), ATMEGA163 (L), ATMEGA164 (V), ATMEGA165 (V), ATMEGA168 (V), ATMEGA169 (V), ATMEGA169P (V), ATMEGA32 (L), ATMEGA324 (V), ATMEGA325 (V), ATMEGA3250 (V), ATMEGA329 (V), ATMEGA3290 (V), ATMEGA64 (L), ATMEGA640 (V), ATMEGA644 (V), ATMEGA645 (V), ATMEGA6450 (V), ATMEGA649 (V), ATMEGA6490 (V), ATMEGA128 (L), ATMEGA1280 (V), ATMEGA1281 (V), ATMEGA2560 (V), ATMEGA2561 (V), AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2 (B) , AT90PWM3 (B), etc.Â
Package includes
- 1 x USBASP Programmer
- 1 x 10-pin cable
