Description

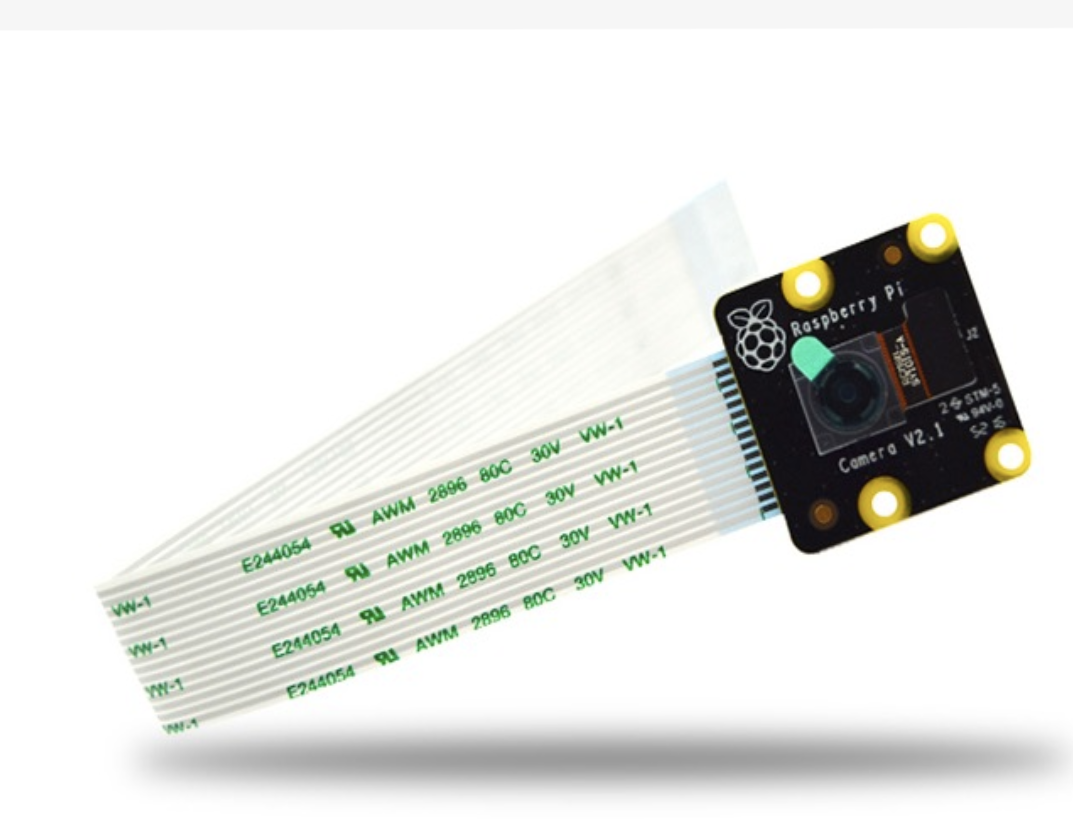

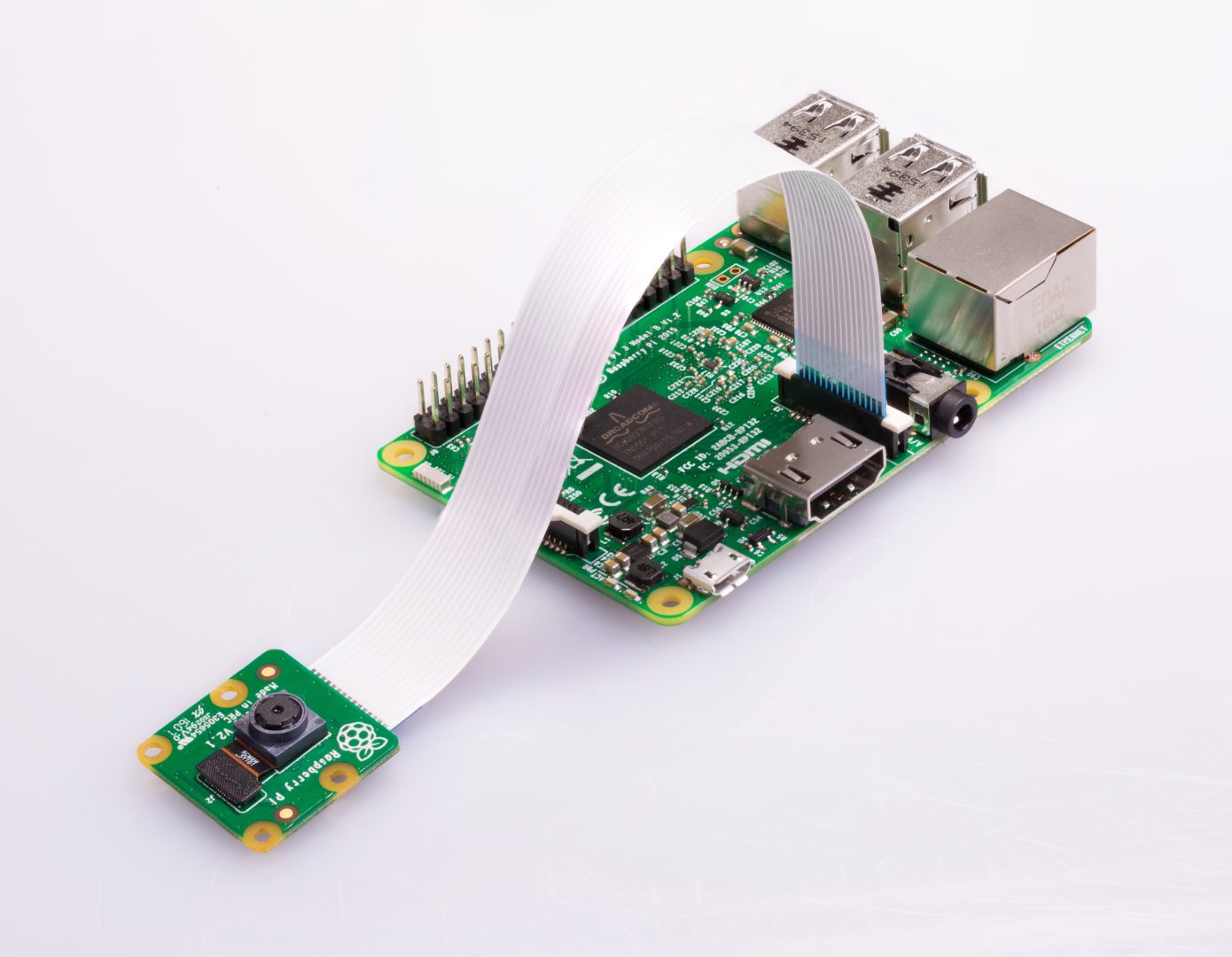

The Raspberry Pi board camera module is single channel, 8 megapixels, and supports CSI-2 bus interface. It has a maximum frame rate capture of 30fps. This high definition (HD) camera board connects to any Raspberry Pi or compute module, allowing you to create HD videos and still photographs. It utilizes the IMX219PQ image sensor from Sony, which offers high-speed video imaging and high sensitivity. It also offers reduced image contamination, such as fixed pattern noise and smearing. To connect the camera module to pi, a 15cm ribbon cable is attached to the module slots straight into your Pi Camera Serial Interface port (CSI). Once connected, we can access the camera board via the Multi-Media Abstraction Layer (MMAL) or the Video for Linux (V4L) APIs.
Features and Benefits
- 15-pin ribbon cable
- The picture resolution is still 3280 x 2464
- Automatic 50/60Hz luminance detection
- Automatic black level calibration
- Automatic exposure control, white balance and band filter
- High data capability
- High-quality imagery
- Operating temperature range between -20°C and 60°C
- Supports 1080p, 720p60 and VGA90
Applications
- Home security
- Ideal for capturing HD videos and still photographs
- Wildlife watching
Package Includes
- 1 x Original  8MP Raspberry Pi Camera
