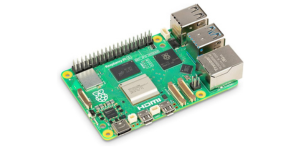

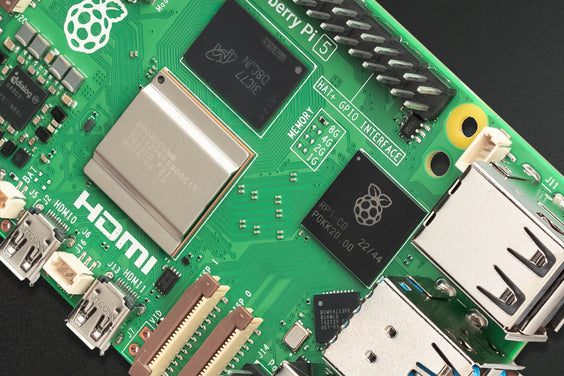

Raspberry Pi Fifth Flagship Development Computer:Â Feature a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, using silicon built in-house at Raspberry Pi, offering a step change in peripheral performance and functionality
Significant Graphics Capability:Â Equip an 800MHz VideoCore VII GPU and deliver better graphics performance, suitable for multimedia applications, gaming, and graphics-intensive tasks
State-of-the-Art Camera Support:Â Built with the dedicated dual 4-lane 1Gbps MIPI DSI/CSI connectors, tripling total bandwidth, and supporting any combination of up to two cameras or displays
Versatile Connectivities:Â Offer Gigabit Ethernet and a PCIe interface, along with dual-band Wi-Fi and Bluetooth 5.0/BLE wireless capability
Enhanced Peripherals:Â Provide 1x UART connector, 1x microSD card slot supporting high-speed, 2x USB.0 3.0 supporting sync 5Gbps operation, 2x USB2.0 ports ports, 1x RTC, 2x 4Kp60 display output with HDR support
APPLICATIONS
PC alternatives
Multimedia Center
Console
Education and Learning Tools
Smart Home Systems
Sensor Network
Remote Monitoring
Industrial Automation
Embedded Systems Development
SPECIFICATION
CPU: 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache
GPU: VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
Display Output: Dual 4Kp60 HDMI® display output with HDR support
Video Decoder: 4Kp60 HEVC decoder
RAM: 4GB LPDDR4X-4267 SDRAM
Wi-Fi: Dual-band 802.11ac Wi-Fi®
Bluetooth: Bluetooth 5.0/ Bluetooth Low Energy (BLE)
Storage: microSD card slot, with support for high-speed SDR104 mode
Power Button: On/Off included
USB Ports:
   2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
   2 × USB 2.0 ports
Ethernet: Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
Camera/Display: 2 × 4-lane MIPI camera/display transceivers
PCIe Interface: PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
Power: 5V/5A DC power via USB-C, with Power Delivery support
Raspberry Pi Header: Raspberry Pi standard 40-pin header
Real-time Clock (RTC): Powered from external battery
