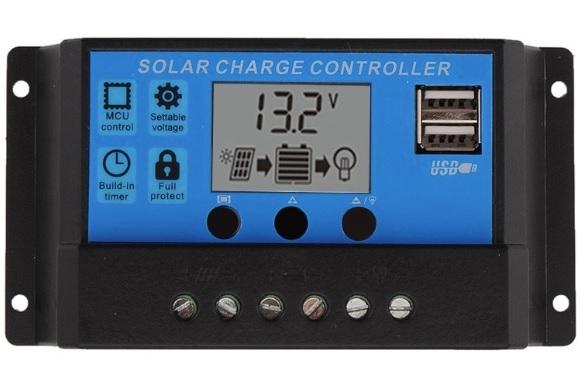

D3A PWM 20A Dual USB Solar Panel Battery Regulator Charge Controller 12V 24V

Description

PWM stands for Pulse Width Modulation, which is a technique used to control the power supplied to an electronic device. In the context of renewable energy, PWM is commonly used in solar panels and battery regulators to optimize the charging and discharging of batteries. A dual USB solar panel battery regulator charge controller is a device that allows you to charge two USB-powered devices simultaneously from a solar panel. It typically converts the 12V or 24V output of the solar panel into a lower voltage that can be safely charged by USB devices. This allows you to charge your phone or other electronic devices directly from the sun.

Specifications

• Rated Voltage: 12V 24V Auto
• Application: Solar System Controller
• Current: 10A/20A/30A
　
• With a timer and light sensor,it could work for a solar light system.
• Only for off-grid PV solar systems.
• For 10A 12V Pv System: 120W Solar Panel, 12V Lead-acid Battery, for Max input Voltage
• For 10A 24V Pv System: 240W Solar Panel, 24V Lead-acid Battery, 42V for Max input Voltage
　
• Size: 133x70x32mm/5.2x2.7x1.3"

Safety Instructions

1. Make sure your battery has enough voltage for the controller to recognize the battery type before the first installation.
2. The battery cable should be as short as possible to minimize loss.
3. The regulator is only suitable for lead-acid batteries: OPEN, AGM, and GEL
It is not suited for nickel metal hydride, lithium ions, or other batteries.
4. The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

Features

• Build-in industrial microcontroller.
• One-key setting, digital display, auto memory function.
• Fully 4-stage PWM charge management.
• Build-in short-circuit protections, open-circuit protections, reverse protections, and over-load protections
• Dual mosfet Reverse current protections ,low heat production.

System Connection

1. Connect the battery to the charge regulator (plus and minus). it will show 1 ,if it detects a 12V battery, 2 if it detects a 24V battery.

2. Connect the photovoltaic module to the regulator (plus and minus).

3. Connect the consumer to the charge regulator (plus and minus).

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!

Note:

Please allow a 0–2 mm error due to manual measurement. Please make sure you do not mind before you bid.

Package Includes

• 1x Solar panel Battery Charge Controller
• 1 x User Manual
