Blue PCB Electronics

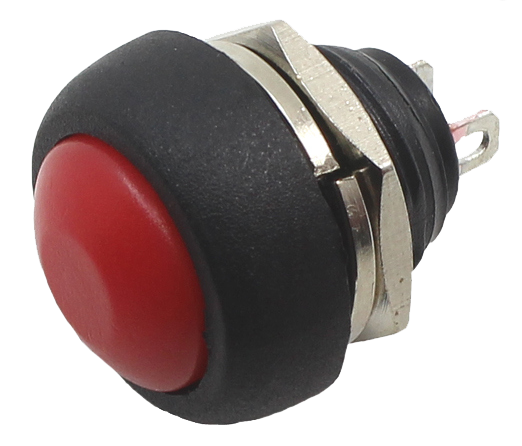

1D16 12MM electric domed head momentary push button

1D16 12MM electric domed head momentary push button

Regular price Dhs. 8.00
Regular price Sale price Dhs. 8.00
Sale Sold out
View full details

PBS-33B 12mm  Momentary Push Button

Distinctive Features:

The Anti vandal switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Variety of Material

1,000,000 cycles momentary

Anti-Vandal IK09/ Sealed IP65

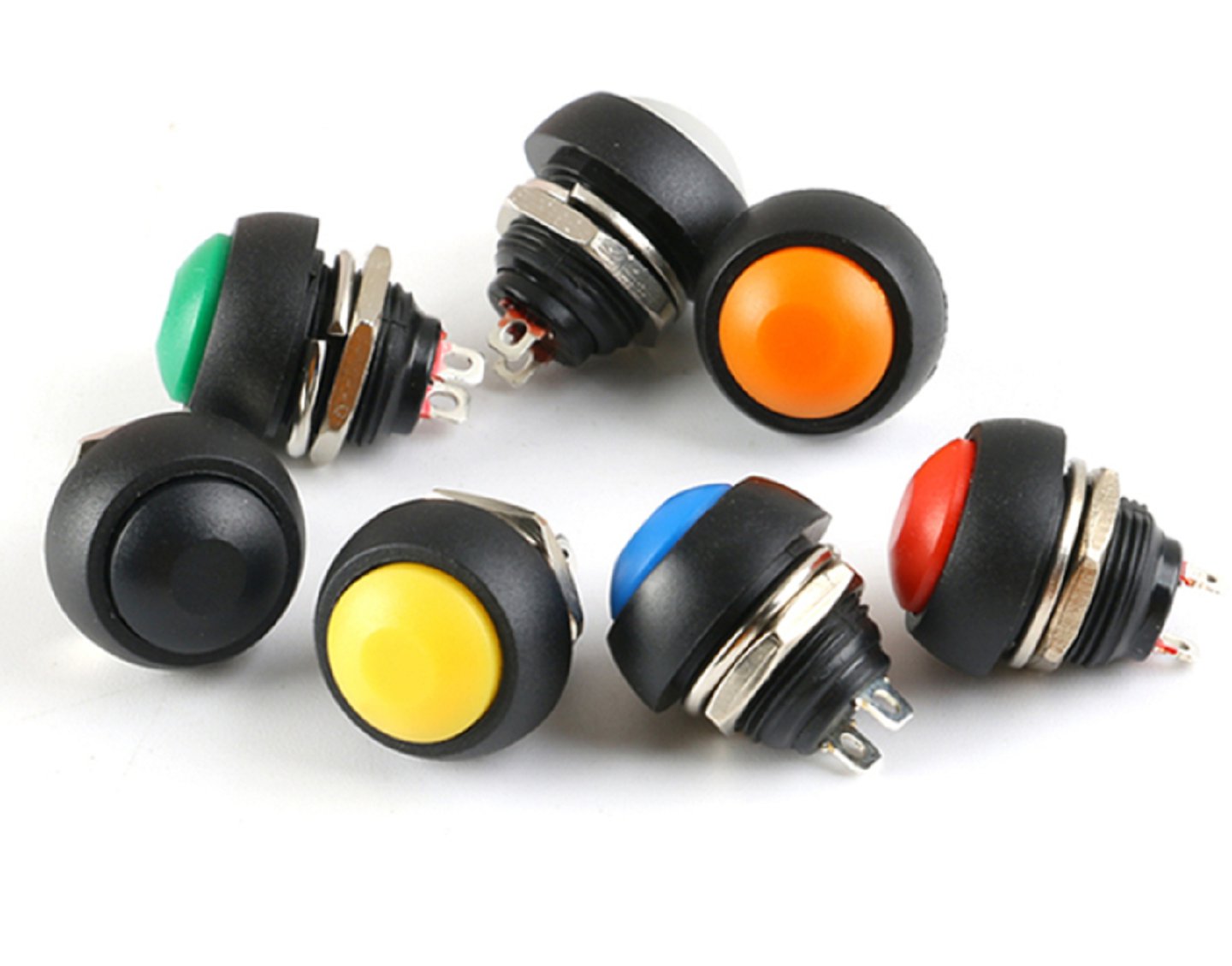

Square and round versions available

Functions:

NO Function

Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.

Model

V12-B-A



Terminal Type

Screw Terminals



Switching

No.1



Max. Switch Rating

2A/48VDC



Contact Resistance

≤50mΩ



Insulation Resistance

≥1000mΩ



Dielectric Strengh

2000VAC



Operation TEMP.

-20°c ~ +55°c



Mechanical Life

1, 000, 000 cycles



Electrical Life

200, 000 cycles



Contact Material

Silver Alloy



Panel Thickness

1~6mm



Torque

5~14Nm



Operation Pressure

5N



IP Degree

IP65



Material

Button

PBT



Body

Zn-Al alloy



Base

PBT



Head Color
