1B7 Nokia 5110 LCD display

1B7 Nokia 5110 LCD display

Regular price Dhs. 25.00
Regular price Sale price Dhs. 25.00
Sale Sold out
View full details


•  LIGHT linked with GND, the backlight to be lit.

•  Need you to compress the screen and PCB tighter, might got loose after the delivery.

•  Use a 3.3V controller, otherwise the display could be quite vague.

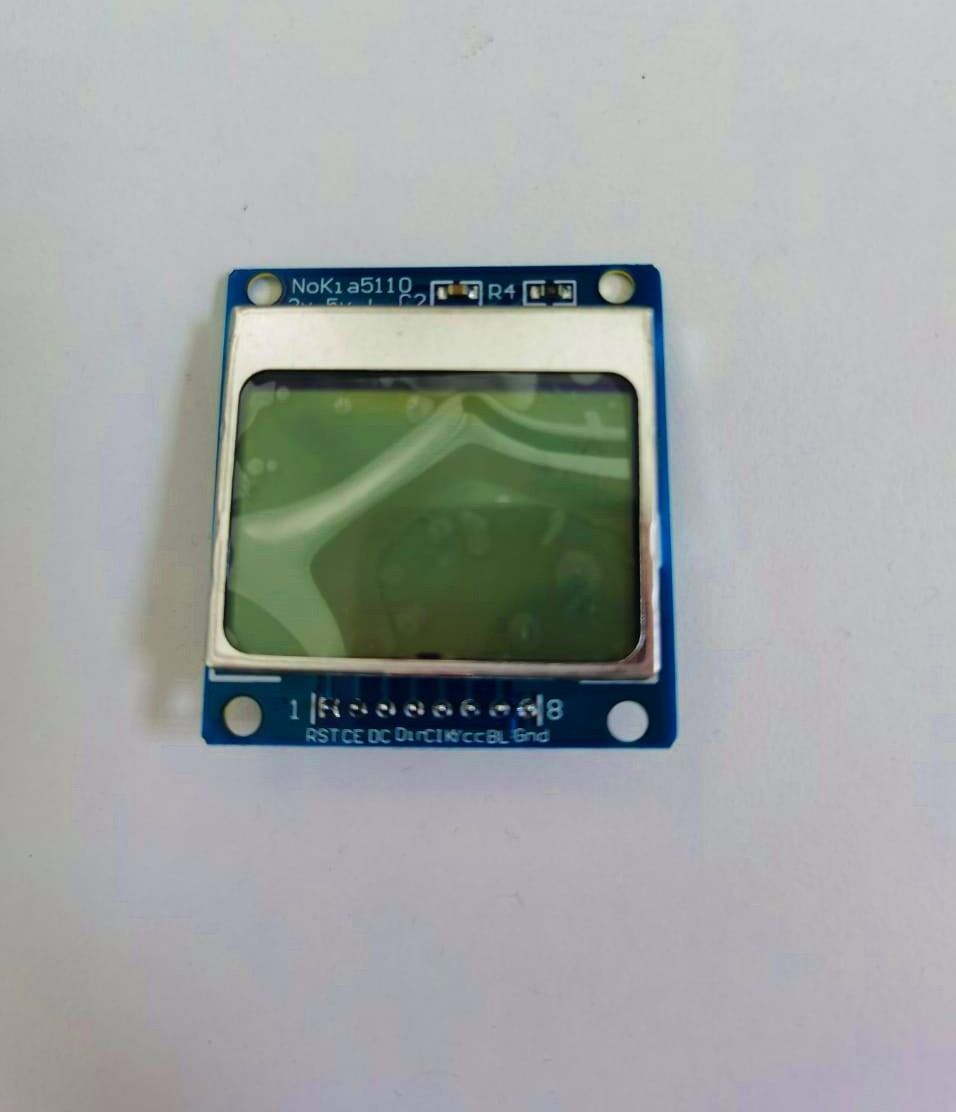

•  LCD5110 Module:

•  Power supply voltage: 2.7V-3.3V,5V is OK,but part of the screen becomes black when tested

•  Data interface level: 2.7-5V

•  Backlight power supply voltage: highest 3.3V

•  Module size: 43.6mm x 43.1mm(width X height)

•  Installation diameter: 2mm

•  Backlight: White

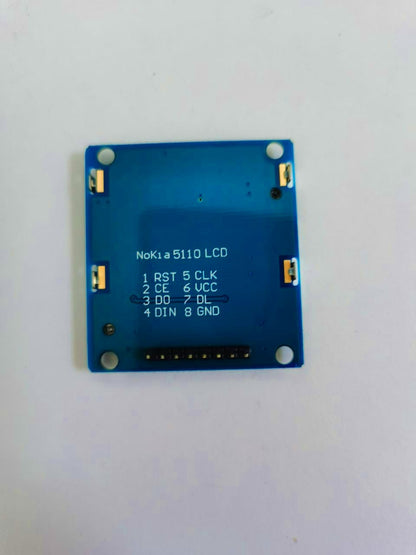

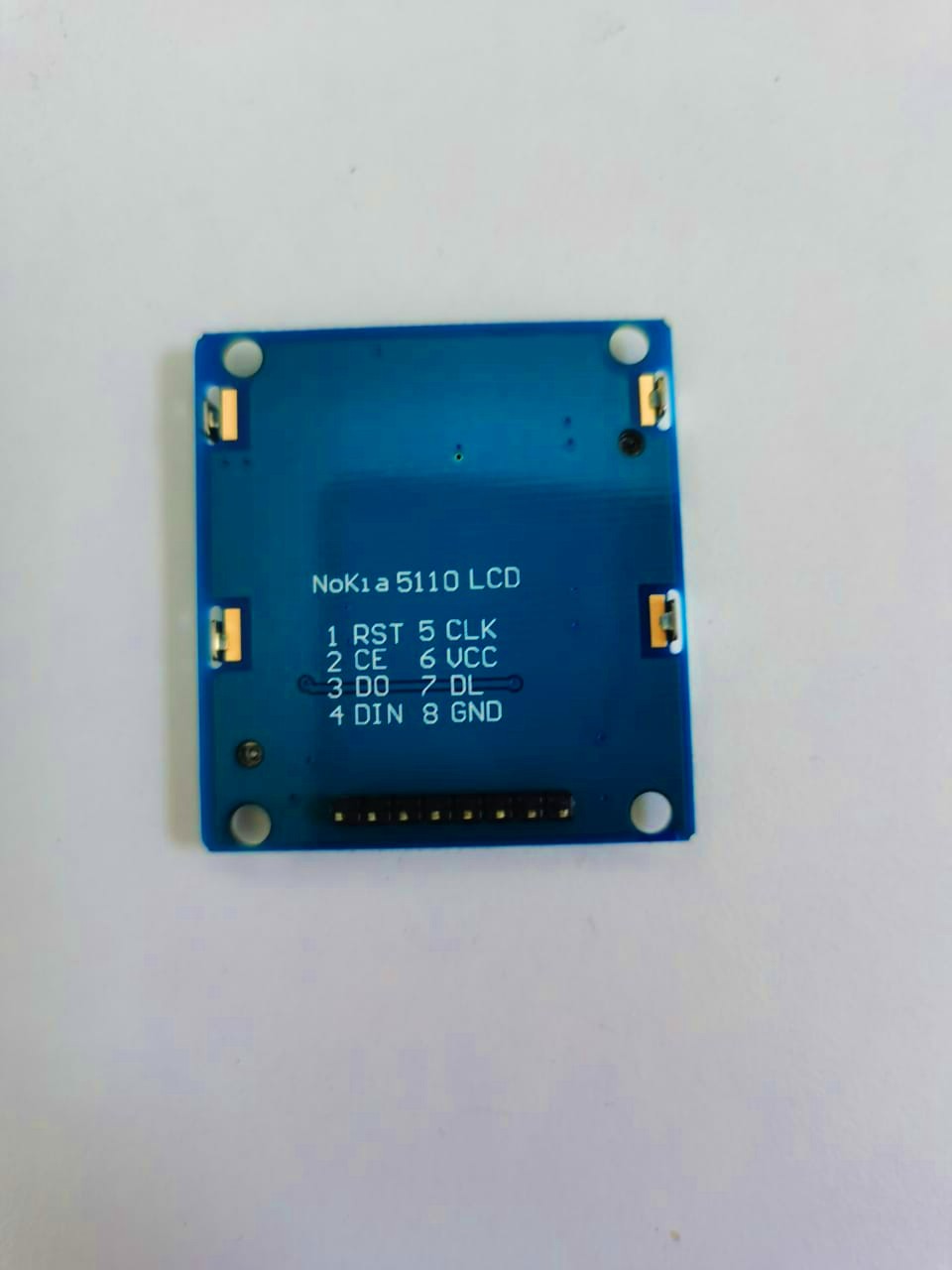

Pin Definition

•  RST--------- reset?

•  CE------------chip selection?

•  DC-----------data/commands choice?

•  DIN-----------serial data line?

•  CLK------------serial Clock Spee

•  3.3V------------VCC?

•  LIGHT--------- backlight control terminal?

GND-----------power negative
