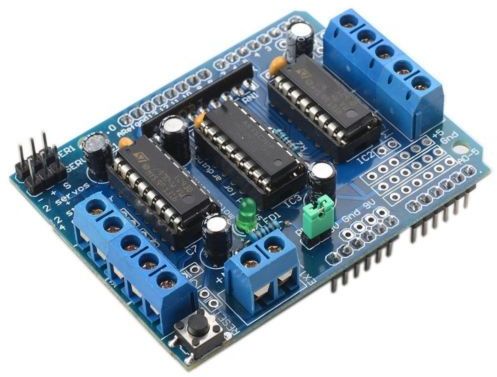

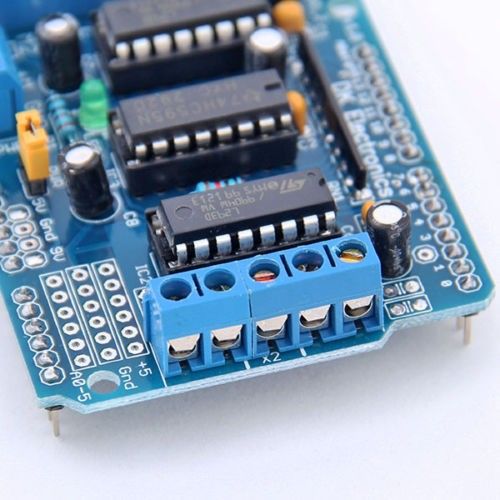

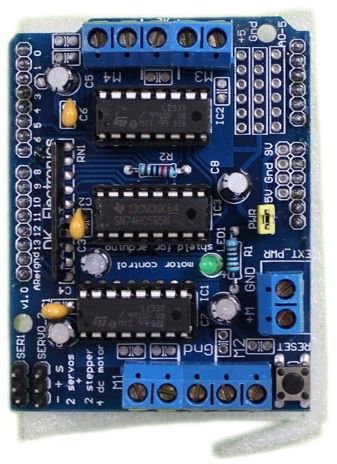

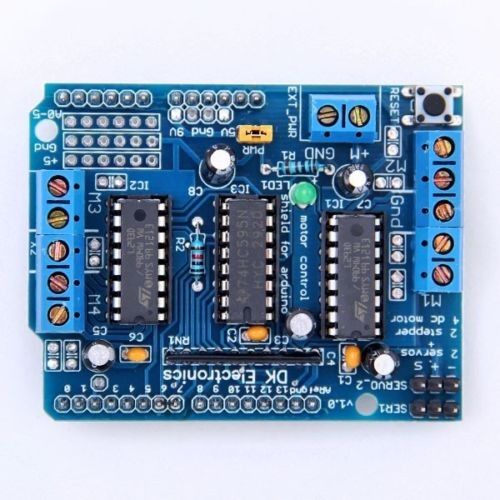

5A6 Motor Drive Shield Expansion Board L293D For Arduino Mega2560 UNO

DESCRIPTION

L293D IS A MONOLITHIC INTEGRATED, HIGH VOLTAGE, HIGH CURRENT, 4-CHANNEL DRIVER.BASICALLY THIS MEANS USING THIS CHIP YOU CAN USE DC MOTORS AND POWER SUPPLIES OF UP TO 36 VOLTS, THATS SOME PRETTY BIG MOTORS AND THE CHIP CAN SUPPLY A MAXIMUM CURRENT OF 600MA PER CHANNEL, THE L293D CHIP IS ALSO WHAT’S KNOWN AS A TYPE OF H-BRIDGE. THE H-BRIDGE IS TYPICALLY AN ELECTRICAL CIRCUIT THAT ENABLES A VOLTAGE TO BE APPLIED ACROSS A LOAD IN EITHER DIRECTION TO AN OUTPUT, E.G. MOTOR.



- 2 INTERFACE FOR 5V SERVO CONNECTED TO THE HIGH-RESOLUTION DEDICATED TIMER - NO JITTER!



- CAN DRIVE 4 DC MOTORS OR 2 STEPPER MOTORS OR 2 SERVO



- UP TO 4 BI-DIRECTIONAL DC MOTORS WITH INDIVIDUAL 8-BIT SPEED SELECTION



- UP TO 2 STEPPER MOTORS (UNIPOLAR OR BIPOLAR) WITH SINGLE COIL, DOUBLE COIL OR INTERLEAVED STEPPING.



- 4 H-BRIDGES: PER BRIDGE PROVIDES 0.6A (1.2A PEAK CURRENT) WITH THERMAL PROTECTION, CAN RUN MOTORS ON 4.5V TO 36V DC



- PULL DOWN RESISTORS KEEP MOTORS DISABLED DURING POWER-UP



- RESET BUTTON



- 2 EXTERNAL TERMINAL POWER INTERFACE, FOR SEPERATE LOGIC/MOTOR SUPPLIES



- Tested compatible for UNO, Mega, Diecimila & Duemilanove

• 1 x Motor Drive Shield Expansion Board L293D For Arduino Duemilanove Mega2560 UNO
