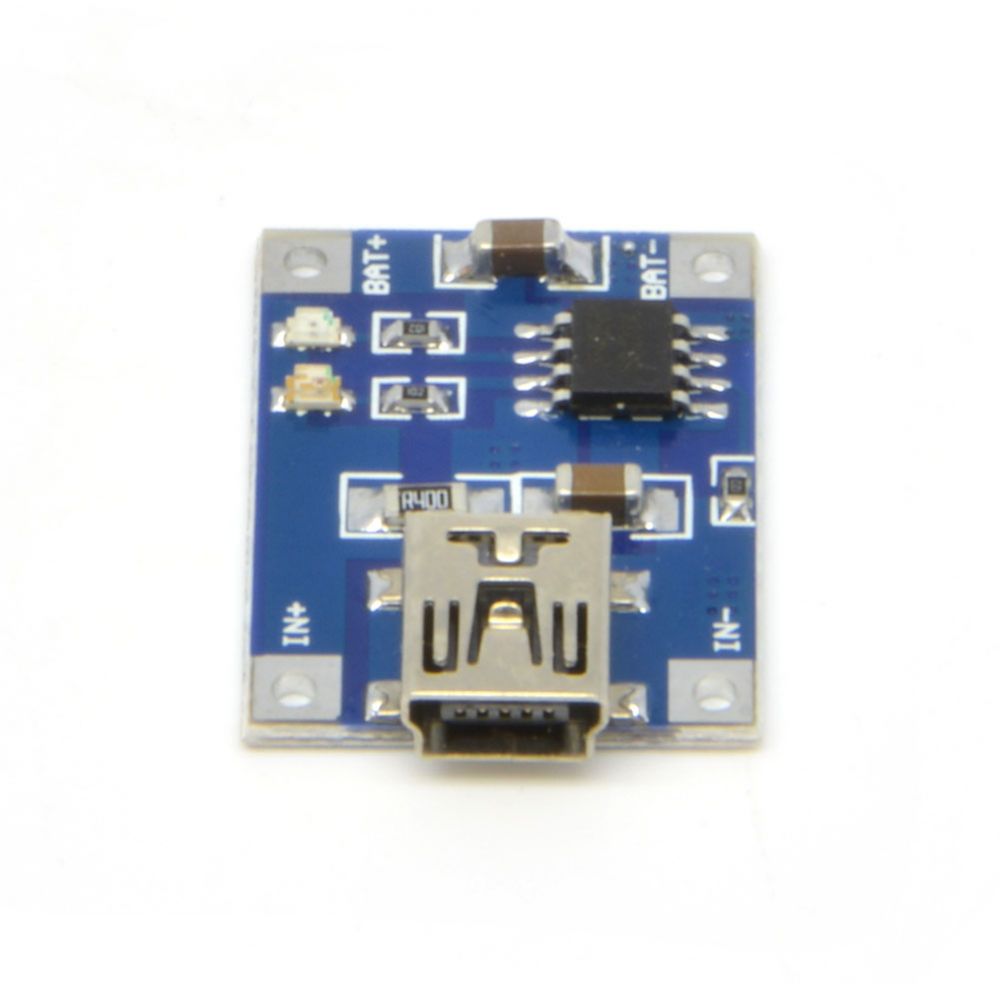

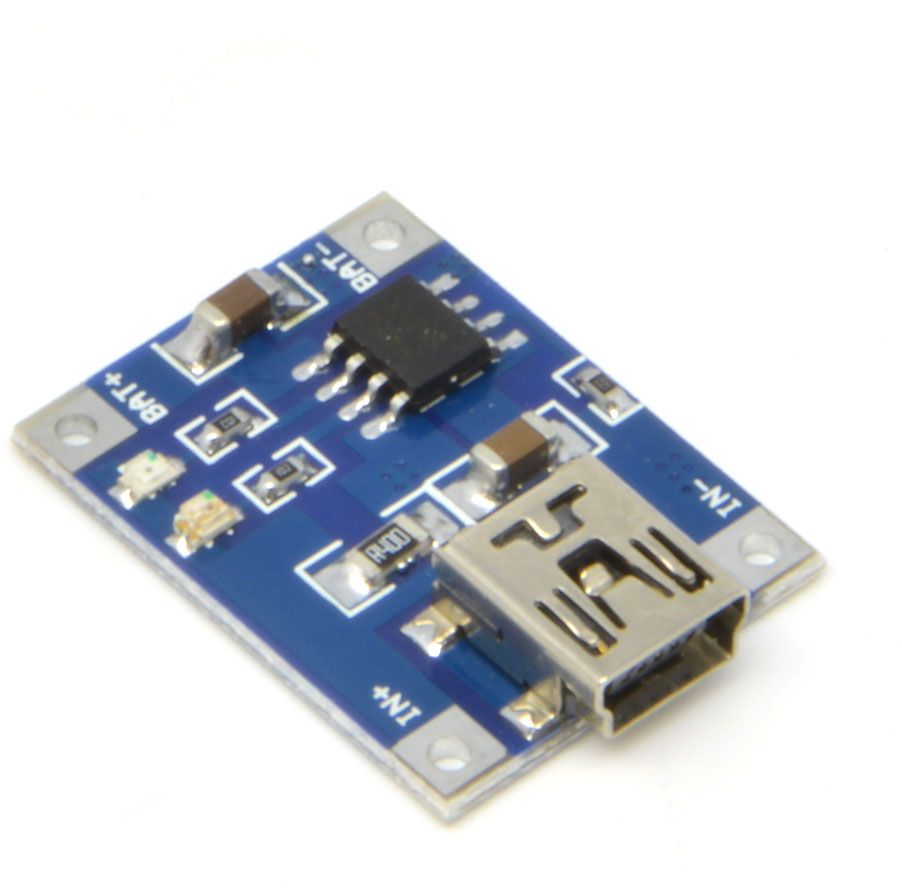

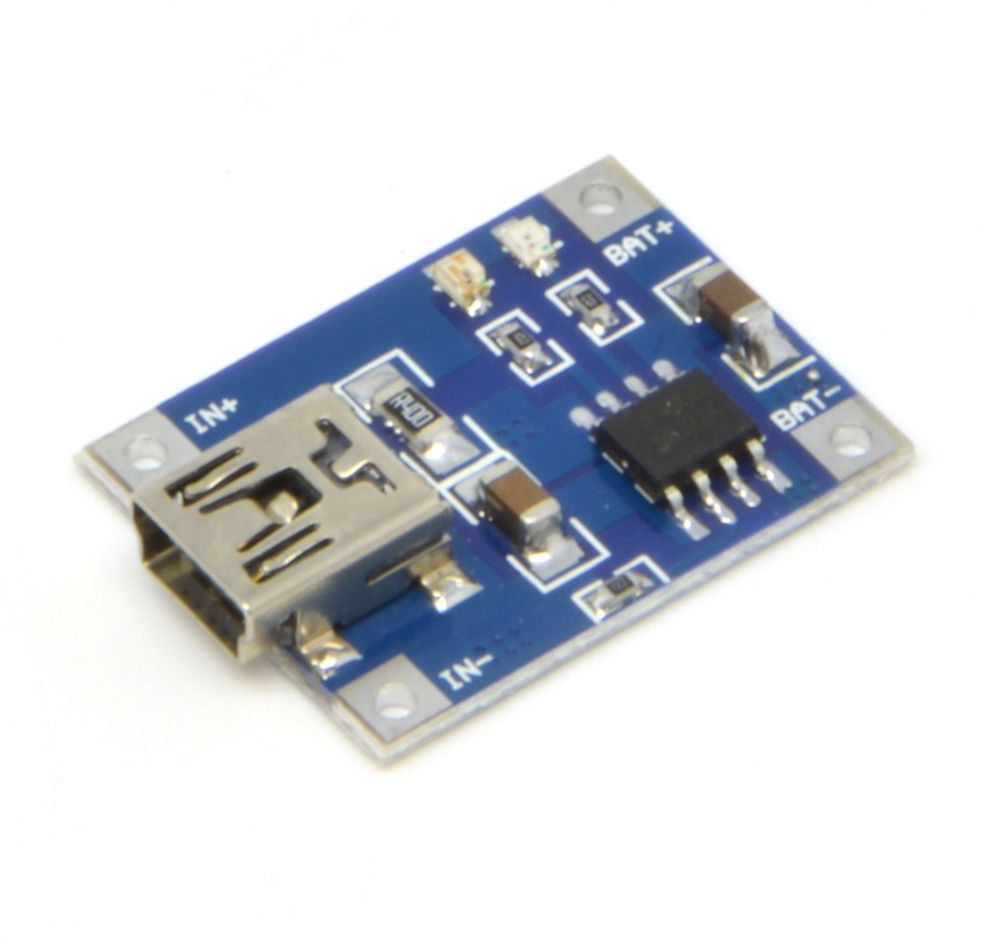

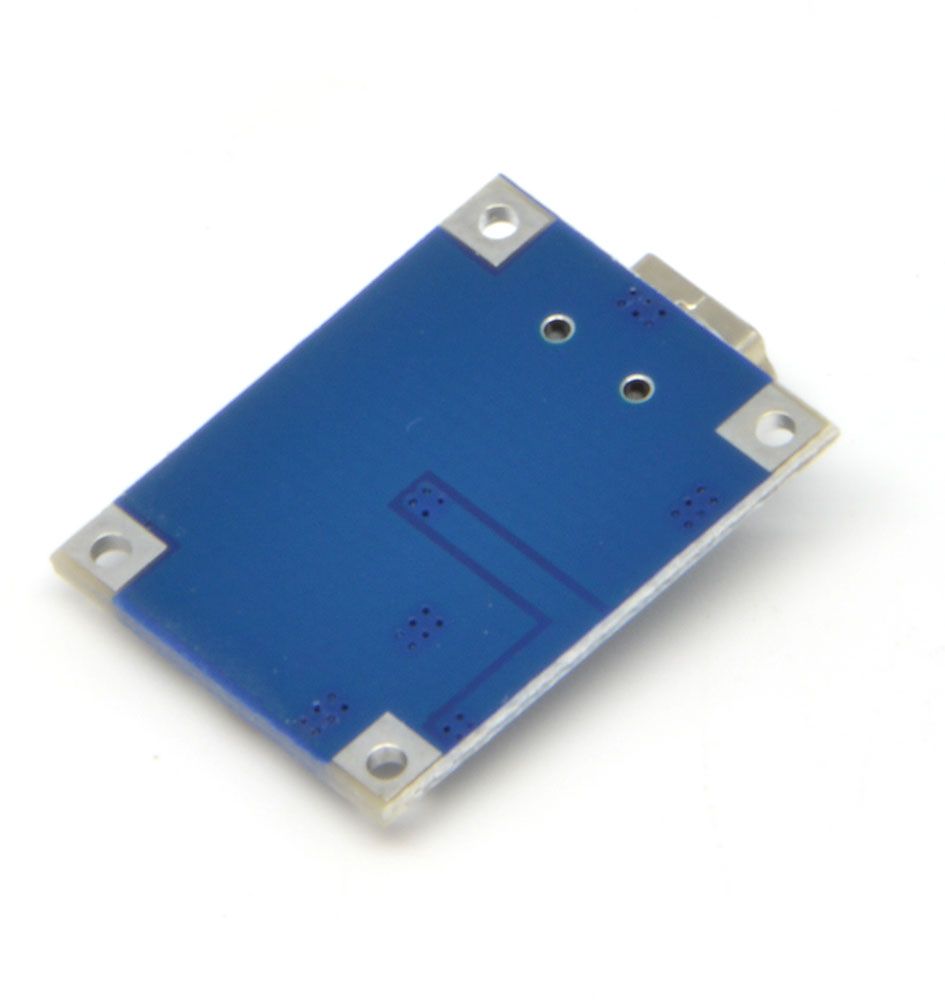

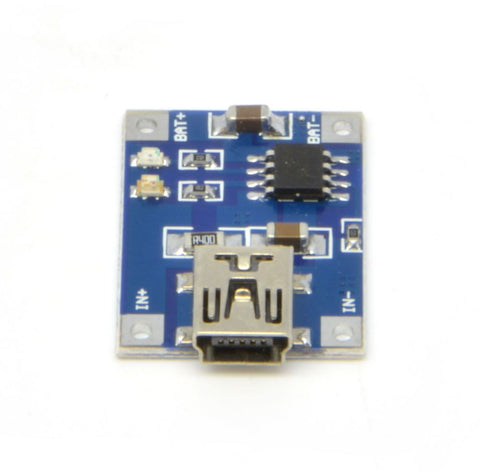

1B12A Mini 5v USB 1A Lithium Battery Charging Board Charging Board

1B12A Mini 5v USB 1A Lithium Battery Charging Board Charging Board

Regular price Dhs. 15.00
Regular price Dhs. 20.00 Sale price Dhs. 15.00
Sale Sold out
View full details

Description

1. Charge module- Linear charging.
2. Current- 1A adjustable.

3. Charge precision- 1.5%.
4. Input voltage- 4.5V-5.5V.
5. Full charge voltage- 4.2V.
6. Led indicator- red is charging blue is full charged.
7. Input interface- mini USB.
8. Work temperature- -10℃ to 85℃.
9. Inversed polarity- NO.



NOTE:

  • Ampere meter can only be connected to 5v input end of the module.
  • It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.
  • The connection wire should not be too thick.
  • Make sure the connect point is good.
  • If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip.
  • NO Reveral polarity


Package Includes

  • 1 x 5V Mini USB 1A Lithium Battery Charging Board Charger Module IN 4.5V-5.5vÂ
