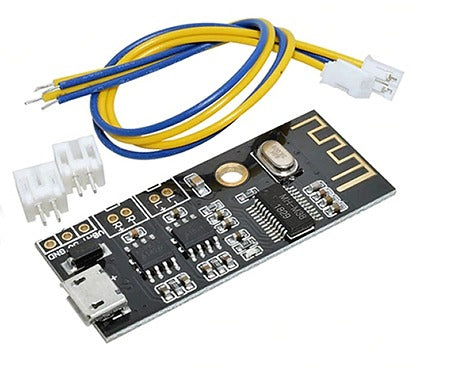

2C30 MH-M38 Wireless Bluetooth MP3 Audio Receiver board BLT 4.2 mp3 lossless decoder

2C30 MH-M38 Wireless Bluetooth MP3 Audio Receiver board BLT 4.2 mp3 lossless decoder

Regular price Dhs. 40.00
Regular price Sale price Dhs. 40.00
Sale Sold out
View full details

Description

The MH-M38 Bluetooth MP3 Audio Receiver Board is a device that allows you to play MP3 files wirelessly from your phone or other device. It decodes lossless MP3 files, ensuring that the audio is of the highest quality possible. BLT 4.2 is the standard used for Bluetooth connections, which allows the receiver to connect quickly and easily to your phone or other device.

Specifications

Function / model The M18 (Product ID: 1476791 ) M28 (this article) M38 (Product ID: 1486746)
Small power supply × √ √
Headphone audio jack × √ ×
Built-in amplifier × × √ (5W + 5W)
Lithium battery powered √ √ √
Support USB sound card, free drive × × √
Memory size / adjustment √ × ×
Mute interface interface √ × ×
Extension of a button √ × ×
Bluetooth version bluetooch V4.2
Bluetooth support protocol HFPV1.7 ، A2DPV1.2 ، AVRCPV1.5 ، AVCTPV1.2 ، AVDTPV1.2
Support form Support WAV / WMA / FLAC / APE / MP3 decoding, stereo two-channel output
Operating voltage 5V / 3.7V-4.2V
Broadcast is not connected to the case 5.5MA
The status of work contact 20MA
deep sleep 3UA
After transmission 20 meters (empty or low interference environment)
Operating temperature -40 ° C to + 85 ° C
sensitivity -87dbm

Pinout



PIN

Description

1

5V

5V

2

GND

GND

3

VBAT

lithium battery 3.7V power supply3.7V-4.2V

4

L

Left channel

5

R

Right channel

Features

1. Power supply: You can directly use the Micro USB Android cable (5V) for direct power supply, or you can also connect a 5V power supply or a 3.7V lithium battery (as shown below). Note that the 5V and 3.7V power supply interfaces are different. The 5V voltage is connected to 5V and GND, and the 3.7V lithium battery is connected to VBAT and GND.

The maximum operating current is 5 V2A. It is recommended to use a regulated 5V2A power supply for better sound quality.

2. Support USB sound cards and free drives (plug and play). Connect the module to the computer with a USB cable, and the computer can play music through the module amplifier output.

Audio output: output left and right stereo audio signals, which can be connected to two 2-8 ohm, 3-5W speakers, and 4 Euro 5W speakers.

3. This product has its own dual 5W power amplifier circuit and must not be connected to another amplifier! The outputs of the two amplifiers may not be connected in parallel, or the negative poles may be connected together; otherwise, the power amplifier chip may be damaged.
