Blue PCB Electronics

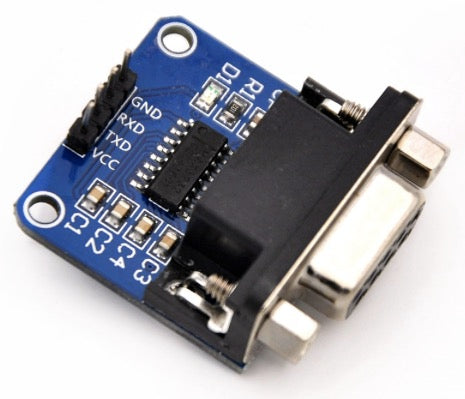

2D8 MAX3232 RS232 to TTL Serial Port Converter Module DB9 Connector MAX232

2D8 MAX3232 RS232 to TTL Serial Port Converter Module DB9 Connector MAX232

Regular price Dhs. 15.00
Regular price Sale price Dhs. 15.00
Sale Sold out
View full details

Description

This RS232 to TTL Serial Interface Module is a board with the MAX3232 transceiver integrated circuit (IC). It facilitates serial communication between TTL and RS232 ports by providing the necessary electrical signal conversion.

These boards usually have a DB9 connector soldered at one end, and four header pins with jumper cables at the other end. The jumper cables enable the user to connect the wires to a breadboard or a microcontroller project board, whilst the DB9 connects directly to a COM port of a computer.

The MAX3232CSE+ IC, which comes in a 16 pin narrow SO package. It requires between 3.0 V to 5.5 V to operate and has two receivers and two transmitters. It has a maximum guaranteed data rate of 120 kbps, and the circuitry requires four 0.1µF charge-pump support capacitors. It is also compatible with the famous MAX3232 IC pins. These boards connect to systems with a UART  hence, they work with ATMEL and PIC microcontrollers.

MAX3232 RS232 Serial Port To TTL Converter Module DB9 Connector 5V RS232 to TTL + Female Serial TTL + serial modules / Brush board. This module can be used to the serial port of microcontroller module expand DVD, router, hard drive and other equipment to upgrade.

Datasheet

Features

  1. It is widely used in radio modification, phone flash, XBOX360 flash, GPS, vehicle detection, DVD flash, hard disk repair set-top box upgrade.
  2.  It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, N+-2EC MCU
  3. Pre-assembled compact size board
  4. Suitable for use with most microcontrollers
  5. Operates up to 250 kbit/s

Package Includes:

  • 1 x RS232 to TTL Serial Interface Module

Pinout

  • VCC – Supply voltage in the range from 3.0 V to 5.5 V.
  • GND – System weight.
  • RX – UART interface input line, readout.
  • TX – UART interface output line, sending.
  • CTS – hardware flow control – signals the readiness of data to be sent.
  • RTS – hardware flow control – query for the possibility of sending data.
  • RS232 connector – DB9 socket
