LILYGO® TTGO T-SIM7600 ESP32 LTE GPS GSM Cat4/1 4G Development Board SIM7600G-H

LILYGO® TTGO T-SIM7600 ESP32 LTE GPS GSM Cat4/1 4G Development Board SIM7600G-H

Regular price Dhs. 600.00
Regular price Sale price Dhs. 600.00
Sale Sold out
View full details

T-SIM7600G-H R2 / T-SIM7600E-H Introduce

  • T-SIM7600 is a wireless networking module with WIFI/Bluetooth/4G LTE CAT4 GPS.
  • T-SIM7600X-H is ten times faster than T-SIM7600X's Download link (DL) and Upload Link (UL); LTE (Mbps) is optimized from 10(DL)/5(UL) to 150(DL)/ 50(UL)

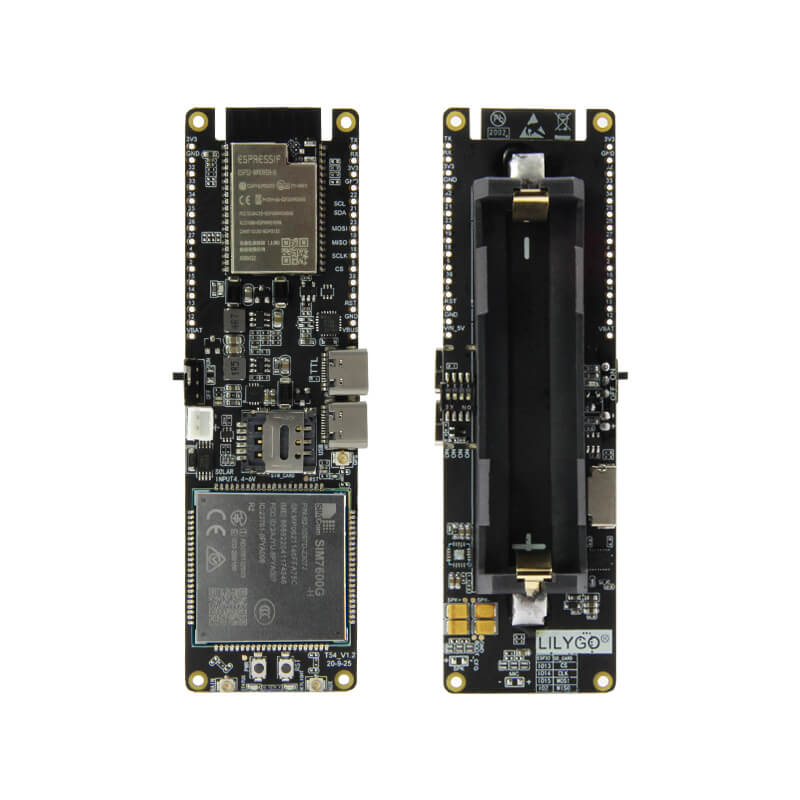

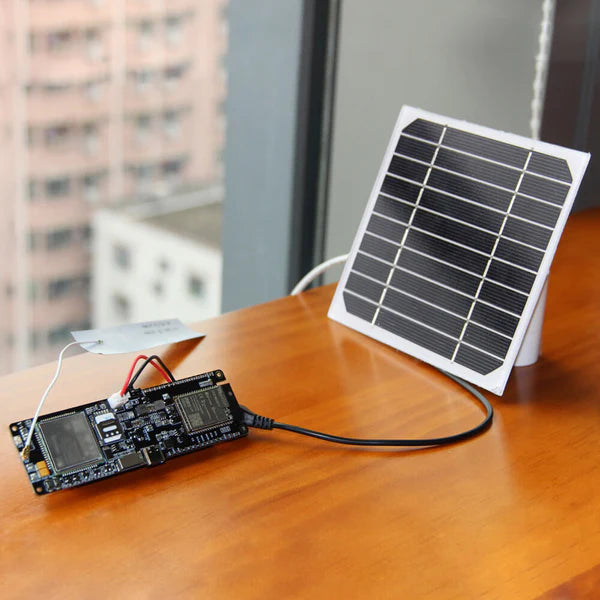

  • On this basis, we integrate a 18650 battery holder and add a solar charging interface.

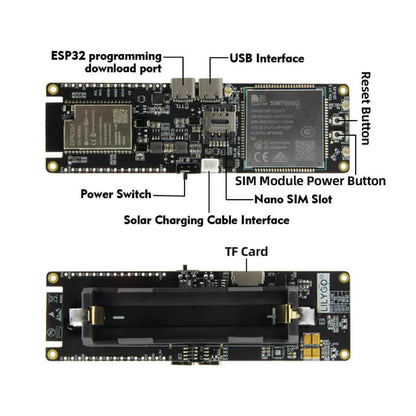

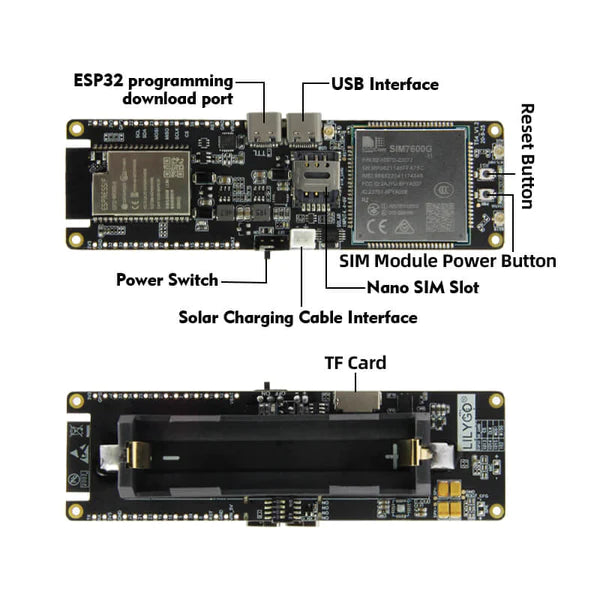

  • In order to facilitate the use of various application scenarios, two T-type-c interfaces are reserved on the development board.
  1. one is used to upload the program to the main control chip
  2. And the other is the SIM7600E-H USB dongle industrial network card interface. It can be connected to a computer via a USB cable and configured as a wireless network card.

  1. The battery's positive and negative poles to avoid connecting to the wrong protection, overcharge, and over-discharge protection.
  2. GPS power control reduces power consumption, the lowest reaches 300uA when sleeping.
  3. Replacement of ordinary charging IC with solar charging IC.


Technology Support [Github]

If you need technical support please check the link to find more details.

T-SIM7600X

1. Size

2. Pin Diagram

0.96 Inch OLED

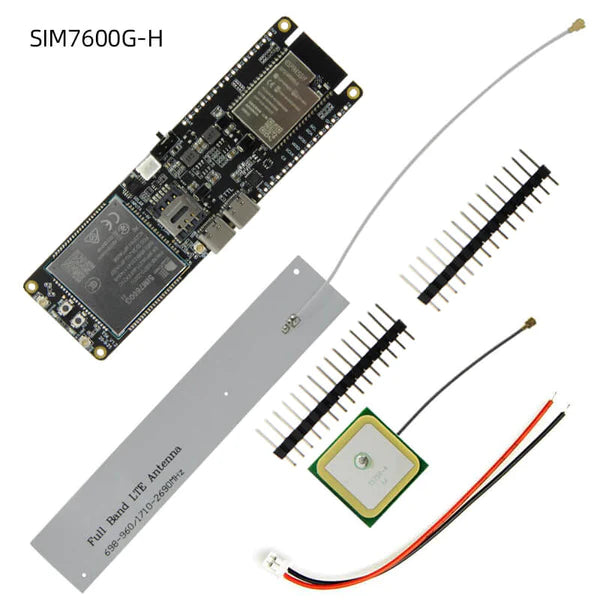

  • 1 X T-SIM7600E-H CH9102

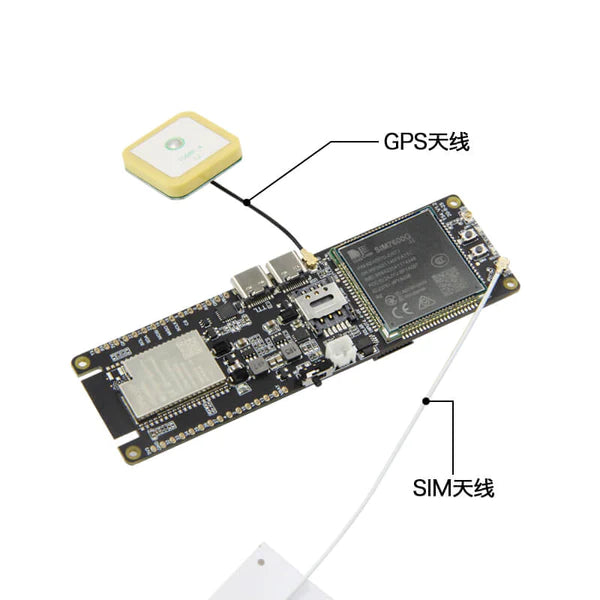

  • 1 X SIM antenna
  • 1 X GPS antenna
  • 1 X Power cable
  • 2 X Pin

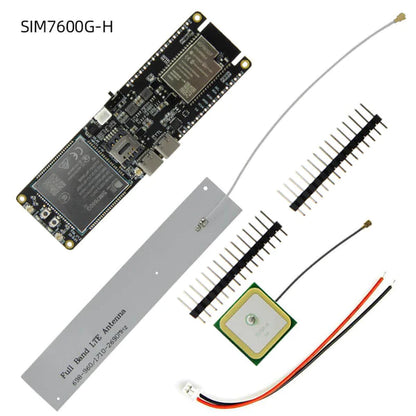

  • 1 X T-SIM7600G-H 2R CH9102
  • 1 X SIM antenna
  • 1 X GPS antenna
  • 1 X Power cable
  • 2 X Pin
