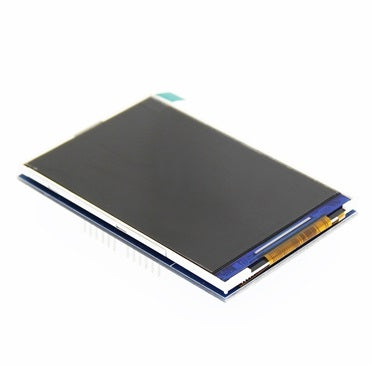

3B000A LCD module 3.5 inch TFT LCD screen 3.5 " for Arduino UNO R3 Board and support mega 2560 R3

3B000A LCD module 3.5 inch TFT LCD screen 3.5 " for Arduino UNO R3 Board and support mega 2560 R3

Regular price Dhs. 85.00
Regular price Sale price Dhs. 85.00
Sale Sold out
View full details

Description

Support Arduino UNO, Arduino Mega2560 and other development board DIPs Without any wiring, all open-source Arduino libraries offer.

The backlight is always on, but you can not control the backlight, backlight is connected to 3.3V

Datasheet

Specifications

  • DC: 5V
  • Driver: ILI9481
  • Bus: 8bit
  • Dots: 320x480
  • Touch: NO

Package included:

1 x 3.5-inch TFT Color Screen Module

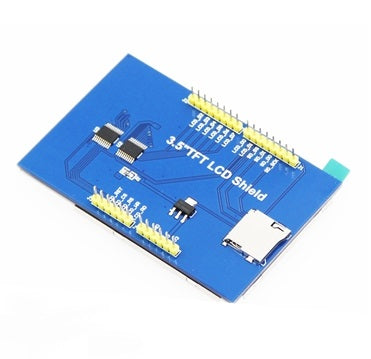

3.5-inch TFT Display Pinout

This module has 20 pins:

  • 5V: Module power supply – 5 V
  • 3.3V: Module power supply – 3.3 V
  • GND: Ground
  • LCD_RST: LCD bus reset signal, low level reset
  • LCD_CS: LCD bus chip select signal, low level enable
  • LCD_RS: LCD bus command / data selection signal, low level: command, high level: data
  • LCD_WR: LCD bus write signal
  • LCD_RD: LCD bus read signal
  • LCD_D0: LCD 8-bit data Bit0
  • LCD_D1: LCD 8-bit data Bit1
  • LCD_D2: LCD 8-bit data Bit2
  • LCD_D3: LCD 8-bit data Bit3
  • LCD_D4: LCD 8-bit data Bit4
  • LCD_D5: LCD 8-bit data Bit5
  • LCD_D6: LCD 8-bit data Bit6
  • LCD_D7: LCD 8-bit data Bit7
  • SD_SS: SD card SPI bus chip select signal, low level enable
  • SD_DI: SD card SPI bus MOSI signal
  • SD_DO: SD card SPI bus MOSI signal
  • SD_SCK: SD card SPI bus clock signal
