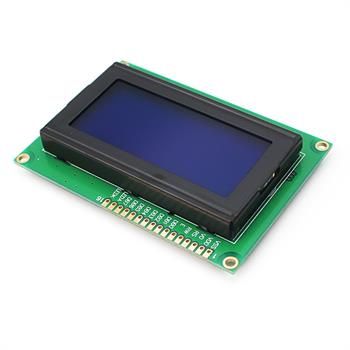

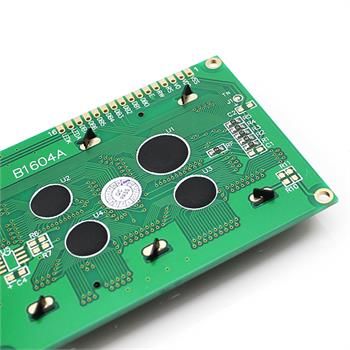

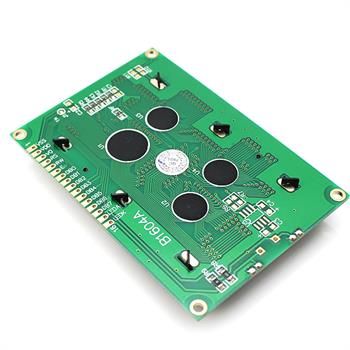

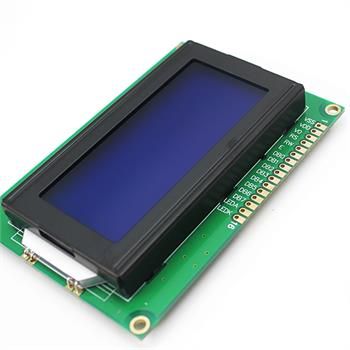

Description
ERM1604SBS-1 is 16 characters wide,4 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,stn- blue lcd negative,white text on the blue color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set.Optional 3.3v or 5v power supply and optional pin header connection.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Specifications
|
Gross Weight (kg) |
0.0800 |
|---|---|
|
Manufacturer |
EastRising |
|
Continuity Supply |
We promise the long term continuity supply for this product no less than 10 years since 2013. |
|
Part Number |
ERM1604SBS-1 |
|
Display Format |
16x4 Character |
|
Interface |
6800 4-bit Parallel , 6800 8-bit Parallel |
|
IC or Equivalent |
AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 |
|
Appearance |
White on Blue |
|
Diagonal Size |
No |
|
Connection |
Pin Header |
|
Outline Dimension |
87.0(W)x60.0(H)x12.5(T)mm |
|
Visual Area |
61.70x25.20mm |
|
Active Area |
56.20x20.80mm |
|
Character Size |
2.95x4.75mm |
|
Dot (Pixel) Size |
0.55x0.55mm |
|
Dot (Pixel) Pitch |
0.60x0.60mm |
|
IC Package |
COB |
|
Display Type |
STN-LCD Blue |
|
Touch Panel Optional |
No |
|
Sunlight Readable |
No |
|
Response Time(Typ) |
No |
|
Contrast Ratio(Typ) |
No |
|
Colors |
No |
|
Viewing Direction |
6:00 |
|
Viewing Angle Range |
No |
|
Brightness(Typ) |
No |
|
Backlight Color |
White Color |
|
Backlight Current (Typ) |
45mA |
|
Power Supply(Typ) |
3.3V, 5V |
|
Supply Current for LCM(Max) |
1800uA |
|
Operating Temperature |
-20℃~70℃ |
|
Storage Temperature |
-30℃~80℃ |
|
Series Number |
ERM1604-1 |
Package Included   Â
- 1  x   LCD Blue 16x4 1604 Character Module Display
- 16 x header pins
