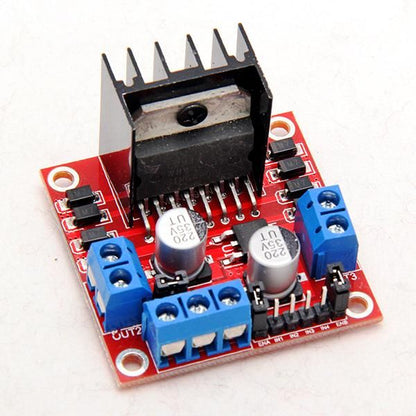

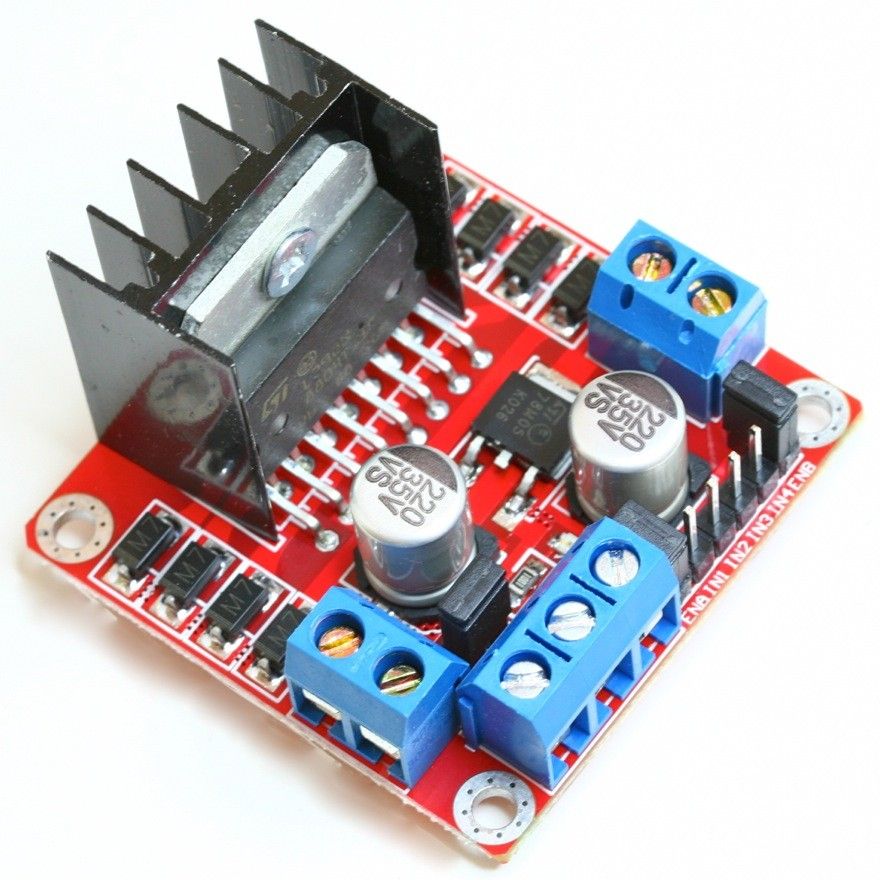

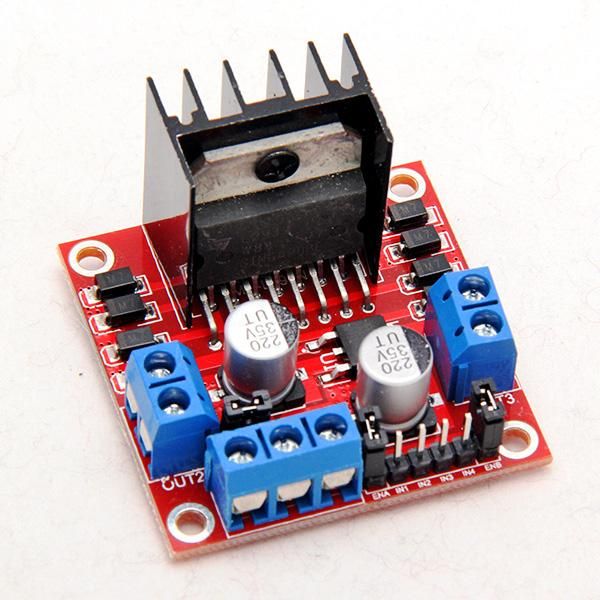

1B30003 L298N Stepper Motor Driver Module
1B30003 L298N Stepper Motor Driver Module
1B30003 L298N Stepper Motor Driver Module

1B30003 L298N Stepper Motor Driver Module

  • Sale
  • Dhs. 20.00
  • Dhs. 25.00
Delivery within UAE in 2 Days



DESCRIPTION



The L298N driver module, using ST's L298N chip can directly drive two 3-30V DC motor, and provides a 5V output interface can 5V single-chip circuitry to supply, support 3.3VMCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor, smart car essential.



Features:

    • Driver: L298N Dual H Bridge DC Motor Driver IC
    • Driven part of the terminal supply area Vs: 5 V ~ 35 V; such as the need to take power within the board, the     supply area Vs: 7 V ~ 35 V
    • Driven part of the peak current Io: 2A
    • The logical part of the terminal supply area Vss: 5 V ~ 7 V (can take power within the board 5 V)
    • The logical part of the operating current range: 0 ~ 36mA



Control signal input voltage range:

    • Low:-0.3V
    • High: 2.3V
    • Enable signal input voltage range:
    • Low: -0.3
    • High: 2.3V
    • Maximum power consumption: 20W (when the temperature T = 75 Deg C)
    • Storage temperature: -25 Deg C ~ 130 Deg C
    • Other Extensions: control of direction indicators, the logic part of the plate to take power interface.
    • Driver Board Size: 55mm * 60mm * 30mm
    • Drive plate Weight: 33g



Backage Included:



  • 1 X L298N Stepper Motor Driver Module
