Blue PCB Electronics

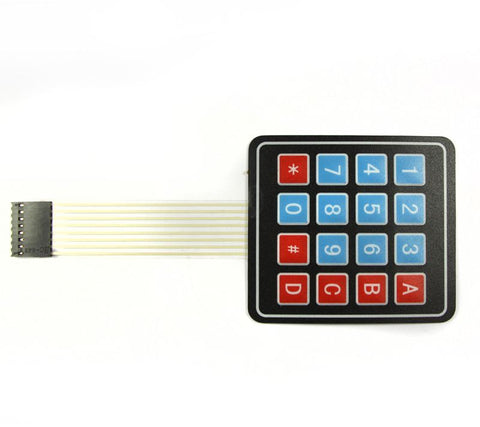

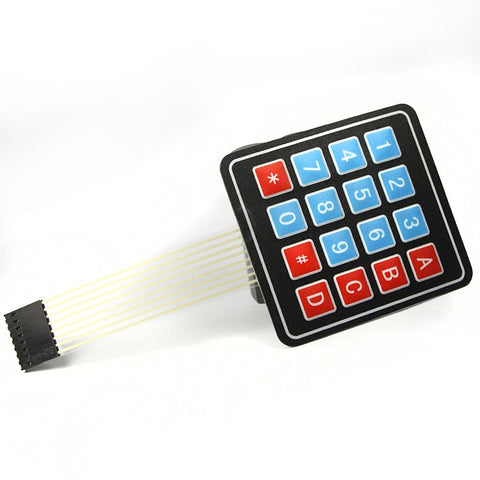

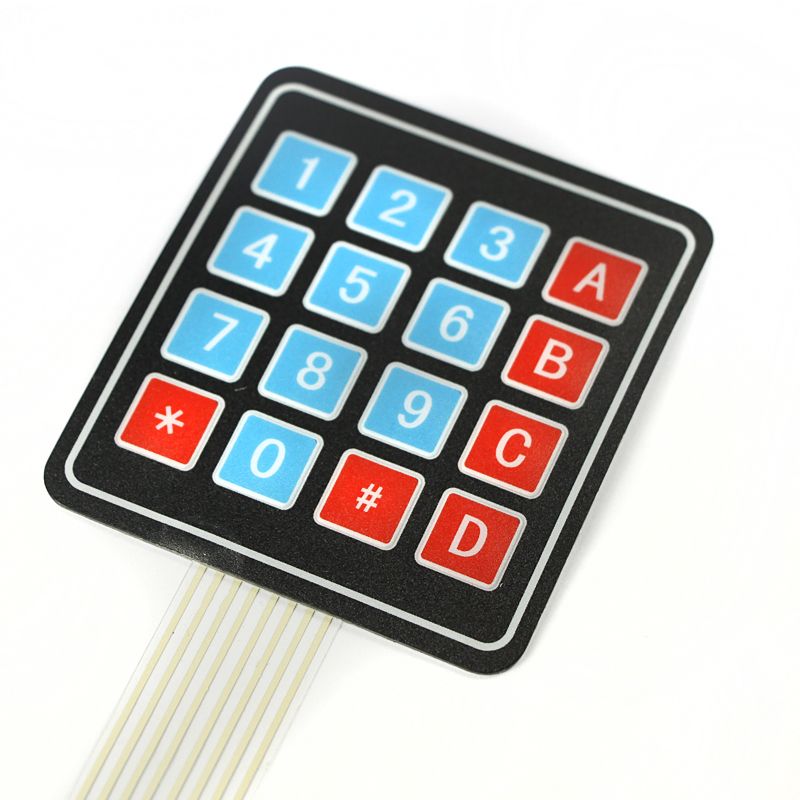

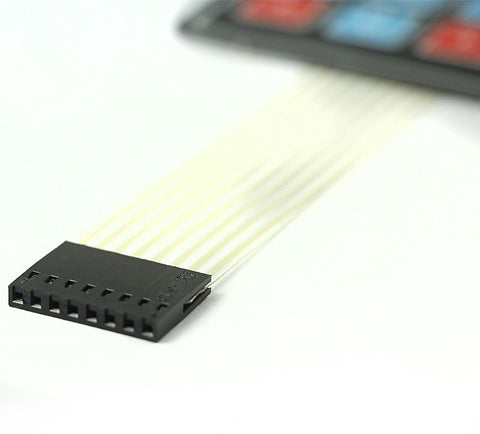

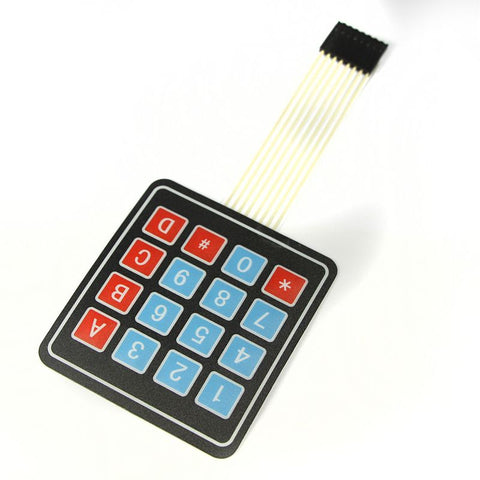

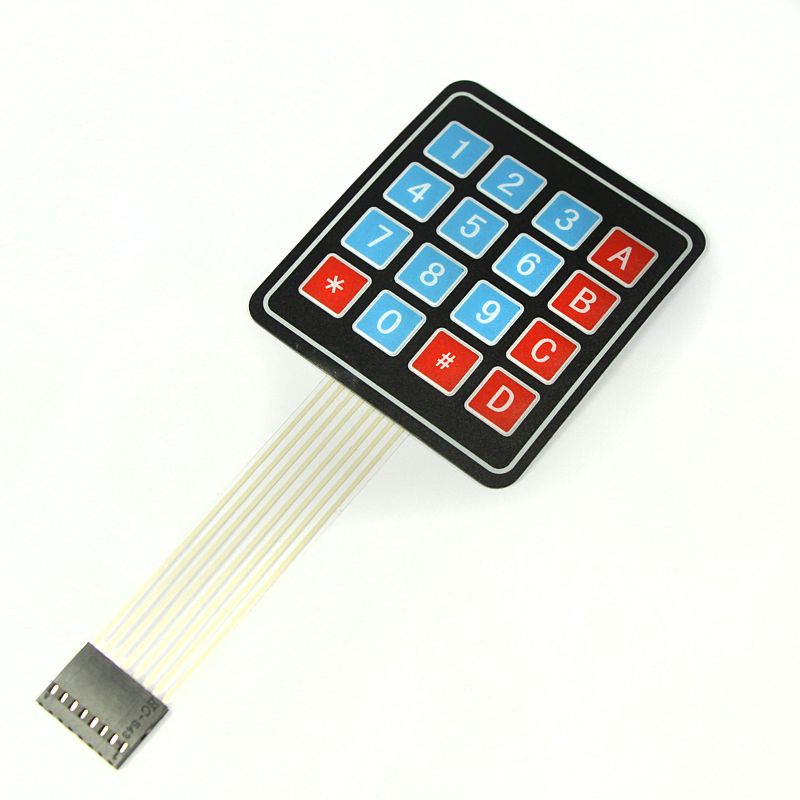

1B14 Keypad Matrix 4 x 4 Array 16 Key Membrane Switch Keyboard

1B14 Keypad Matrix 4 x 4 Array 16 Key Membrane Switch Keyboard

Regular price Dhs. 15.00
Regular price Dhs. 20.00 Sale price Dhs. 15.00
Sale Sold out
View full details

DESCRIPTION



CONTACT RESISTANCE OF 500 (Ω)
INSULATION RESISTANCE 100M (Ω)
KEY OPERATING FORCE 150 TO 200N
REBOUND TIME 1 (MS)
LIFE OF 100 MILLION (TIMES)

OPERATING TEMPERATURE 60 (℃)


1.  THE ELECTRONIC CHARACTERISTICS
CIRCUIT RATING: 35V (DC), 100MA, 1W
CONTACT RESISTANCE: 10Ω ~ 500Ω
(VARIES ACCORDING TO THE LEAD LENGTHS AND DIFFERENT FROM THOSE OF THE MATERIAL USED)
INSULATION RESISTANCE: 100MΩ 100V
DIELECTRIC STRENGTH: 250VRMS (50 ~ 60HZ 1MIN)
ELECTRIC SHOCK JITTER: <5MS
LIFE SPAN: TACTILE TYPE: ≥ ONE MILLION TIMES


2. THE MECHANICAL PROPERTIES
OPERATING PRESSURE: TOUCH FEELING: 170 ~ 397G (6 ~ 14OZ)
SWITCH TRAVEL: TOUCH-TYPE: 0.6 ~ 1.5MM
3. THE ENVIRONMENT PARAMETERS
OPERATING TEMPERATURE: -40 TO 80
STORAGE TEMPERATURE: -40 TO 80
TEMPERATURE: FROM 40,90% TO 95%, 240 HOURS
VIBRATION: 20G, MAX. (10 ~~ 200HZ, THE MIL-SLD-202 M204.CONDITION B)



Package Included:

  • 1  x   4 x 4 Matrix Array 16 Key Membrane Switch Keypad Keyboard for Arduino/AVR/PI​C/raspberry pi
