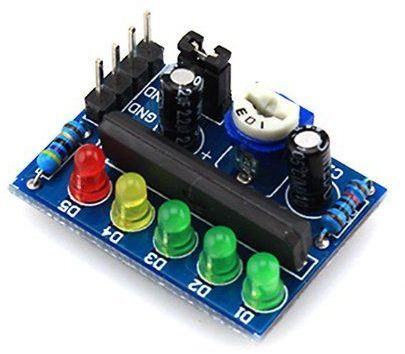

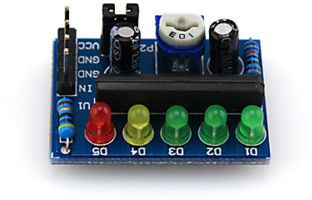

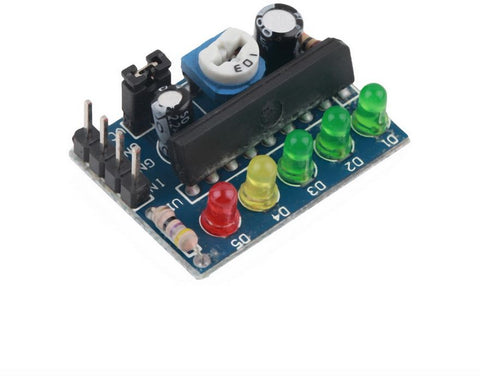

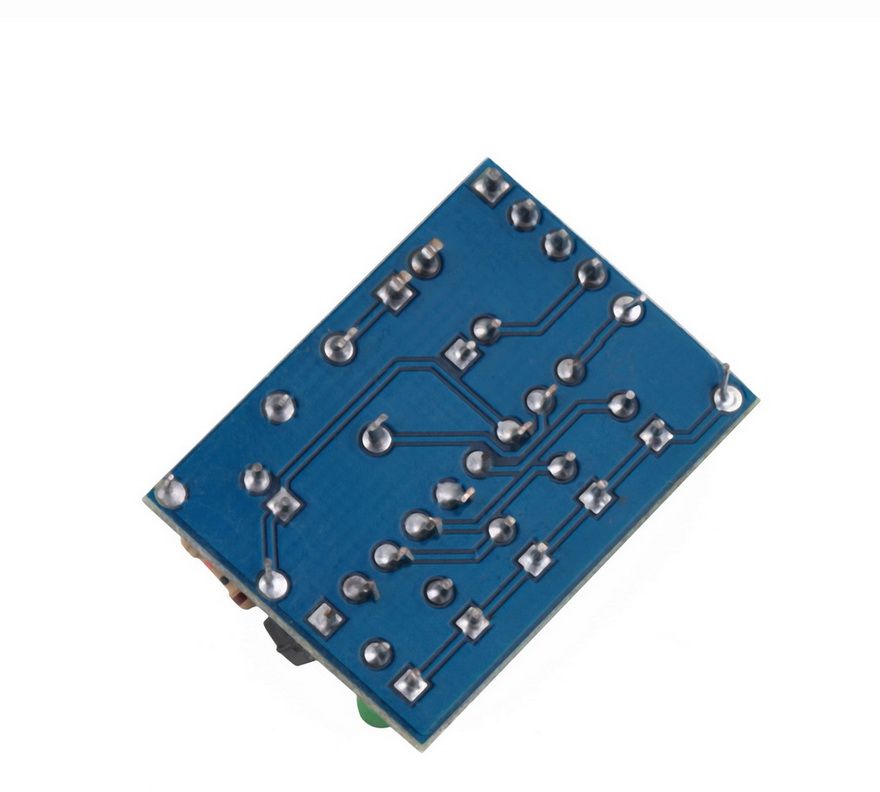

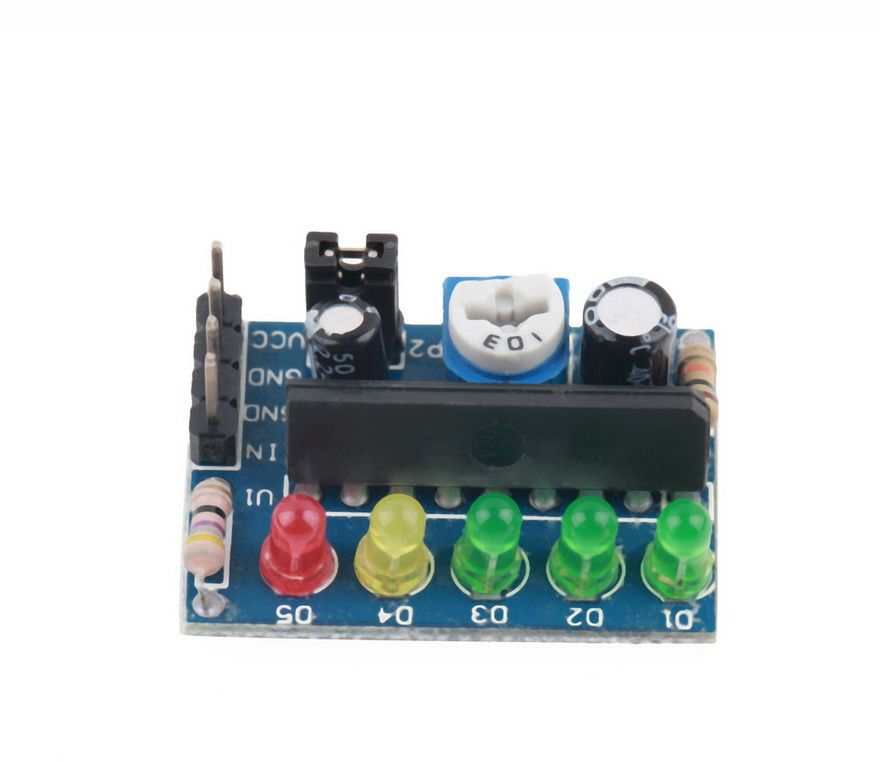

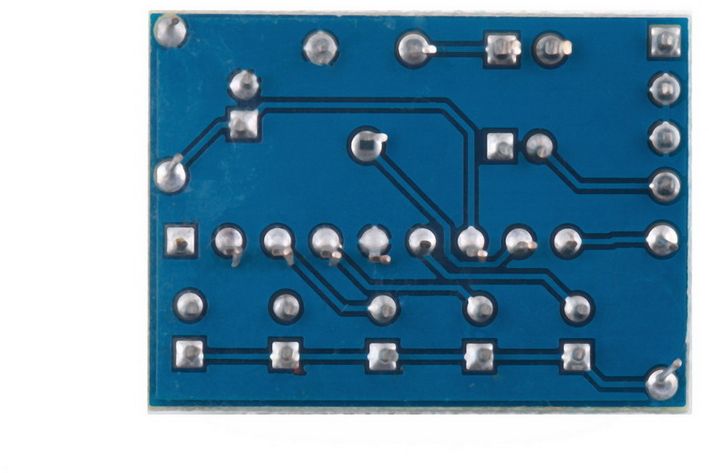

2B16 KA2284 Power level indicator Battery Pro Audio level indicator module

2B16 KA2284 Power level indicator Battery Pro Audio level indicator module

Regular price Dhs. 20.00
Regular price Dhs. 25.00 Sale price Dhs. 20.00
Sale Sold out
View full details

Description

KA2284 level indicates the module, battery indicator, and audio level indicator This simple circuit is based on the monolithic integrated KA2284, providing a simple and reliable VU meter with a LED that can visualize the intensity of a signal and therefore of its logarithmic scale voltage, thus allowing it to appreciate its size. This circuit can be used as a VU instrument in amps and professional audio systems, but also by measuring continuous voltages. For example, it can be used as a battery charge level indicator in any Arduino application, or other demo boards. This product is known as KA2284 Battery and Power Level Indicator. Battery Indicator Pro Audio level indicator module, KA2284 Power Level Indicator Battery Pro Audio Level Indicator Module
The KA2284 level indicates the module, battery indicator, and audio level indicator.

Datasheet: KA2284

Features:

  • Chip: KA2284
  • This Audio Level Indicator can be adjusted and is easy to use
  • AC and DC signals can be controlled by jumpers
  • Designed with small size, lightweight, and easy to use
  • It is equipped with LED indicator light, making it more convenient to use
  • Provides Stable and safe Performance

Features/Specs:

  • Manufacturer: Sharvi Technologies
  • Manufacturer Part No.: ST2010SM0969
  • Chipset: KA2284
  • Power Supply Voltage: 3.5 ~ 12VDC
  • 5 LED Indicators of AC or DC signal strength
  • Adjustable Level Range
  • Storage temperature: -40 ~ 125°C
  • Operating temperature: -20 ~ 80°C
  • Mounting Hole: M3 Screw
  • Length: 28 mm
  • Width: 22 mm
  • Height: 12 mm
  • Approx. Weight: 12 g

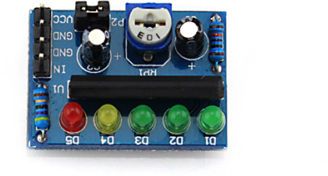

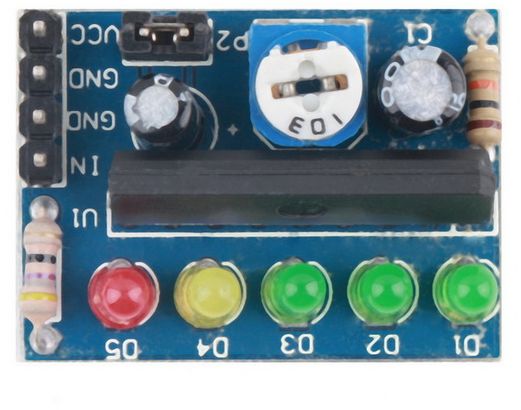

Pinout

  • VCC = Connect to 3.5 to 16V for the system to turn ON.
  • IN = input. The voltage is to be measured by the device.
  • GND = ground. There are 2 ground pins, but only one needs to be used
  • GND = Ground. There are 2 ground pins, but only one needs to be used

Jumper Connector

  • Jumper OFF = Monitor AC voltage
  • Jumper ON = Monitor DC voltage

Package includes
  • 1 X KA2284 Power level indicator Battery Pro Audio level indicator module
