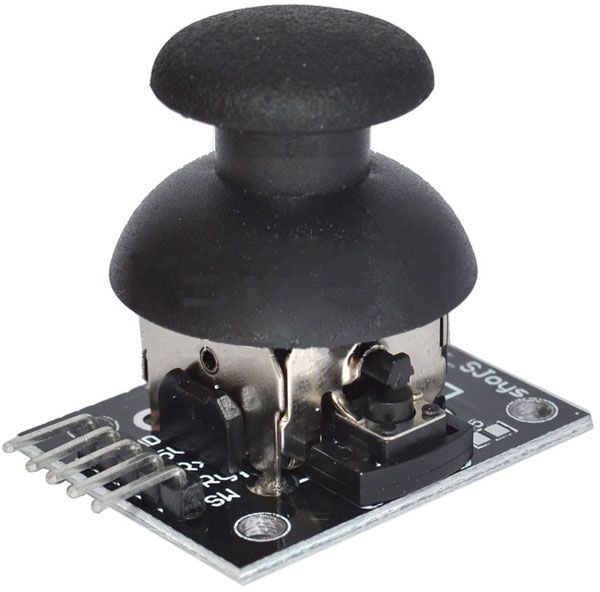

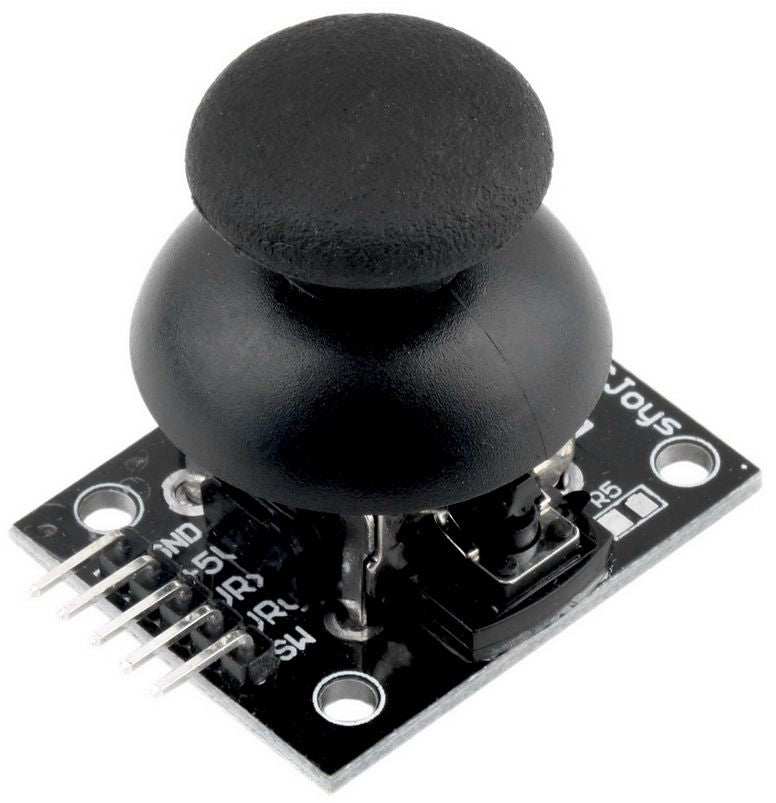

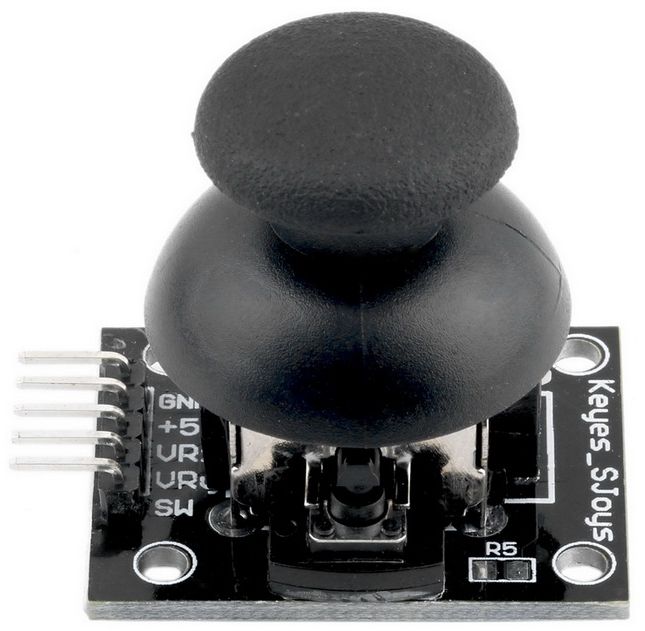

2C17 JoyStick Module Shield PS2 Joystick Game Controller

2C17 JoyStick Module Shield PS2 Joystick Game Controller

Regular price Dhs. 15.00
Regular price Dhs. 25.00 Sale price Dhs. 15.00
Sale Sold out
View full details

Description

The JoyStick Module Shield is a hardware platform that allows users to build and program their own game controllers. The shield is compatible with the PlayStation 2 (PS2) joystick, which is a familiar and commonly used input device for gaming. This combination of hardware and software allows for seamless integration into a wide range of gaming applications, including media centers, emulators, and homebrews. The Joystick Game Controller offers a unique and engaging experience for gamers who want to customize their input devices to suit their specific needs and preferences.



Brand KEYES
Model KY-023
Quantity 1
Color Black
Material FR4
Features Through the Arduino controller programming, sensor expansion board inserting to complete creative control interactive works; Suitable for Arduino UNO, Arduino UNO R3, Arduino 2560, Arduino 2560 R
Specification PS2 joystick module, electronic building standard interface and 2.54mm interface leads to pin; Cross rocker is a bidirectional 10K resistor, with rocker in different directions, the resistance changes with tap; This module uses 5V power supply, original state of X, Y readout voltage is about 2.5V, when press down the arrow, the voltage value increases up to 5V; press the arrow in the opposite direction, voltage decreases, the minimum is 0V
Application Arduino development
English Manual/Spec Yes
Other A product for Arduino that works with official Arduino boards.
Packing List JoyStick Module Shield PS2 Joystick Game Controller
Dimensions: 1.57 in x 1.06 in x 1.34 in (4.0 cm x 2.7 cm x 3.4 cm)
Weight: 0.39 oz (11 g)
