2D21 KY-005 38KHz Infrared IR Transmitter Sensor Module

2D21 KY-005 38KHz Infrared IR Transmitter Sensor Module

Regular price Dhs. 15.00
Regular price Sale price Dhs. 15.00
Sale Sold out
View full details

Description

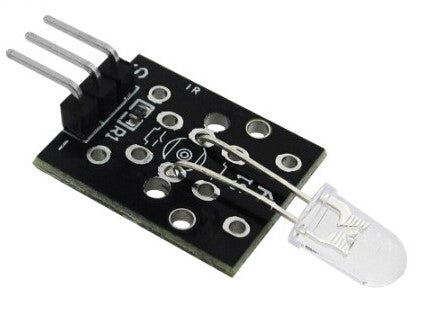

The KY-005 Infrared Transmitter module emits infrared light at 38kHz. It can be used to control TVs, stereos, air conditioners and other devices with IR receivers. It can also be used together with the KY-022 Infrared Receiver module.

Compatible with Arduino, Raspberry Pi, ESP32 and other popular microcontrollers.

KY-005 SPECIFICATIONS

This module is quite simple and consists of a 5mm infrared LED and 3 male header pins. Handle with caution, do not flash IR light directly to the eyes.

Operating Voltage 5V
Forward Current 30 ~ 60 mA
Power Consumption 90mW
Operating Temperature -25°C to 80°C [-13°F to 176°F]
Board Dimensions 18.5mm x 15mm [0.728in x 0.591in]

CONNECTION DIAGRAM

Connect the board power line (middle) and ground (-) to +5 and GND on the Arduino respectively.

Connect the signal pin (S) to pin 3 on the Arduino Uno.

The pin number for the IR transmitter is determined by IRremote library. Other platforms might use a different pin.

KY-005 Arduino Uno
S Pin 3
middle +5V
– GND
Arduino KY-005 connection diagram

KY-005 ARDUINO CODE

The following Arduino sketch acts as a TV remote control. It uses the IRremote library to serially send instructions to a TV using infrared light.

In this example, we will send the power command for Sony TVs every 5 seconds, turning the TV on and off 10 times.

Check the IRremote library documentation for supported TV commands and devices. Links to the required libraries can be found in the Downloads section below.

You can also use the KY-022 IR Receiver module to receive and process the signal.

#include <IRremote.h>

IRsend irsend;

void setup()
{
    Serial.begin(9600); // Initialize serial interface
}

void loop()
{
    for (int i = 0; i < 10; i++) {
       irsend.sendSony(0xa90, 12); // code for Sony TV power command
       delay(5000); // wait 5 seconds
   }
}
