Blue PCB Electronics

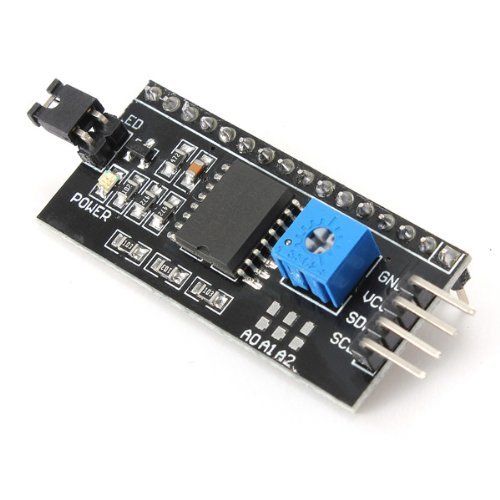

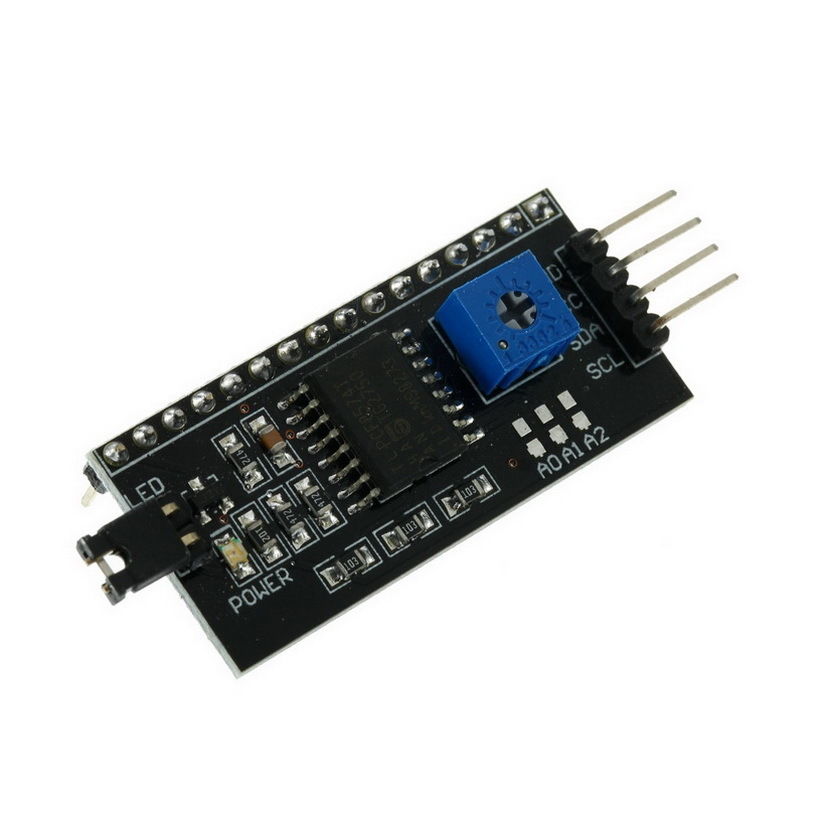

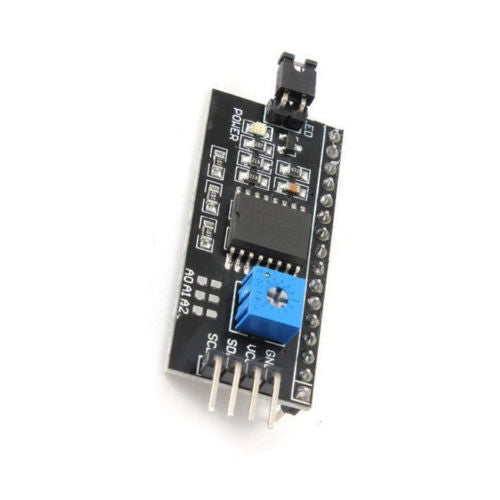

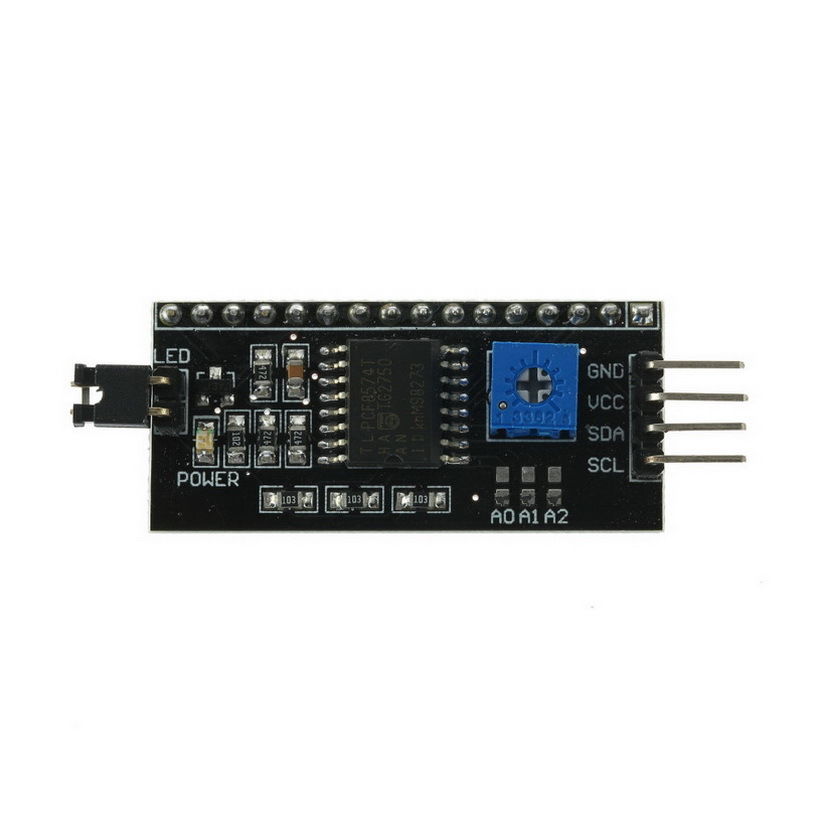

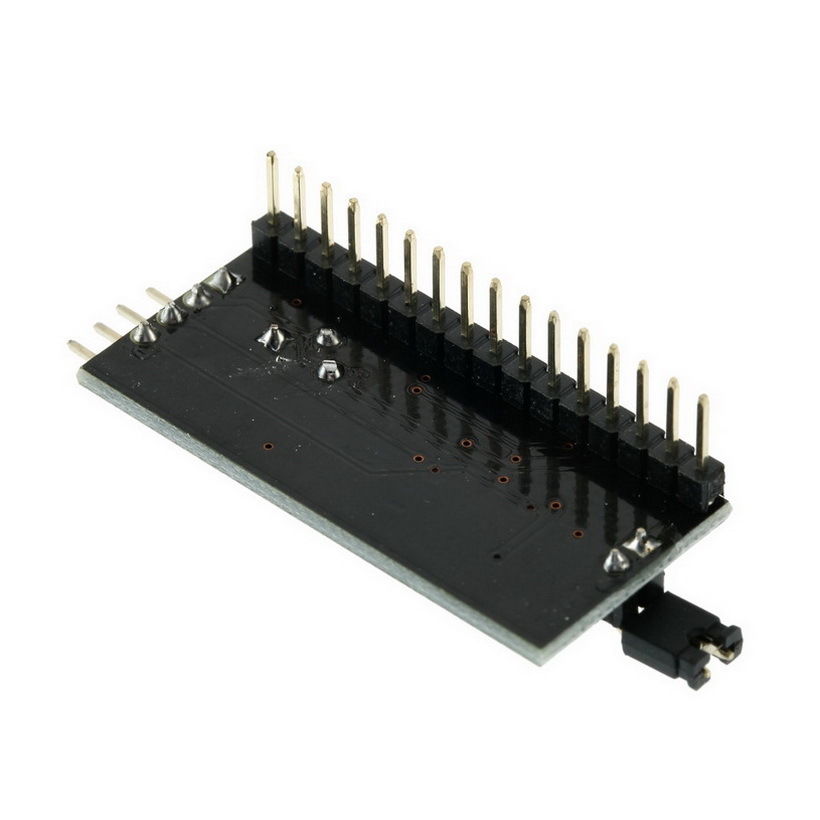

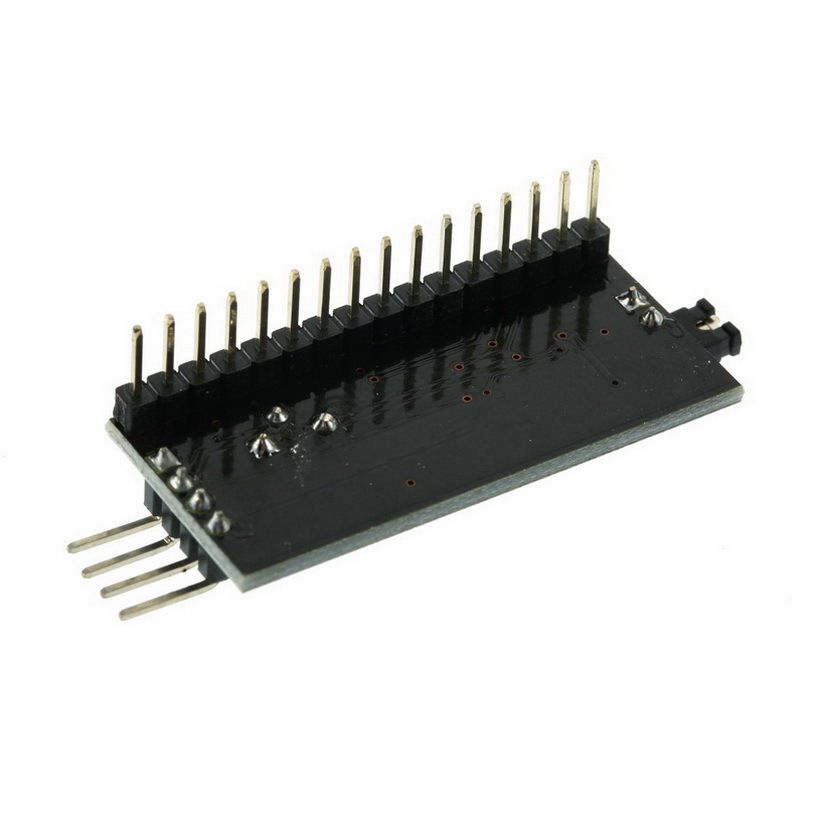

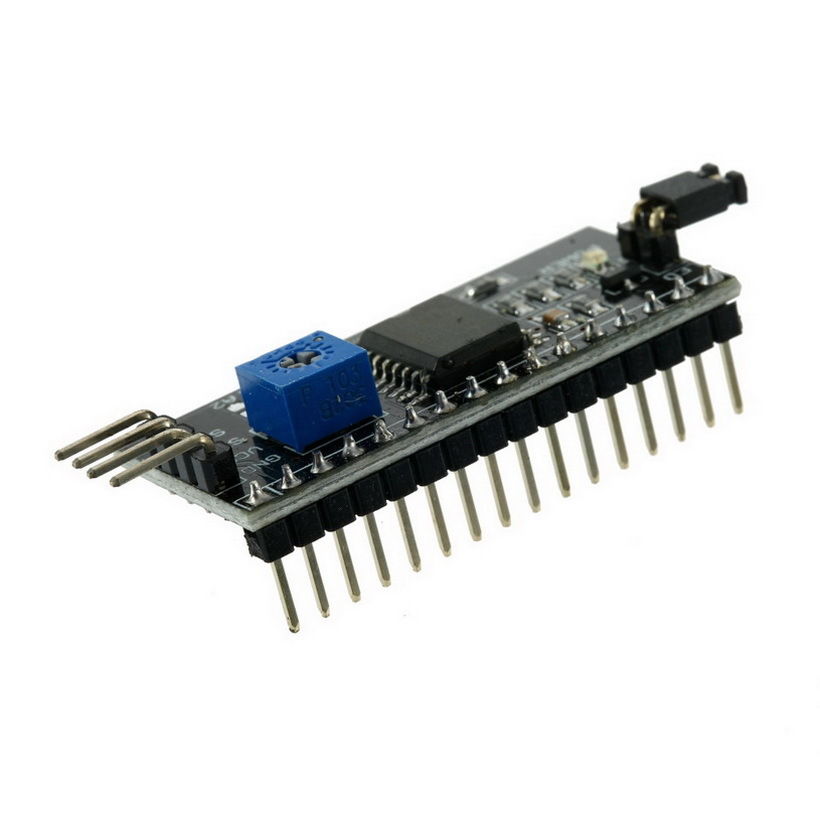

1C50005 IIC / I2C / TWI / SPI Serial Interface Board Module 1602 LCD

1C50005 IIC / I2C / TWI / SPI Serial Interface Board Module 1602 LCD

Regular price Dhs. 20.00
Regular price Sale price Dhs. 20.00
Sale Sold out
View full details

Description:

The I2C Serial Interface Module for 16×2 LCD Display is a specific type of I2C module that is used to interface a 16×2 character LCD display with a microcontroller or other device. It provides a standardized communication interface between the microcontroller and the LCD display, making it easier to use the display in your electronics projects.

The I2C Serial Interface Module for 16×2 LCD Display typically consists of a small circuit board with a microcontroller and the necessary components for implementing the I2C protocol, as well as a connector for the 16×2 LCD display. The module is designed to be connected to a master device, such as an Arduino board or a microcontroller, using the module’s I2C pins.

To use the I2C Serial Interface Module for 16×2 LCD Display, you would typically connect the module to the master device and the LCD display using the appropriate pins. You would then use code to send commands and data to the LCD display via the I2C protocol, such as setting the cursor position or displaying text on the screen.

Datasheet

Features:
  • Serial I2C control of LCD display using PCF8574
  • 5V power supply
  • Backlight can be enabled or disabled via a jumper on the board
  • Contrast control via a potentiometer

Package Includes:
  • 1 x IIC/I2C Serial Interface Adapter Module

Pinout
