There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of.
Press the buttons transmit signals, the corresponding data bit is output high.
Operating voltage: DC12V
Operating Current: 10mA @ 12V
Radiated power: 10mw @ 12V
Modulation mode: ASK (Amplitude Modulation)
Transmitting frequency: 315MHZ
Transmission distance :50-100M (Open field, the receiver sensitivity of -100dbm)
Encoder types: fixed code
With decoding receiver board
The operating voltage DC5V, receiver sensitivity is-98db.
Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND.
VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.

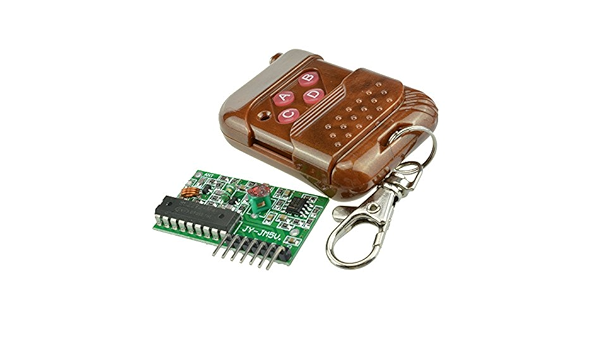

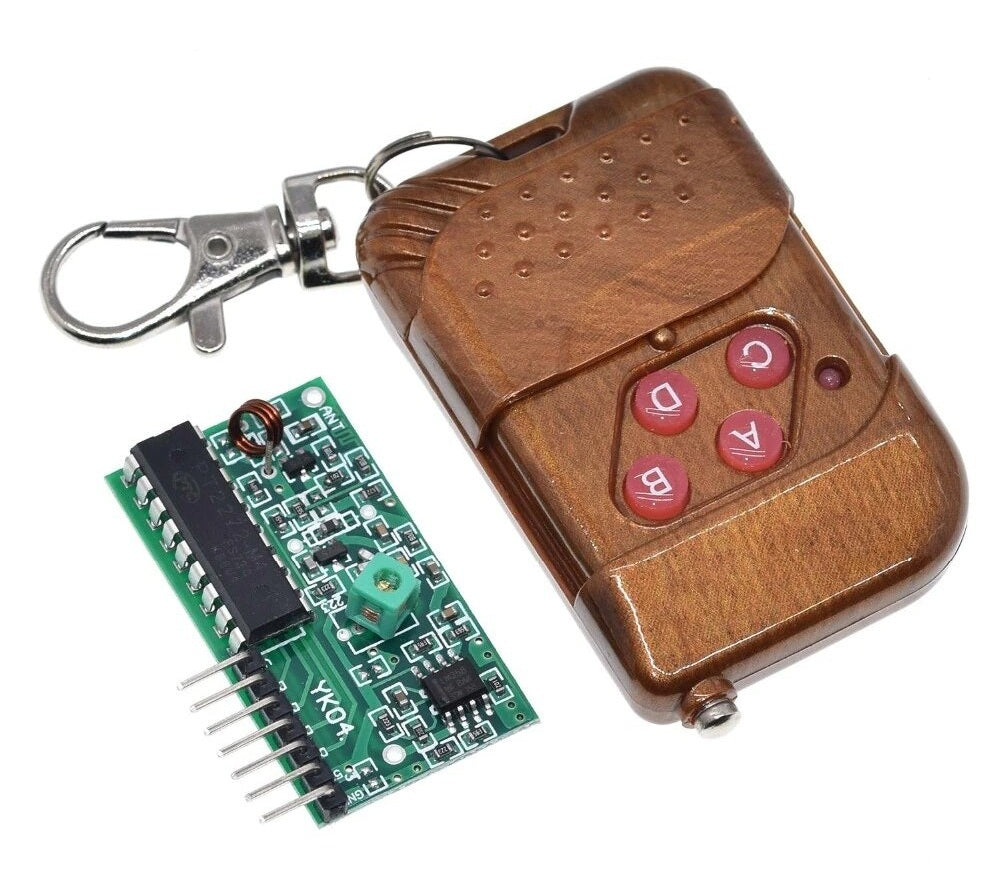

1 x IC2262/2272 4 channel wireless remote control kits 4 key wireless remote 315MHZ
