Build electronics projects with this UNO R3 starter kit, compatible with the Arduino IDE. The HS4809 kit includes a controller board, breadboard, sensors, displays, motors and components for hands-on learning.
Project possibilities
- Read temperature, humidity, light, motion and distance sensors.
- Experiment with LEDs, LCD1602 and seven-segment displays.
- Control a servo, stepper motor and relay.
- Explore RFID, a real-time clock and keypad inputs.
Supplied as the 63-item kit with tutorial listed below. Check the package contents for individual components and quantities.

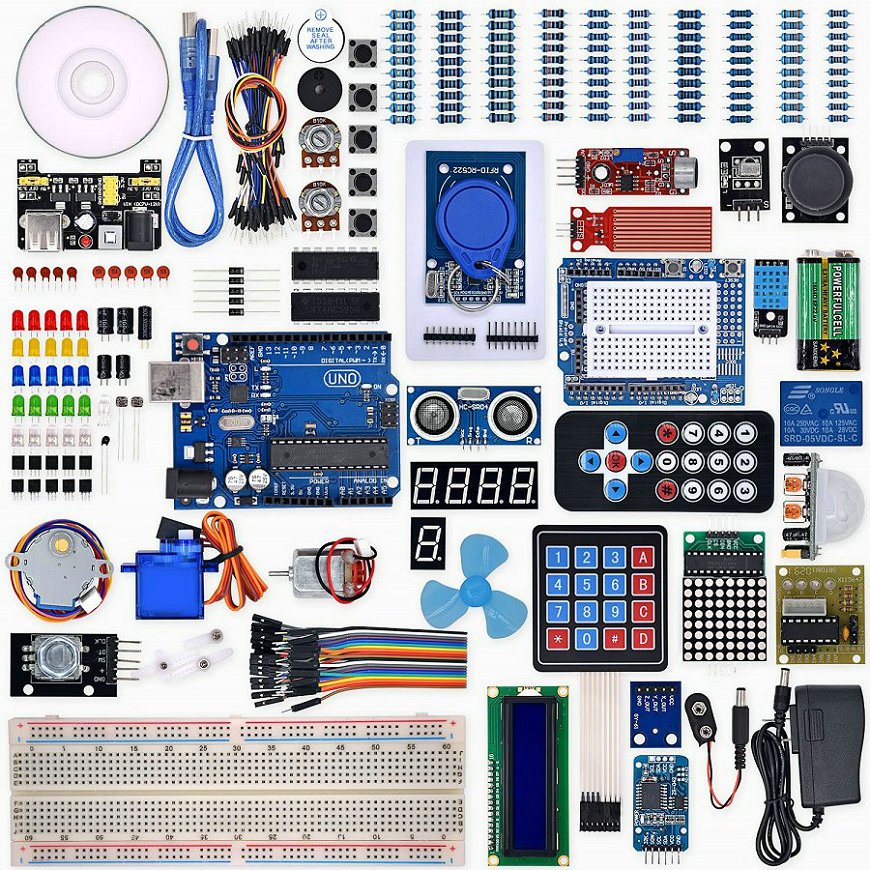

Package Includes:
- R3 Controller Board *1
- 22pf Ceramic Capacitor *5
- 104 Ceramic Capacitor *5
- Photoresistor *2
- Thermistor *1
- Diode Rectifier (1N4007) *5
- Electrolytic Capacitor (10UF 50V) *2
- Electrolytic Capacitor (100UF 50V) *2
- NPN Transistor (PN2222) *2
- NPN Transistor (S8050) *5
- Tilt Switch *1
- Button (small) *5
- 1 digit 7-segment Display *1
- White LED *5
- Yellow LED *5
- Blue LED *5
- Green LED *5
- Red LED *5
- RGB LED *1
- 4 digit 7-segment Display *1
- Sound Sensor Module *1
- LCD1602 Module ( with pin header) *1
- IC L293D *1
- IC 74HC595 *1
- Active Buzzer *1
- Passive Buzzer *1
- DS3231 RTC Module *1
- Keypad Module *1
- 5V Relay *1
- IR Receiver Module *1
- Breadboard *1
- Servo Motor (SG90) *1
- DHT11 Temperature and Humidity Module *1
- Rotary Encoder Module *1
- Joystick Module *1
- Stepper Motor *1
- ULN2003 Stepper Motor Driver Board *1
- Prototype Expansion *1
- Power Supply Module *1
- HC-SR501 PIR Motion Sensor *1
- Ultrasonic Sensor *1
- ADXL345 Module *1
- 3V Servo Motor *1
- MAX7219 Module *1
- Remote *1
- 9V 1A Power Supply *1
- 65 Jumper Wire *1
- Water Lever Sensor *1
- USB Cable *1
- RC522 RFID Module *1
- Resistor (10R) *10
- Resistor (100R) *10
- Resistor (220R) *10
- Resistor (330R) *10
- Resistor (1K) *10
- Resistor (2K) *10
- Resistor (5K1) *10
- Resistor (10K) *10
- Resistor (100K) *10
- Resistor (1M) *10
- Female-to-male Dupont Wire *20Â
