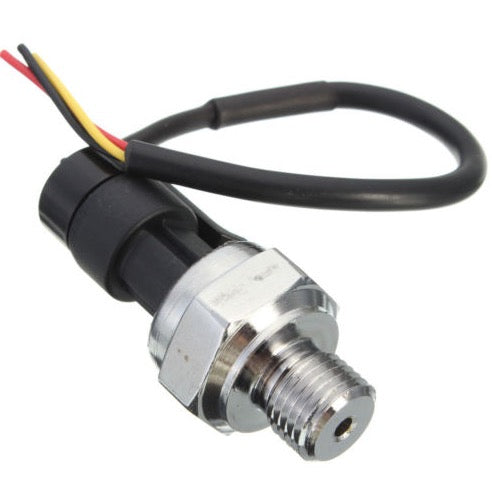

G1/4" inch 5V 0-1.2 MPa Pressure Transducer Sensor Oil Fuel Diesel Gas Water Air

Specifications:
Working Voltage: 5VDC
Output Voltage: 0.5-4.5 VDC
Sensor material: Carbon steel alloy
Working Current: ≤10 mA
Working Pressure Range: 0-1.2 MPa
The Biggest Pressure: 2.4 MPa
Cable length: 19cm
Destroy Pressure: 3.0 MPa
Working TEMP. Range: 0-85 Celsius degree
Storage Temperature Range: 0-100 Celsius degree
Measuring Error: ±1.5 %FSO
Temperature Range Error: ±3.5 %FSO
Response Time: ≤2.0 ms
Cycle Life: 500,000 pcs
Application: non-corrosive gas liquid measurement

Features:
Easy removal, carbon steel connection more firmly.
Stainless steel is durable, sealed waterproof line, imported chips.
Wiring: red +, black -, yellow output

Package includes:1 x Pressure Transducer Sensor
