Description:

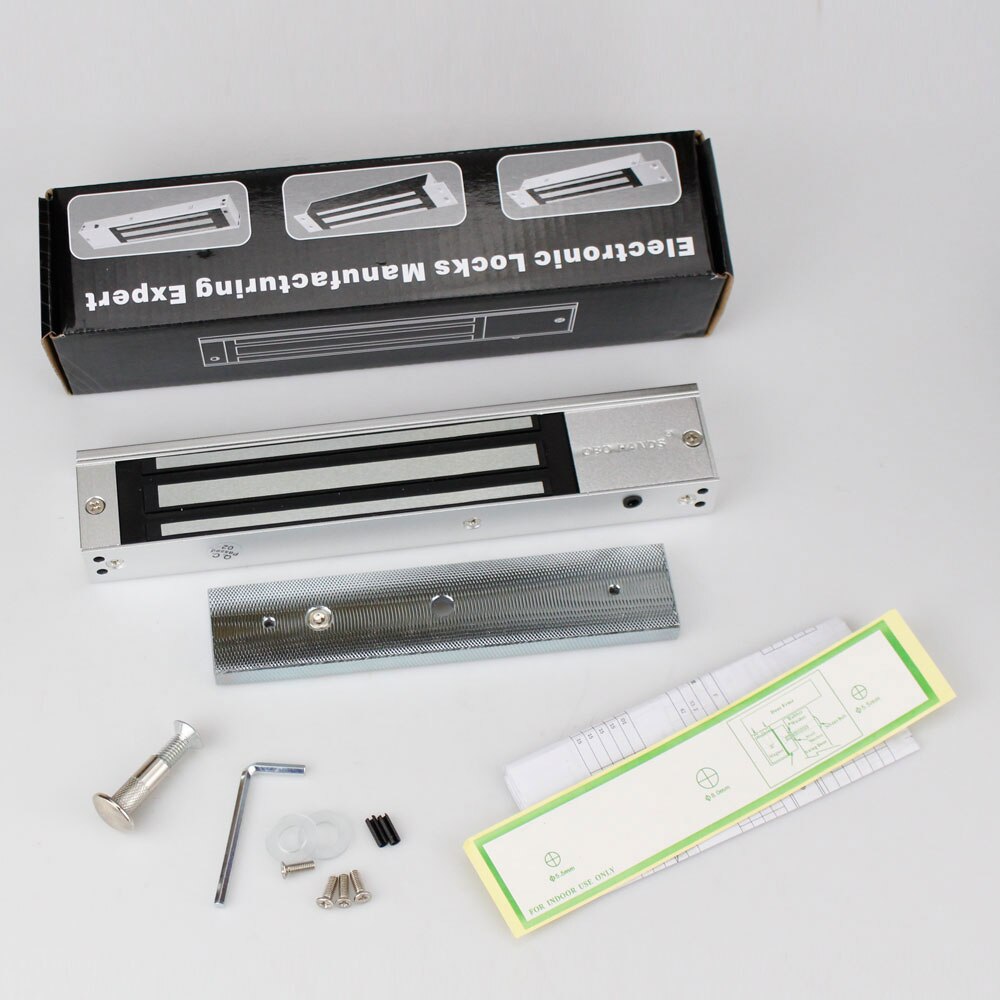

This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks. By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut. When power off, the door will open. It is suitable for wooden door, glass door, metal door, fire-proof door,etc.Â
Specifications:
Locking Mode:Â NC
Working Voltage:Â DC 12V
Working current:Â 12V/400mA
Material: Aluminum alloy shell + iron plate
Holding Force: 180KG/350Lbs
Lock Size: Approx. 18.5*3.3*2.3cm/ 7.3*1.3*0.9in                                         Â
Plate Size:Â Approx. 13.1*3.4*1.2cm/5.2*1.3*0.5in
Package Weight:Â Approx. 1019g/35.9oz
This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks. By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut. When power off, the door will open. It is suitable for wooden door, glass door, metal door, fire-proof door,etc.Â
Specifications:
Locking Mode:Â NC
Working Voltage:Â DC 12V
Working current:Â 12V/400mA
Material: Aluminum alloy shell + iron plate
Holding Force: 180KG/350Lbs
Lock Size: Approx. 18.5*3.3*2.3cm/ 7.3*1.3*0.9in                                         Â
Plate Size:Â Approx. 13.1*3.4*1.2cm/5.2*1.3*0.5in
Package Weight:Â Approx. 1019g/35.9oz
