Blue PCB Electronics

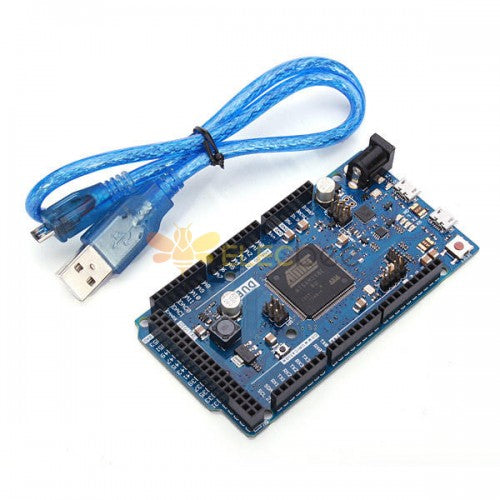

Arduino DUE with usb cable

Arduino DUE with usb cable

Regular price Dhs. 200.00
Regular price Sale price Dhs. 200.00
Sale Sold out
View full details

Description

The Arduino Due is a microcontroller board based on the Atmel SAM3X8E CPU, which is the first one based on 32-bit ARM core arduino.
The Arduino Due has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), an 84 MHz clock, a USB-OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.


Color: show as pictures
PLS NOTE that due to lighting effects, monitor's brightness / contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item!

Note: This is not the same as other Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.

Specifications

  • Condition: New
  • Microcontroller:AT91SAM3X8E
  • Operating Voltage:3.3V
  • Input Voltage (recommended):7-12V
  • Input Voltage (limits):6-16V
  • Digital I/O Pins :54 (of which 12 provide PWM output)
  • Analog Input Pins:12
  • Analog Outputs Pins:2 (DAC)
  • Total DC Output Current on all I/O lines :130 mA
  • DC Current for 3.3V Pin:800 mA
  • DC Current for 5V Pin:800 mA
  • Flash Memory:512 KB all available for the user applications
  • SRAM:96 KB (two banks: 64KB and 32KB)
  • Clock Speed: 84 MHz

Package Includes

  • 1 x Arduino DUE
  • 1 x USB cable
