Blue PCB Electronics

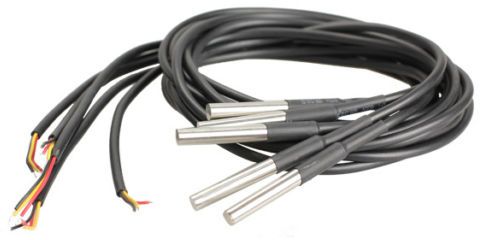

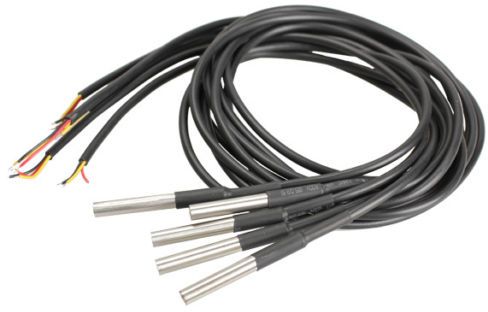

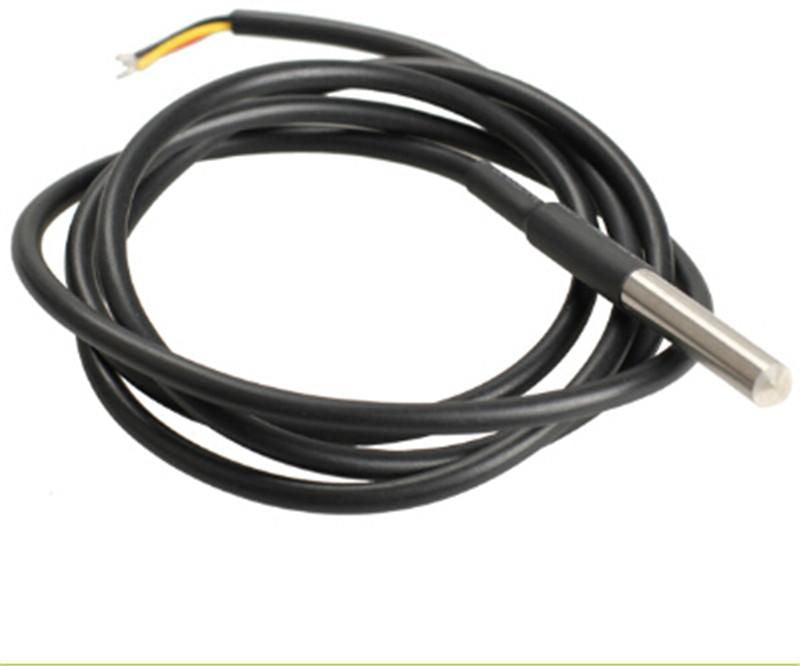

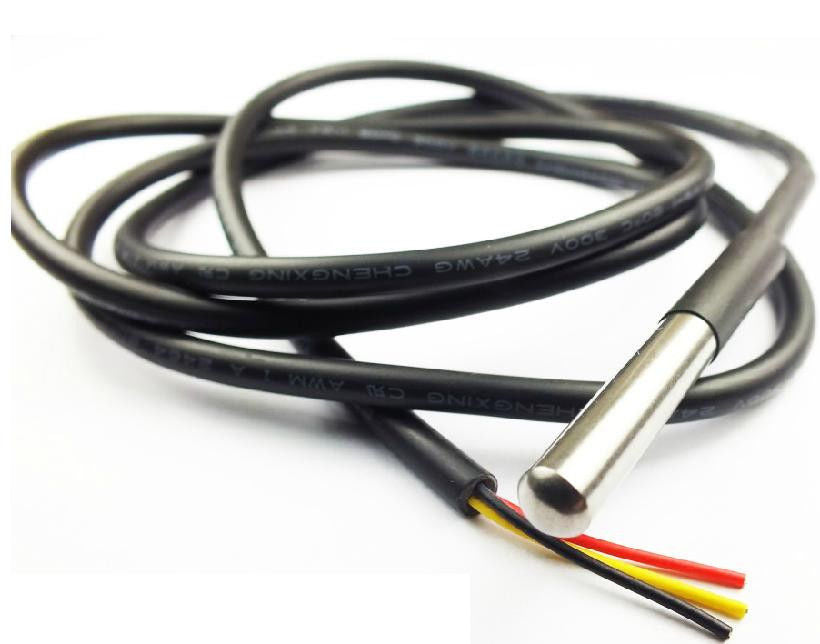

5C7 DS18B20 Waterproof Temperature Sensor Waterproof Digital Thermal Probe

5C7 DS18B20 Waterproof Temperature Sensor Waterproof Digital Thermal Probe

Regular price Dhs. 20.00
Regular price Dhs. 30.00 Sale price Dhs. 20.00
Sale Sold out
View full details


The DS18B20 is a widely used 1-Wire waterproof digital temperature sensor that comes in the form of a Stainless-steel probe. it is manufactured by Dallas Semiconductor (acquired by Maxim Integrated). This sensor has the characteristics of small size, low hardware overhead, high precision, and strong anti-interference ability. This sensor is perfect for measuring temperature in wet conditions, beneath the ground, underwater, or something far away.

This Sensor can measure a wide temperature in the range of -55°C ( -67°F) to +125°C (+257°F) with +-5% accuracy. This Sensors used a one-wire bus protocol to communicate with a microcontroller, which means it uses a single digital pin of any microcontroller/microprocessor to transmit the temperature readings. The temperature sensor’s resolution ranges from 9 to 12 bits. however, the default resolution to power up the sensor is 12-bit (i.e., 0.0625°C precision).


Parameter Value
Sensor Type Programmable Digital Temperature Sensor
Operating Voltage 3.3V – 5V
Operating Current 1 A
Measuring temperature range -55ºC to +125ºC (-67°F to +257°F)
Accuracy ±0.5°C Accuracy from -10°C to +85°C
Programmable Resolution 9 to 12 bit (Selectable)
Conversion Time < 750ms

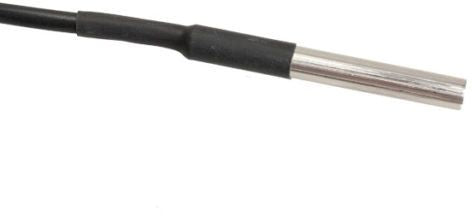

Sensing Probes Stainless Steel tube
Sensor Probe Length/ Diameter 45mm Long, 6mm Diameter
Cable Length/ Diameter 36 Inch / 91cm long, 4mm Diameter

Technical Features

  • Unique 1-Wire® Interface Requires Only One Digital Pin of microcontroller/microprocessor for Communication
  • In Parasitic Power Mode, Requires Only 2 Pins for Operation (Data and GND pin).
  • Multiple temperature sensors can share one pin of microcontroller/microprocessor
  • No External Components are Required
  • Temperature Sensor and EEPROM
  • Unique 64-bit address enables multiplexing
  • Programmable alarm options
  • It is Available in 8-Pin SO (150 mils), 8-Pin µSOP, and 3-Pin TO-92 Packages


  • This sensor is widely used to calculate the temperature in a rigid environment like mines, chemical solutions, soil, etc.

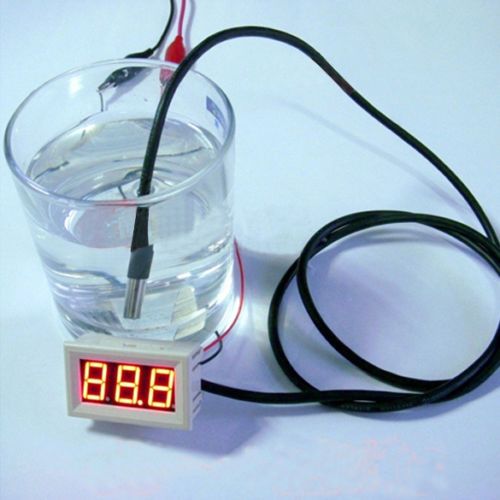

  • Measuring Liquid temperature
  • it can be used in the thermostat controls system
  • Used in industries as a temperature-measuring device
  • It is very useful where the temperature has to be measured at multiple points

Pinout/Pin Diagram

Introduction to DS18B20 Digital Waterproof Temperature Sensor, Pin Diagram, Working Principle, Specifications, Features, and Applications

Pin No. Pin Name  Description
1 GND This is the Ground pin of the sensor, it needs to connect to the GND terminal of the microcontroller.

This is the Power Supply pin of the sensor, it needs to connect to the 3.3V or 5V terminal of the microcontroller/microprocessor.


This is the Output pin. It Provides the output using one wire method that should be connected to a digital pin on the microcontroller/microprocessor.


Working Principle of DS18B20 Waterproof Temperature Sensor

The working principle of the DS18B20 Waterproof temperature sensor is similar to any other temperature sensor. The resolution of the sensor ranges from 9-bits to 12-bits. But 12-bit is used as the default resolution to power up this sensor. It measures temperature, as well as the conversion of Analog-to-Digital (A-to-D), which can be done with a convert-T command. The output temperature value can be stored within the 2-byte register in the sensor, and after that, this sensor returns to its inactive state.

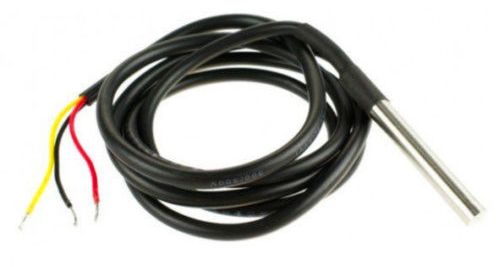

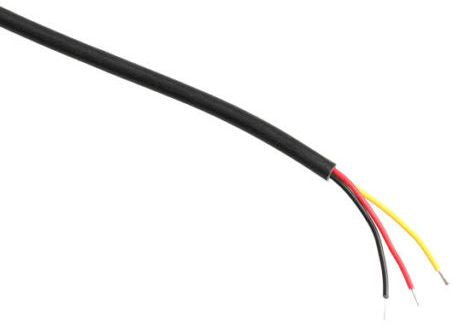

The DS18B20 Temperature Sensor has three wires/pins (Vcc, ground, and data wires) for operation. But in parasite mode, only the ground and data lines are used to operate the sensor, the input voltage of the sensor is supplied through the data line.

Hardware Required

  • Arduino Uno
  • USB 2.0 cable type A/B
  • DS18B20 Temperature Sensor
  • Jumper Wires
  • 9V power adapter for arduino

Wiring Diagram

Arduino DS18B20 Wiring Diagram


Note: You have to install Dallas Temperature Library

#include <OneWire.h>
#include <DallasTemperature.h>

const int SENSOR_PIN = 13; // Arduino pin connected to DS18B20 sensor's DQ pin

OneWire oneWire(SENSOR_PIN);         // setup a oneWire instance
DallasTemperature tempSensor(&oneWire); // pass oneWire to DallasTemperature library

float tempCelsius;    // temperature in Celsius
float tempFahrenheit; // temperature in Fahrenheit

void setup()
  Serial.begin(9600); // initialize serial
  tempSensor.begin();    // initialize the sensor

void loop()
  tempSensor.requestTemperatures();             // send the command to get temperatures
  tempCelsius = tempSensor.getTempCByIndex(0);  // read temperature in Celsius
  tempFahrenheit = tempCelsius * 9 / 5 + 32; // convert Celsius to Fahrenheit

  Serial.print("Temperature: ");
  Serial.print(tempCelsius);    // print the temperature in Celsius
  Serial.print("  ~  ");        // separator between Celsius and Fahrenheit
  Serial.print(tempFahrenheit); // print the temperature in Fahrenheit
