DFRobot Gravity: Analog Heart Rate Monitor Sensor

DFRobot Gravity: Analog Heart Rate Monitor Sensor

Regular price Dhs. 150.00
Regular price Sale price Dhs. 150.00
Sale Sold out
View full details

Description

Heart Rate Monitor Sensor is used to measure the electrical activity of the heart. This electrical activity can be charted as an ECG and output as an analog reading. An ECG signal can be extremely noisy so we have included an AD8232 chip which will generate a clear signal from the PR and QT Intervals. Using the Arduino IDE "Serial Plotter" feature,  you are also able to view plotted ECG output on  PC!

Gravity: Arduino Heart Rate Monitor Sensor (ECG) -DFRobot

To ease the difficult of using this sensor,  a Gravity Interface is adapted to allow plug&play.  The IO expansion shield is the best match for this sound senor connecting to your Arduino. As this sensor can work at 3.3V which make it compatible with Raspberry Pi, intel edison, joule and curie.

Analog sensor to monitor heart rate (ECG) with AD8232

SPECIFICATION

  • Input Voltage: 3.3-6V (5V recommended)
  • Output Voltage: 0-3.3V
  • Interface: Analog
  • Operating current: <10mA
  • imension: 35 x 22(mm), 1.378" x 0.866"(in)
  • Interface Type: PH2.0-3P

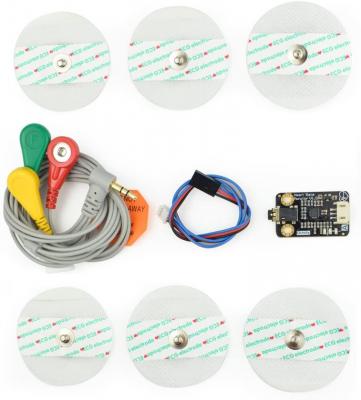

SHIPPING LIST

  • Heart Rate Monitor Sensor x1
  • Sensor cable - Electrode Pads (3 connector) x1
  • Biomedical Sensor Pad x6
  • PH2.0-3P cable x1
