- UL Recognized Component
- Ideal for Printed Circuit Board
- Glass Passivated Chip Junctions,
- Surge Overload Rating of 50A Peak Simple,
- Compact Structure for Trouble-free Performance
- Plastic Package - UL Flammability Classification 94V-0 Mec
Â
| Type: | Single Phase Bridge |
| Mounting Style: | PCB Mount |
| Termination Style: | Through Hole |

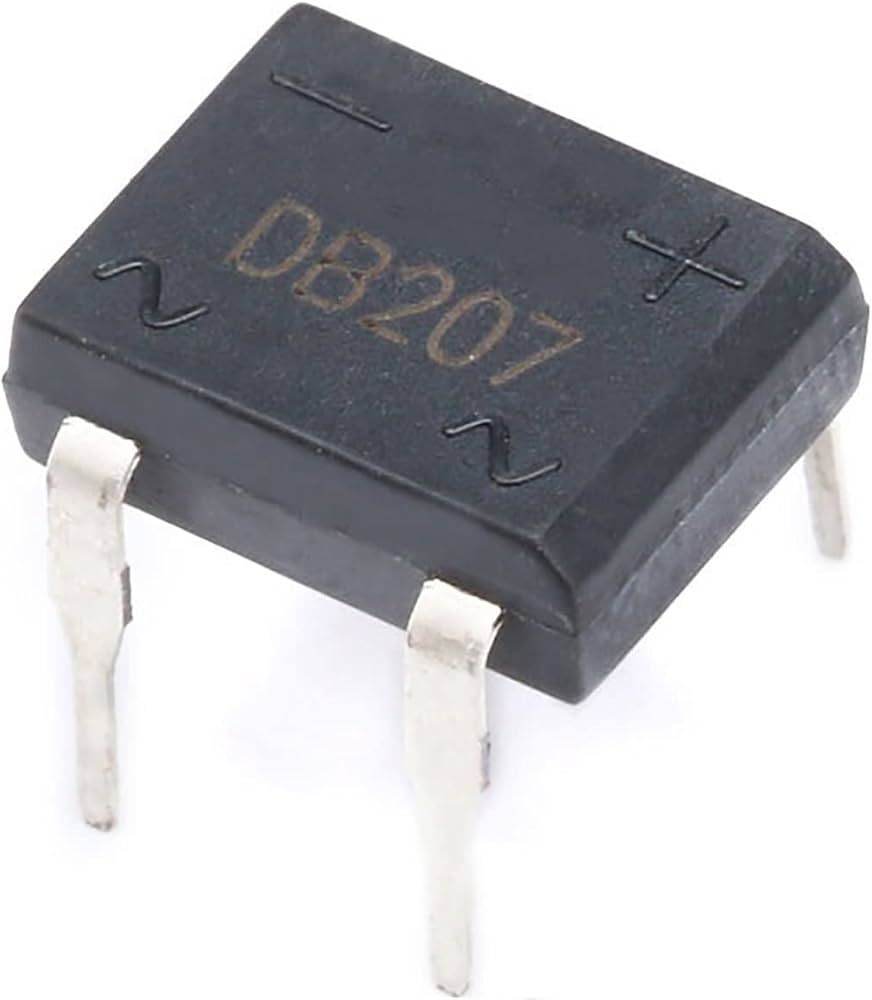

| Package/Case: | DB-1 |
| If - Forward Current: | 2 A |
| Peak Reverse Voltage: | 1000 V |
| Vf - Forward Voltage: | 1.1 V |
| Max Surge Current: | 40 A |
| Maximum Operating Temperature: | + 150 C |
| Minimum Operating Temperature: | - 55 C |
| Length: | 8.8 mm |
| Width: | 6.5 mm |
| Height: | 3.4 mm |
| Ir - Reverse Current: | 5 uA |
| Product: | Bridge Rectifiers |
| Vr - Reverse Voltage: | 700 V |
