Blue PCB Electronics

3C1 80V/10W DC Water Flow Pump Generator Turbine Generator Water Flow Hydraulic DIY - F50-80V

3C1 80V/10W DC Water Flow Pump Generator Turbine Generator Water Flow Hydraulic DIY - F50-80V

Regular price Dhs. 60.00
Regular price Sale price Dhs. 60.00
Sale Sold out
View full details

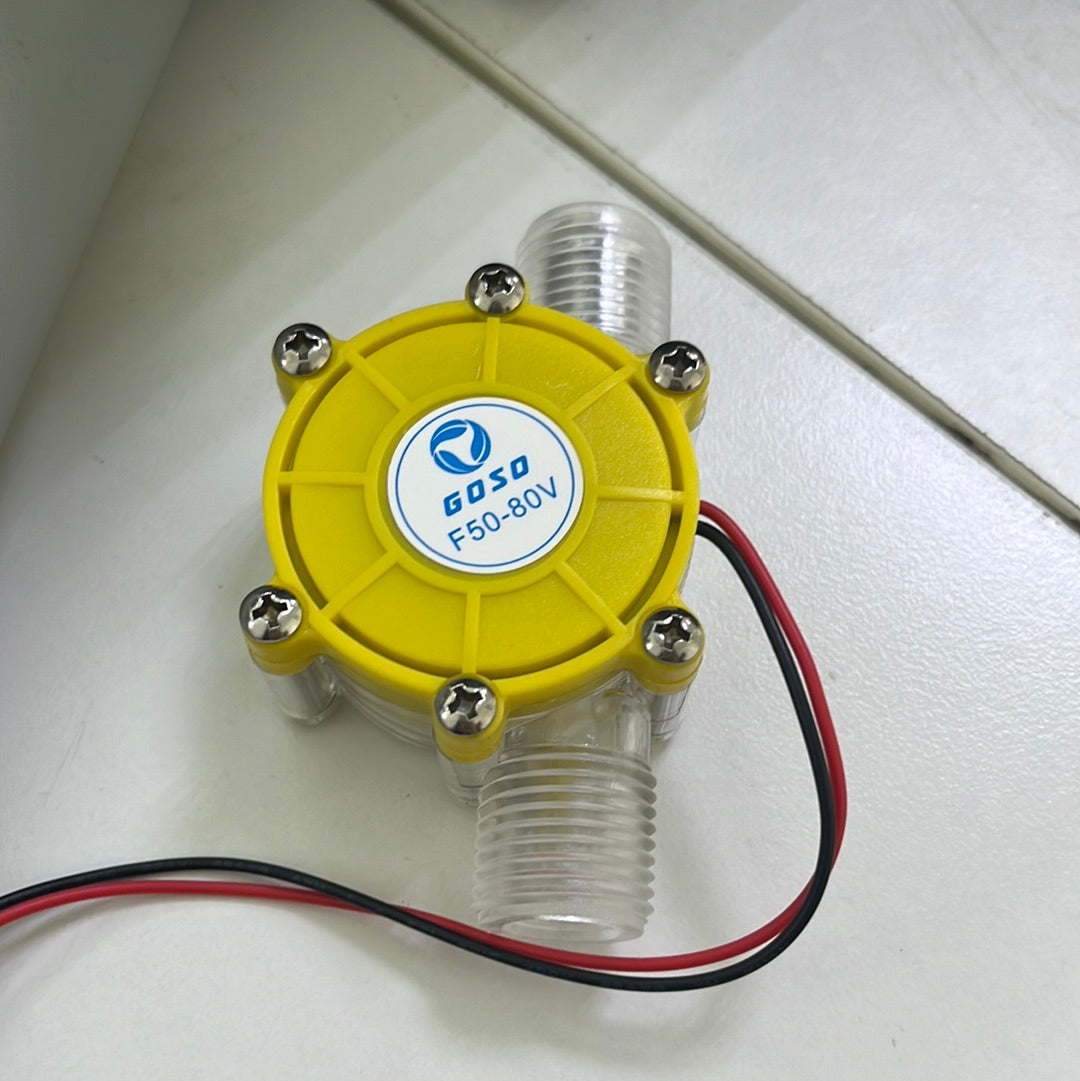

10 W Water Flow Pump Micro Hydro Turbine Generator Hydraulic Flow Generator 80 V

Ideal for converting energy from water into electrical mechanical energy equipment

Irectly used to charge a small battery , mobile phone, or power supply lights LED, etc.

Output voltage : Max. 80V (1.2Mpa)

Current Output Max. ≥220mA (80V)

Resistance line 10.5 ± 5Ω

Insulation Resistance 10MΩ (DC100 megohmmeter)

Losed Outle T Compression : Max. 0.6Mpa

Open Outle Compression Max. 1.2Mpa

Starting water pressure 0.05Mpa

Axial clearance 0.2-1.0mm

Mechanical noise ≤55dB

Output characteristics: the output voltage without the voltage regulator circuit is proportional to the water pressure

Installation: household standard 1/2 inch water pipe  ( outer diameter 20mm inner diameter 13mm
