Blue PCB Electronics

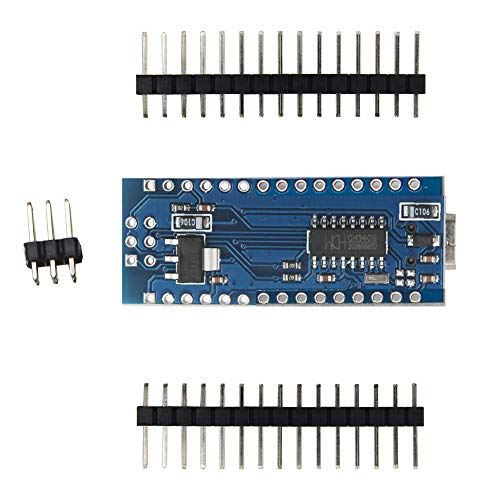

1C7 Arduino Nano v3 ATMEGA328P - ch340 - unsoldered

1C7 Arduino Nano v3 ATMEGA328P - ch340 - unsoldered

Regular price Dhs. 30.00
Regular price Sale price Dhs. 30.00
Sale Sold out
View full details

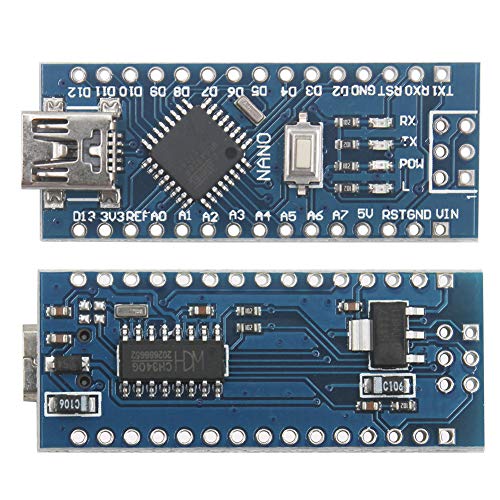

The Arduino Nano is a microcontroller board based on the ATmega328P. It is a compact and breadboard-friendly device, making it ideal for a wide range of projects. The board features 14 digital I/O pins, 8 analog inputs, and a clock speed of 16 MHz. These features make the Nano an excellent choice for projects that require a small and flexible microcontroller board.

The Arduino Nano is user-friendly and suitable for both beginners and advanced users. For those new to electronics and programming, the Nano is a great starting point, as it provides a solid foundation for further exploration. Its compact form factor, simple connectivity options, and ease of use make it an accessible tool for learning about microcontroller boards.

For more advanced users, the Arduino Nano can be used to create a variety of projects, ranging from home automation systems to robots and beyond. Its small size and flexible inputs and outputs make it ideal for projects that require a discreet microcontroller board, such as wearable technology and portable devices. The Nano is well suited for small-scale projects, and its micro-USB port provides a convenient method for programming and powering the device.


  • Microcontroller: Atmel ATmega328P
  • Operating Voltage (logic level): 5 V
  • Input Voltage (recommended): 7-12 V
  • Input Voltage (limits): 6-20 V
  • Digital I/O Pins: 14
  • PWM Pins: 6
  • Analog Input Pins: 8
  • DC Current per I/O Pin: 40 mA
  • Flash Memory: 32 KB (of which 2KB used by bootloader)
  • SRAM: 2 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz
  • Bootloader: Installed
  • USB Driver: CH340

Project Ideas

  • Home automation systems: Control lights, appliances, and other home devices with the Nano.
  • Wireless remote controls: Create a custom remote control for various devices and appliances.
  • Robots: Control motors, servos, and sensors in a robot project.
  • Wearable technology: Incorporate the Nano into wearable devices and fashion tech.
  • Portable devices: Power and control portable devices such as handheld games and GPS trackers.
  • Custom-controlled fans: Create a custom fan controller for fans in a computer or other device.
  • Temperature sensors: Build a temperature sensing device for various applications.
  • LED lighting systems: Control and customize LED lighting for various projects.
  • Plant monitoring systems: Create a system to monitor the health and growth of plants.
  • Environmental monitoring systems: Monitor temperature, humidity, and other environmental factors.
  • Automated pet feeders: Build a device to automatically feed pets on a schedule.
  • Smart home security systems: Monitor and control access to a home with the Nano.
  • Weather monitoring systems: Build a weather monitoring system to track temperature, rainfall, and more.
  • Music and sound systems: Control and customize music and sound systems.
  • Customized gaming controllers: Create custom controllers for video games.
  • Light-sensitive controllers: Build a device to control lights based on ambient light levels.
