Description

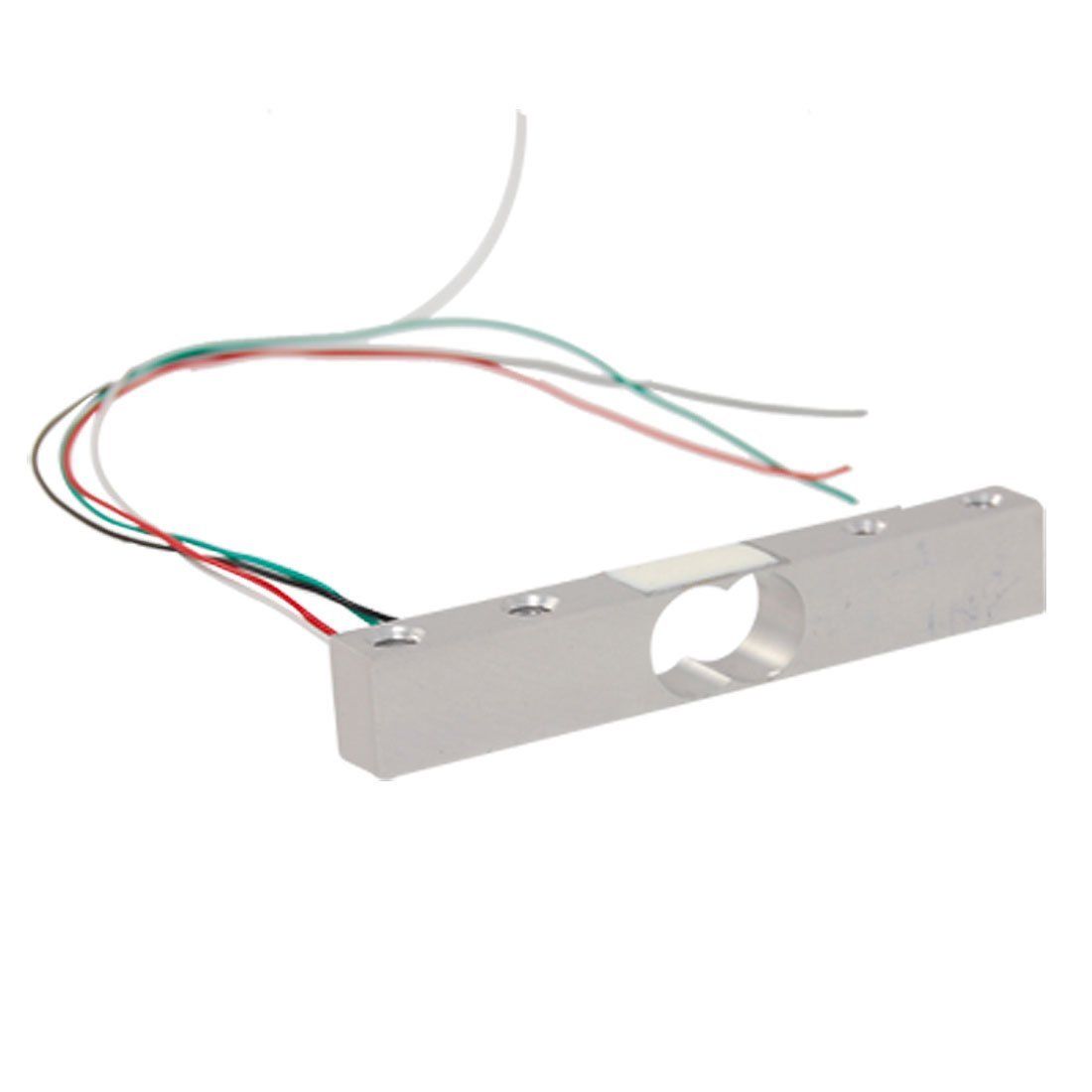

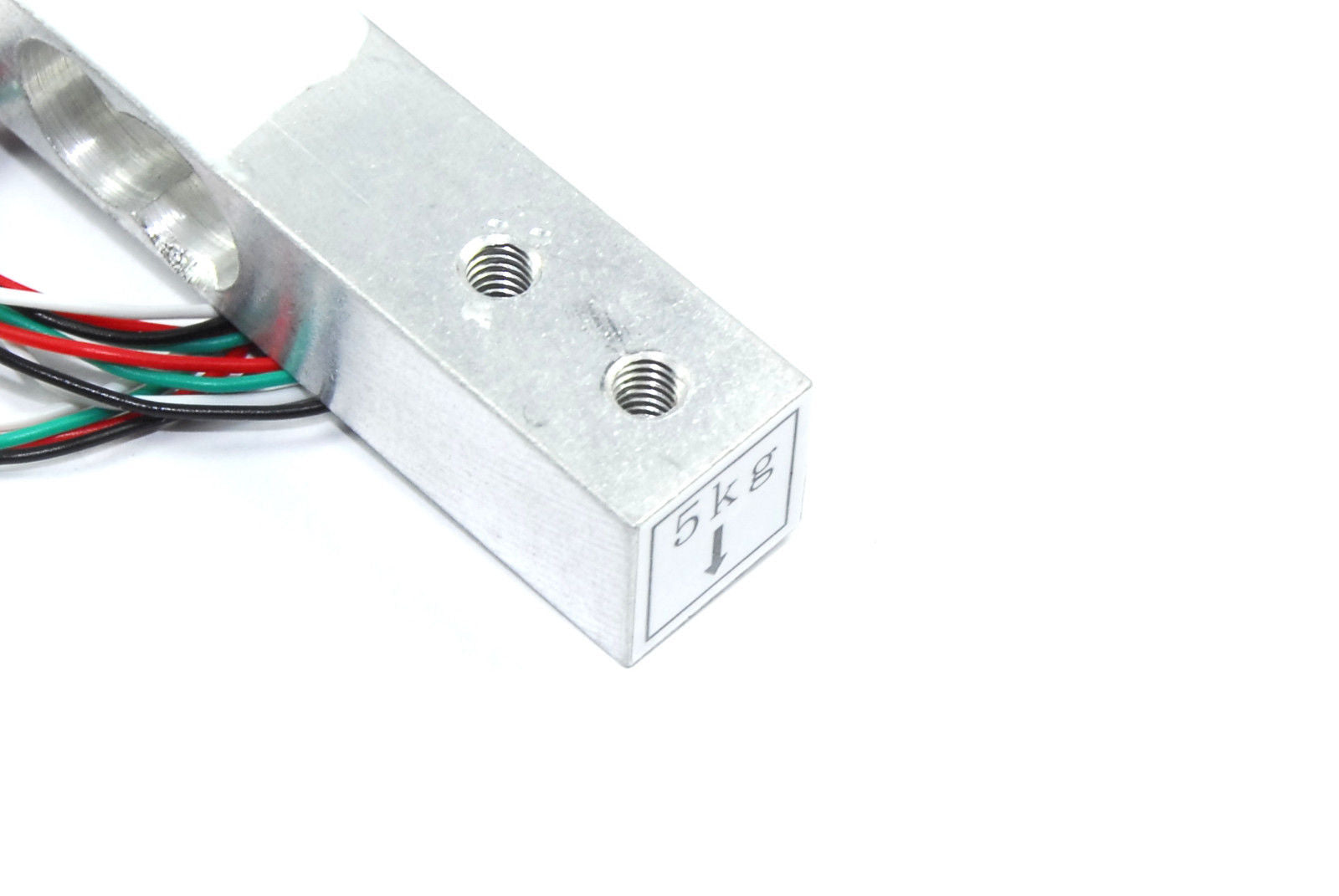

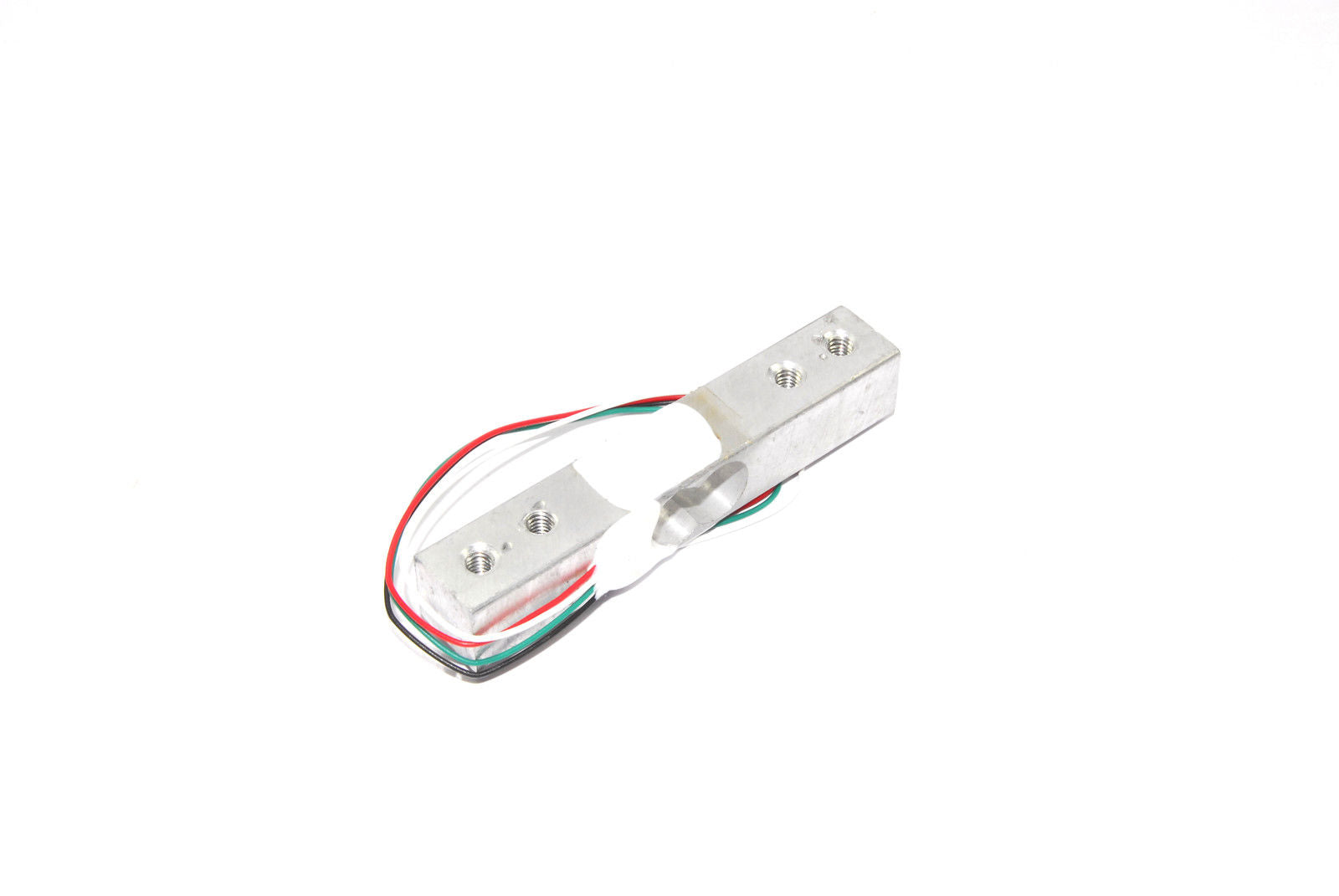

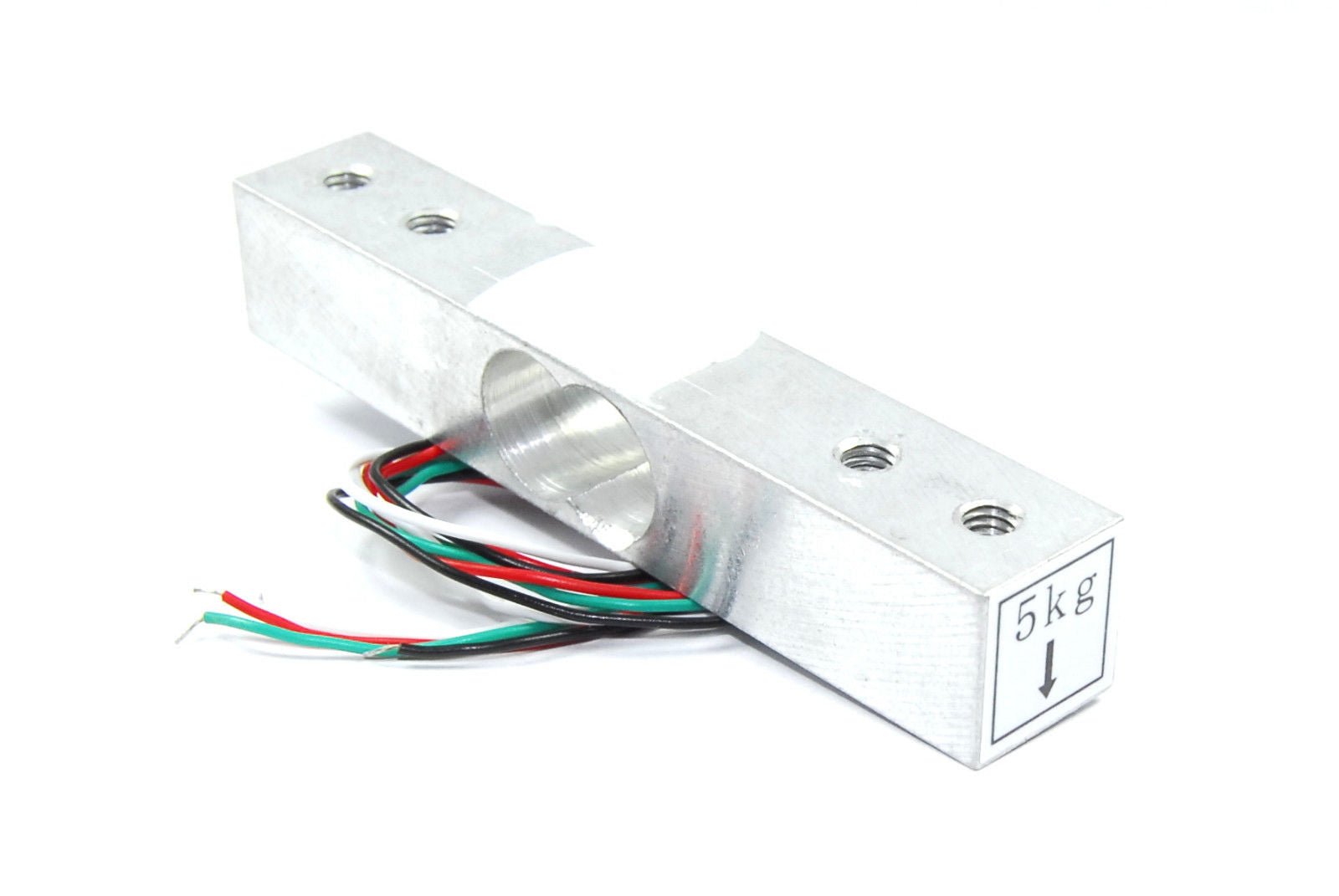

The Weight Load Cell Strain Gauge Sensor with a 5kg capacity is a precision instrument designed for accurate weight measurement applications. This strain gauge sensor utilizes technology to convert mechanical force into electrical signals, providing reliable and precise weight data. With a 5kg capacity, it is well-suited for applications requiring sensitivity to relatively light loads. The load cell is made of aluminum alloy and is a straight bar design. Whether used in industrial settings or research laboratories, the Weight Load Cell Strain Gauge Sensor with a 5kg capacity offers a dependable solution for applications demanding accurate and consistent weight measurements.
Features:
- High-precision: The kit uses a 5kg load cell and a high-precision 24-bit ADC amplifier module to provide accurate weight measurements.
- Adjustable gain: The amplifier module has a programmable gain amplifier with a maximum gain of 128, allowing for greater sensitivity in weight measurements.
- Two analog input channels: The amplifier module has two analog input channels, providing greater flexibility in measurement applications.
- Bridge voltage input: The input circuit of the amplifier module can be configured to provide an electrical bridge voltage, which is particularly useful for measuring pressure and weight.
Specification:
- Capacity: 5kg / 2.2 lbs
- Recommend Excitation Voltage: 5V DC
- Max Excitation Voltage: 10V DC
- Rated Output: 1.2 ± 0.1 mV/V
- Overall Precision: 0.02% F.S
- Input Resistance: 1066 ± 20 Ohm
- Output Resistance: 1000 ± 20 Ohm
- Insulation Resistance: 2000 Ohm
- Working Temperature: -20 ~ +60°C
- Compensated Temperature Range: -10°C ~ +65°C
- Safety Overload: 120%
- Total Size: 80 x 13 x 12mm (L x W x T)
- Thread Hole: M4 Screw
- Cable Length: 150mm / 6"
- Material: Aluminium Alloy
- Weight: 27g
Applications:
- Kitchen scales: The kit can be used to create a precise weighing scale for cooking or baking applications.
- Luggage scales: The kit can be used to create a portable luggage scale to measure the weight of bags and suitcases.
- Industrial weighing: The kit can be integrated into industrial equipment to measure the weight of various products or materials.
- Agriculture: The kit can be used to measure the weight of livestock, feed, and other agricultural products.
- Robotics: The kit can be used to create a robotic arm or gripper that can lift and weigh objects with high precision.
- Medical equipment: The kit can be used to create medical devices that require precise weight measurements, such as infant scales or hospital bed weight sensors.
- Fitness equipment: The kit can be used to create fitness equipment that tracks weightlifting progress or measures body weight.
- Logistics and shipping: The kit can be used to create a system that measures the weight of packages and determines shipping costs.

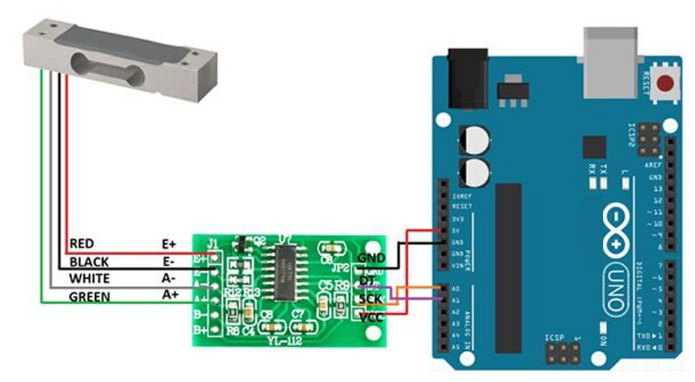

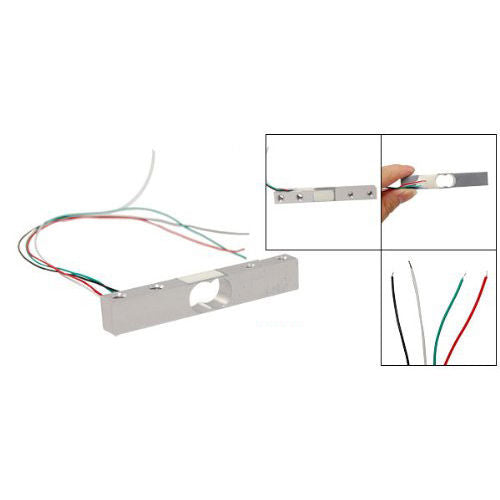

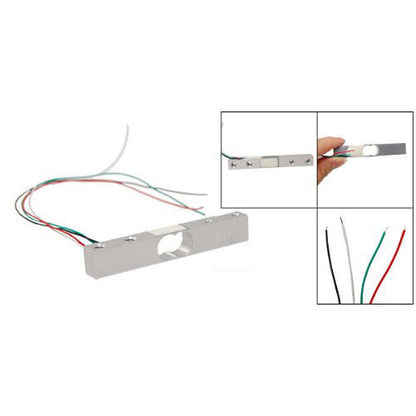

Pin Connections:
| Wire Color | Description |
|---|---|
| Red | VCC (E+) |
| Black | GND (E-) |
| White | Output – (A-) |
| Green | Output + (A+) |
Package Includes:
- 1 x Load Cell 5kg
