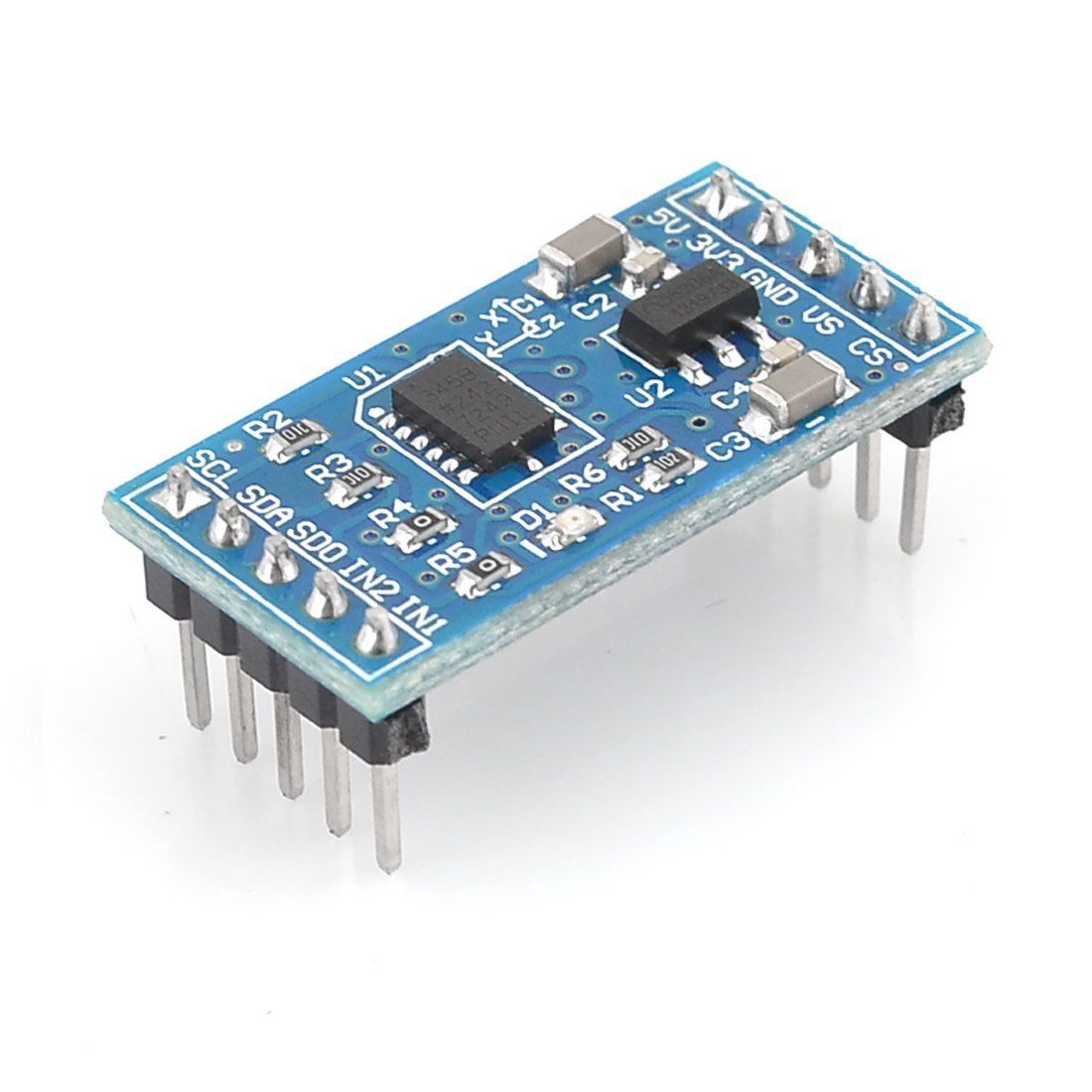

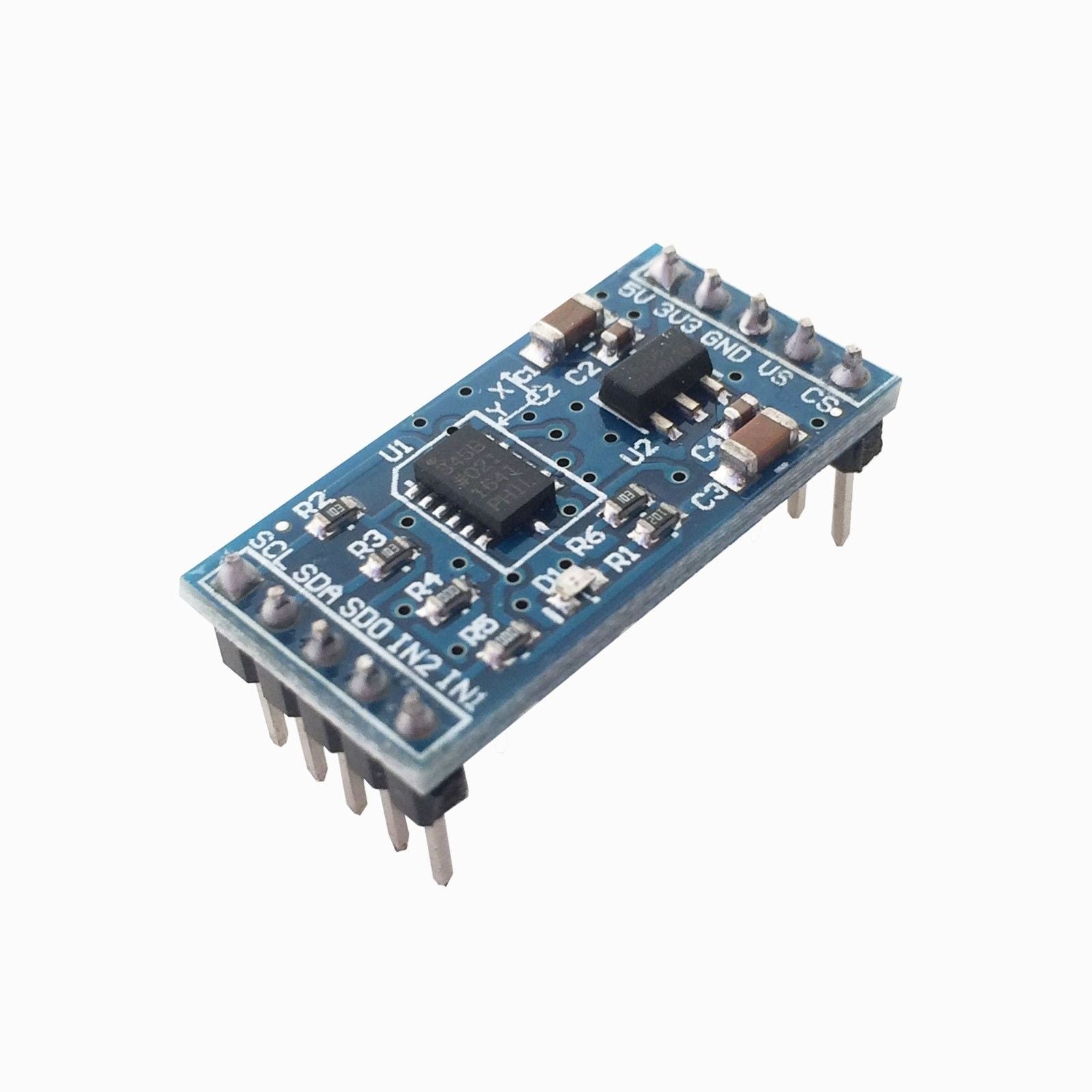

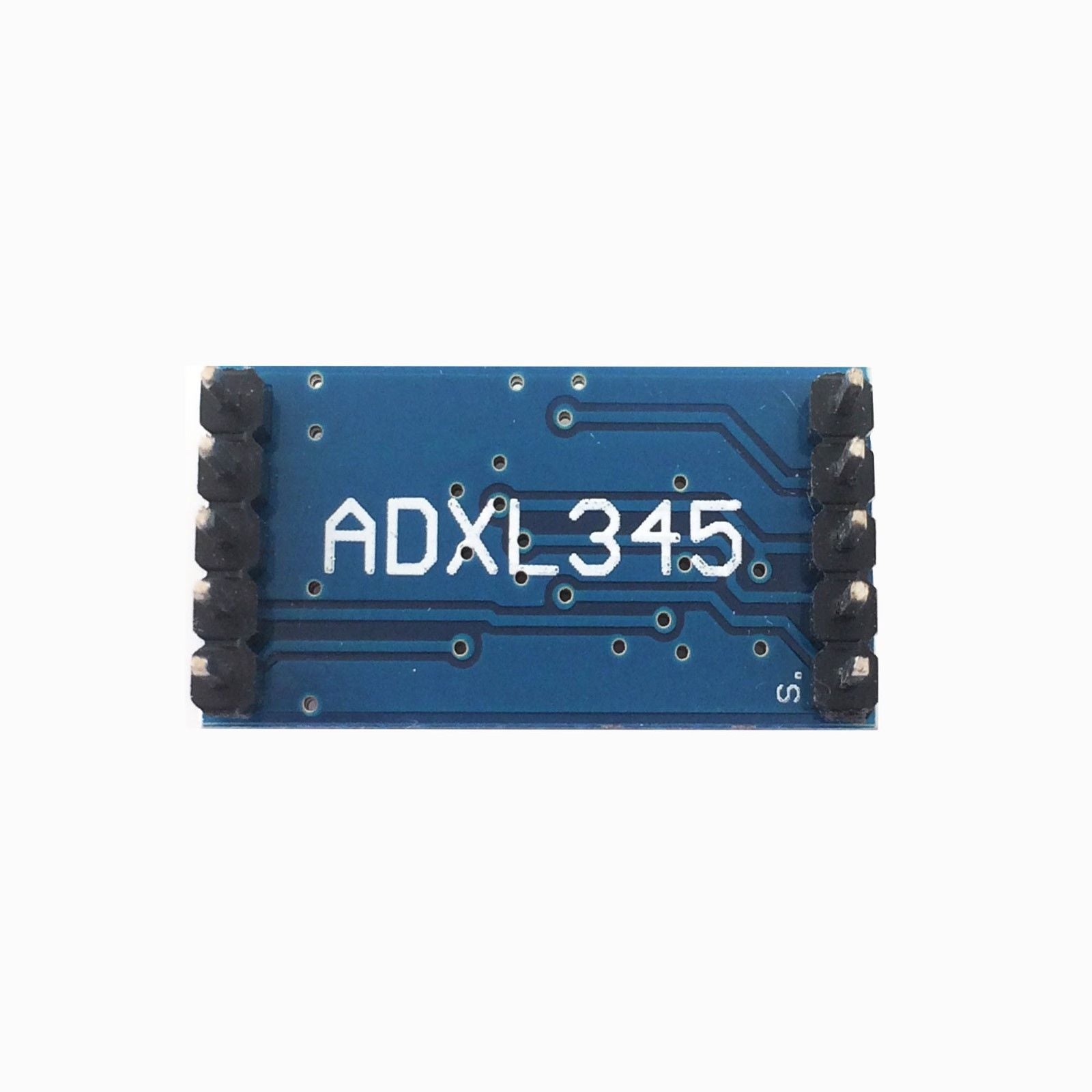

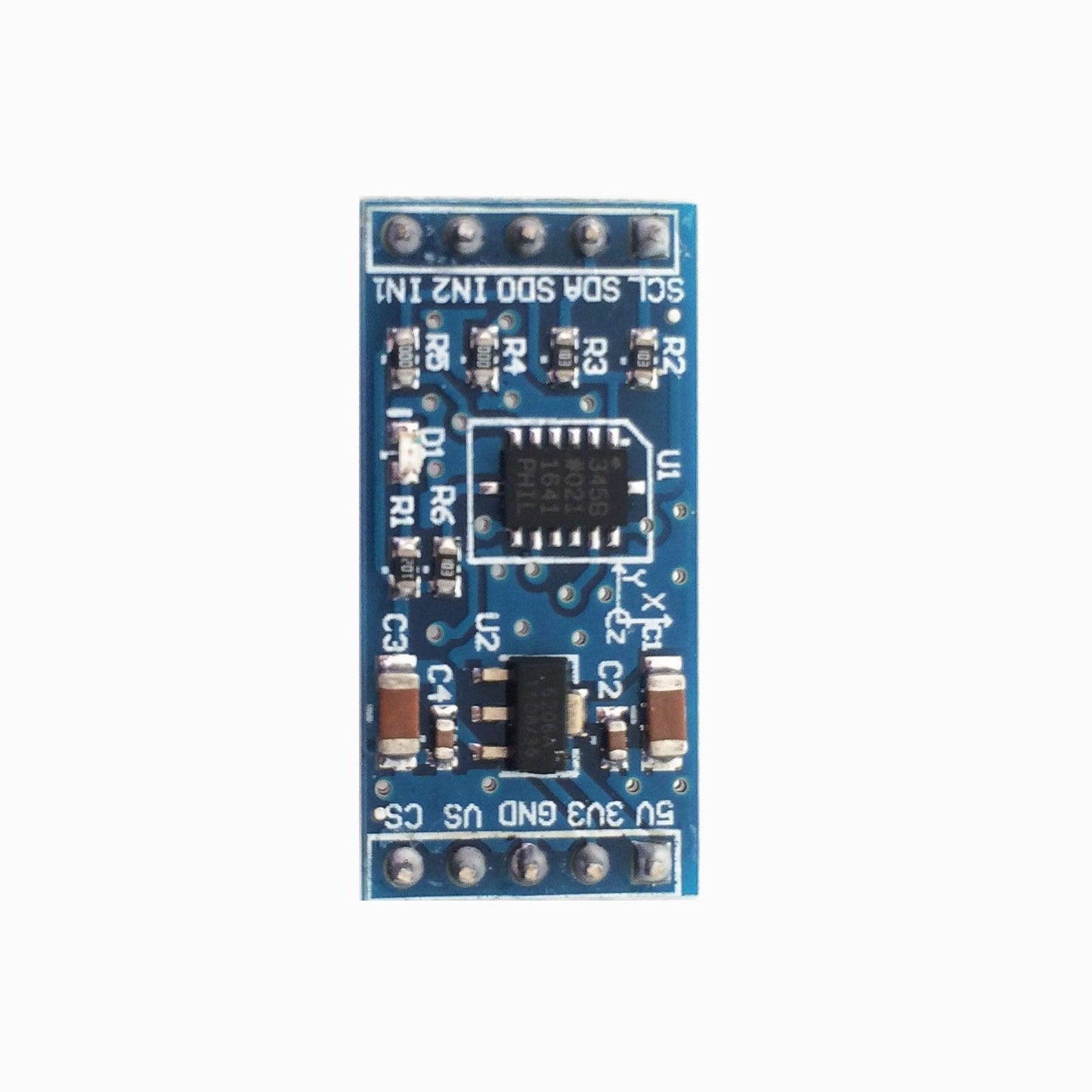

1B22 ADXL345 3-Axis Digital Acceleration of Gravity Tilt Module

1B22 ADXL345 3-Axis Digital Acceleration of Gravity Tilt Module

Regular price Dhs. 25.00
Regular price Dhs. 30.00 Sale price Dhs. 25.00
Sale Sold out
View full details


  • The ADXL345 is a small, thin, low-power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface.
  • The ADXL345 is well-suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°.



• Color: Blue
• Material: PCB + brass
• Features Chipset: ADXL345;
• Power supply :3~5V (Module has on-board 3.3V regulator)
• IO Level : 3.3v (requires Level translator if interfaced with 5V IO)
• Communication methods: IIC/SPI communication protocol;
• Measuring range: +/- 2g +/-16g; 3-Axis, +/- 2g; +/-4g; +/-8g; +/- 16g
• Applications: Flying robots, Stability control applications
• Dimensions: 21 x 16 x 4 mm / 0.83 x 0.63 x 0.16 inch
• Weight: 1 g / 0.04 oz


• Gesture Sensing
• Tap/Double Tap Detection
• Free-Fall Detection
• Impact or collision Detection
• Accident Detection
