Description

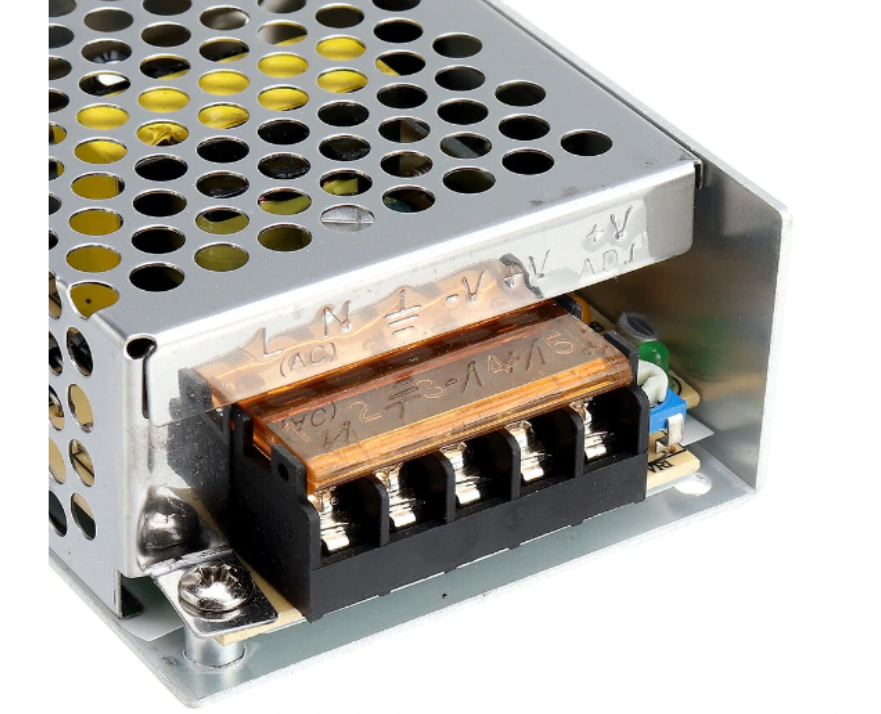

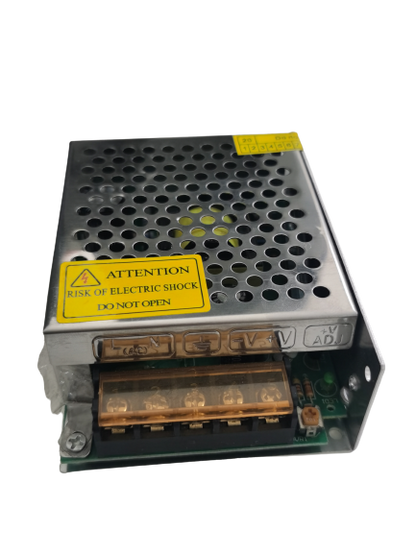

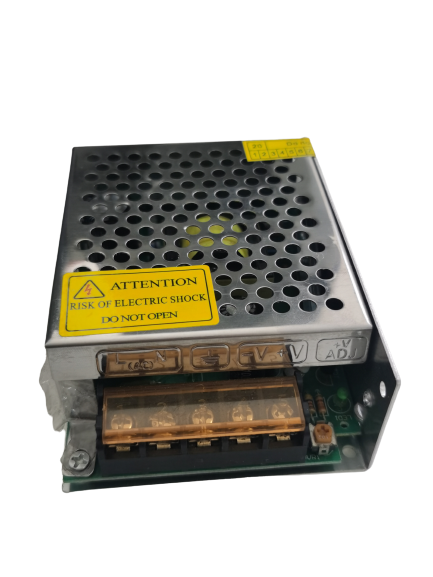

The AC 100-240V to DC 12V 5A 60W Switching Power Supply Module Driver Adapter is an electrical conversion device that transforms the alternating current from the wall grid (100-240V) into a direct current with a voltage of 12V and an amperage of 5A, while maintaining a power output of 60W. This device is useful when you need to power a DC load that requires a specific voltage and current level, but your power source is only available in AC form. It can be easily installed and generates minimal heat, making it a reliable solution for many applications.
Features
- Good anti-interference performance and high reliability.
- Low operating temperature and a long service life.
- Wide input voltage range (100–240 volts) in line with global usage standards.
- Good insulation performance and high electric strength.
- Full-load high-temperature burning machine, 100% aging test.
Specifications
- Model: HS-60-12
- DC output voltage: 12V
- Output voltage tolerance: ±1%
- Rated output current: 5A
- Output current range: 0–5A
- Ripple and noise: 100mVp-p
- Line stability: ±0.5%
- Load stability: ±0.5%
- DC output power: 60W
- Efficiency: 85%
- DC voltage adjustable range: ±10%
- Input voltage range: 100 ~ 240 VAC, 47 ~ 63Hz; 120 ~ 370 VDC
- Input current: 2A/115V, 1A/230V
- Inrush current: cold start current 30A/115V 60A/230V
- Leakage current: <3.5mA/240VAC
- Overload protection: 105%~150%
- Overvoltage protection: 15%–135%
- Temperature coefficient: ±0.03%/°C (0–50°C)
- Start, rise, hold time: 800ms, 50ms, 115VAC, 300ms, 50ms/230VAC
- Shock resistance: 10 Hz, 2G, / 1 cycle, a total of 60 points, each axle
- Pressure resistance: input and output: 3KvAC input and housing; 1.5KvAC output and housing; 0.5KvAC
- Isolation resistance: input and output, input and housing, output and housing: 500VDC/100MΩ
- Working temperature: -10 ° C - +60 ° C, 20% - 90% RH
- Storage temperature: -20 ° C -+85 ° C, 10% - 95% RH
- Dimensions: 85 × 60 × 34mm
Package Includes
- 1 x AC 100-240V to DC 12V 5A 60W Switching Power Supply Module
