Blue PCB Electronics

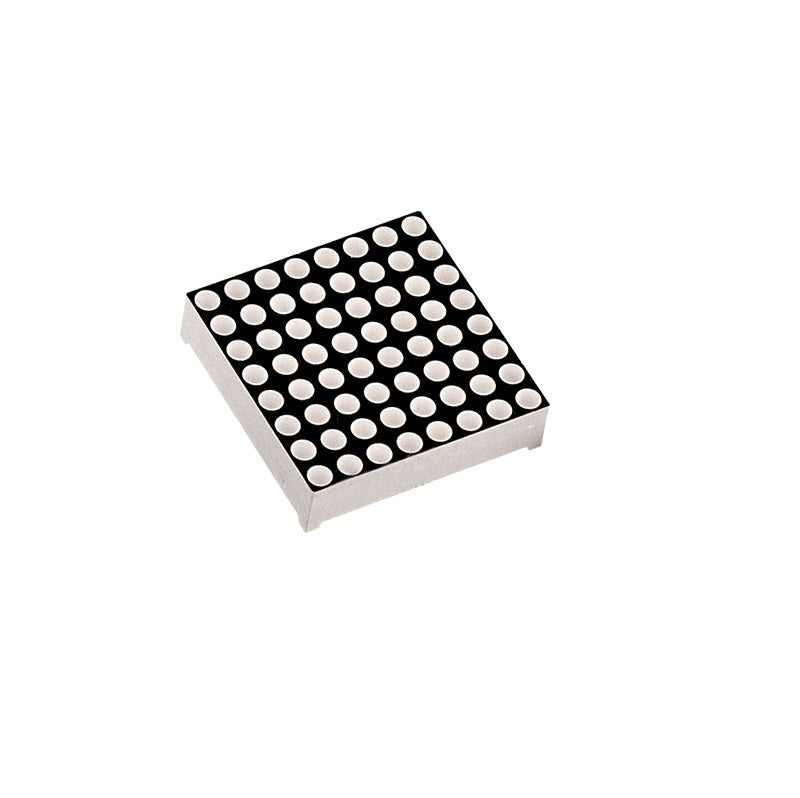

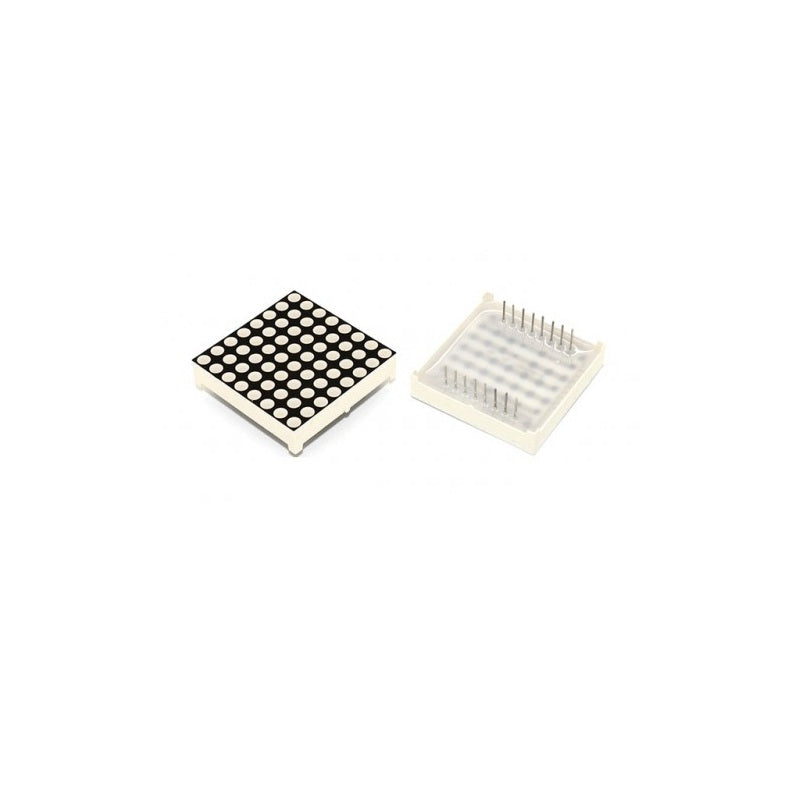

D5F 8*8 dot matrix module 3mm

D5F 8*8 dot matrix module 3mm

Regular price Dhs. 15.00
Regular price Sale price Dhs. 15.00
Sale Sold out
View full details

Description

An 8x8 dot matrix is a type of light-emitting diode (LED) display that consists of a 2-dimensional array of 64 individual LEDs arranged in an 8x8 grid. It is commonly used in electronic devices and systems where a small, low-resolution display is required. The size of the dot matrix is typically measured in millimeters (mm) and determined by the size of the individual LEDs. In this case, the module is 3mm in size.

Specifications

Feature Description
Type Display
Configuration 8×8 Dot Matrix
Display Size 32mmx32mm
LED Size 3mm
DC Power Input 5V
Forward Voltage LED ON 2.1V – 2.5V
Forward Current LED ON 15mA – 20mA
Maximum Reverse Voltage 5V
Maximum Operating Temperature -25°C to +80°C
Power Dissipation 60mW
Soldering Temperature 260°C
Datasheet 8×8 dot matrix datasheet

Wiring instructions

  1. On the left block is an input port, and on the right is an output port.
  2. When controlling a single module, simply enter the port and receive a CPU.
  3. The cascaded output input termination CPU, the input output termination module of the first two modules of the first one, the first two modules of the termination input terminal of the three modules, and so on.

Applications

Real life applications where 8×8 dot matrix displays are used or can be used:

  • Ideal for  indoor and outdoor displays due to their visibility in daylight, e.g. in elevators
  • Used to display information on devices such as clocks, watches, calculators, etc.
  • Used in mechanical and medical equipment to display information.

Package Includes

  • 1 x MAX7219 8*8 dot matrix module
