2C2 650nm Laser Transmitter Module KY-008

2C2 650nm Laser Transmitter Module KY-008

Regular price Dhs. 15.00
Regular price Dhs. 20.00 Sale price Dhs. 15.00
Sale Sold out
View full details

Description

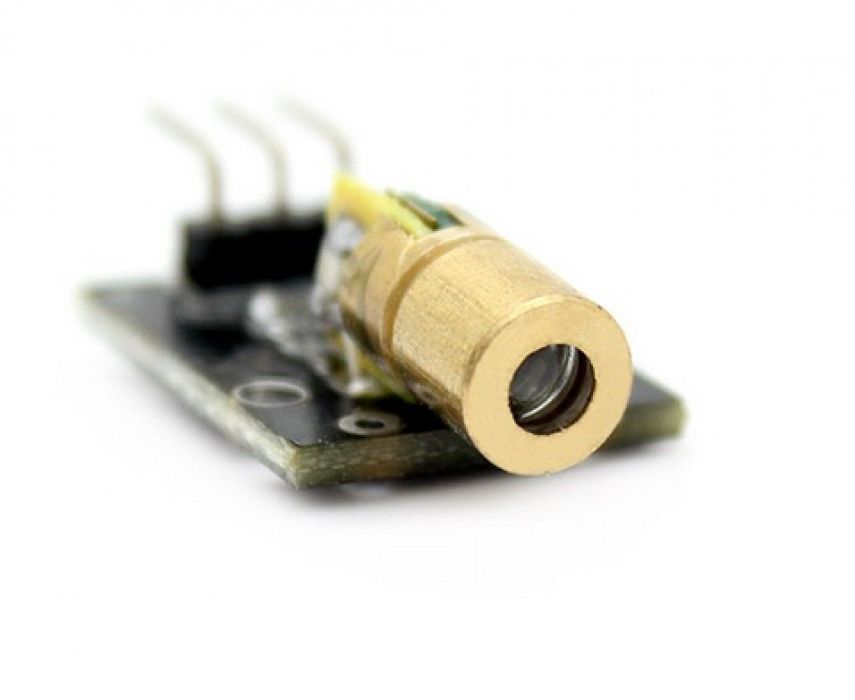

This small laser transmitter module works on 5V. The laser outputs a beam of 650nm (red) of approximately 5mW. Connect this module to a motor as an interactive laser pointer. By moving the laser quickly, it is also possible to make a simple projection.

NB: The signals on the module may be incorrectly indicated, if the module does not work properly, connect [S] to GND and the [-] to +5VDC.

Properties

Brand information
Brand Opencircuit house brand
Model 10227

Size info
Length 15 mm
Width 24 mm
Height 8 mm
Weight 2,2 g

Specifications

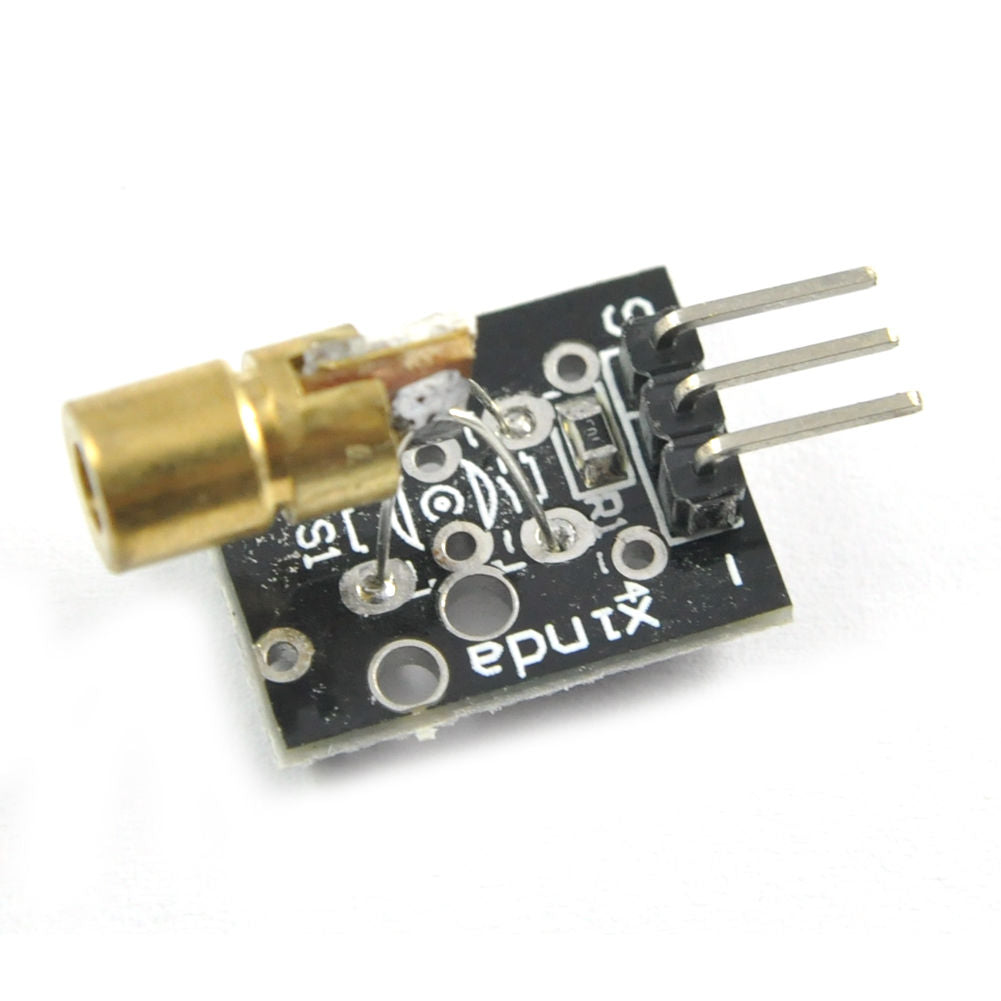

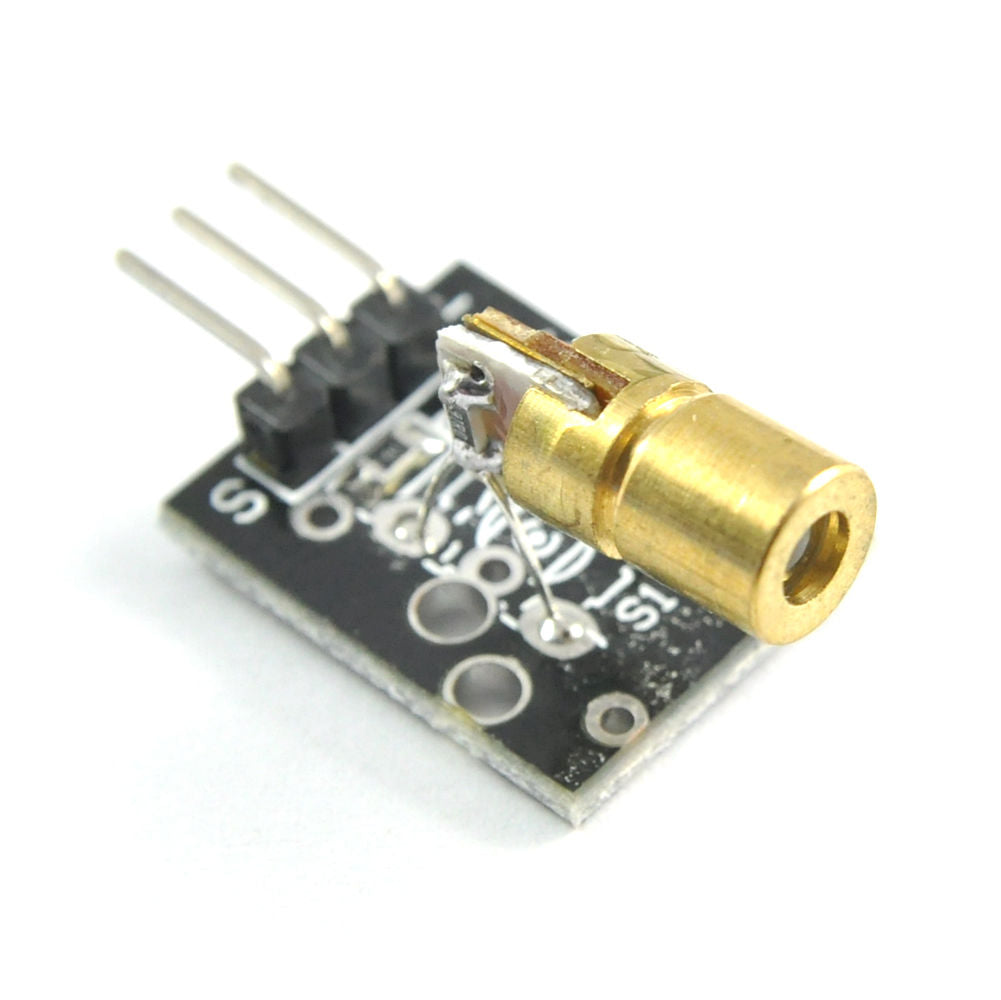

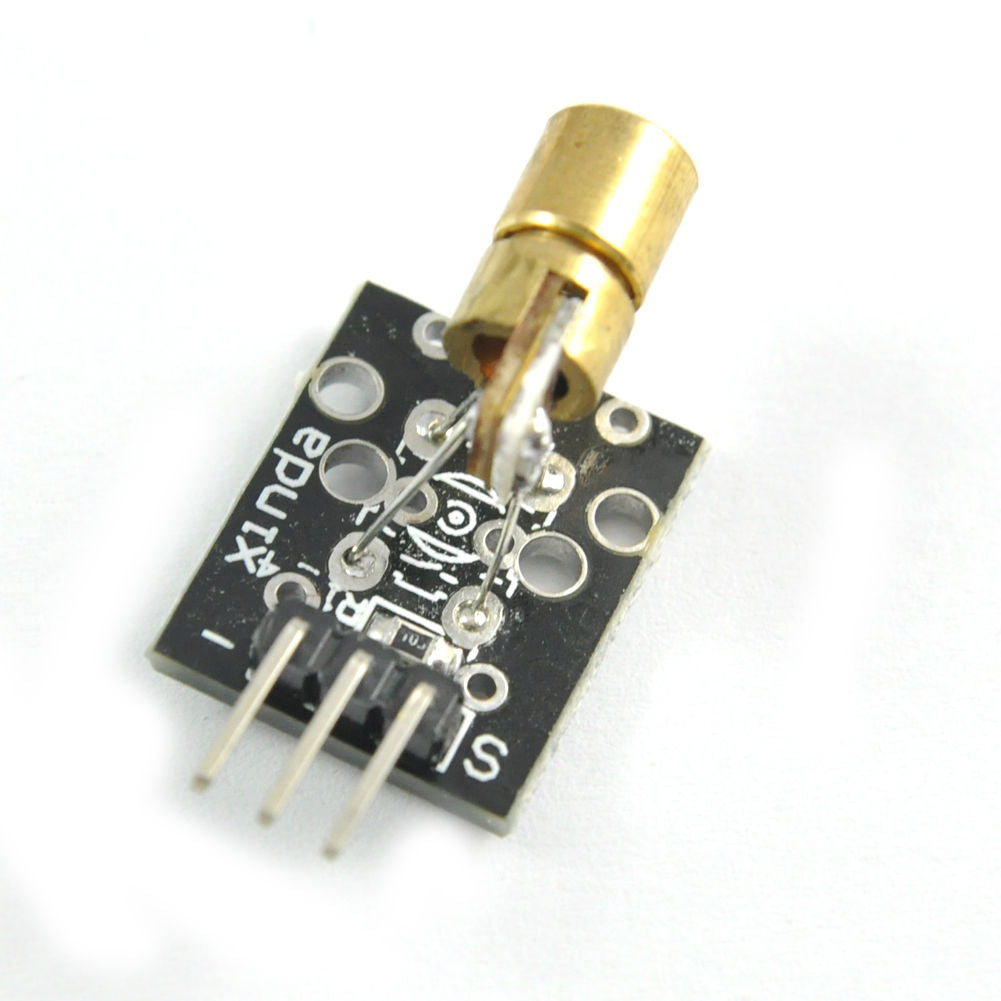

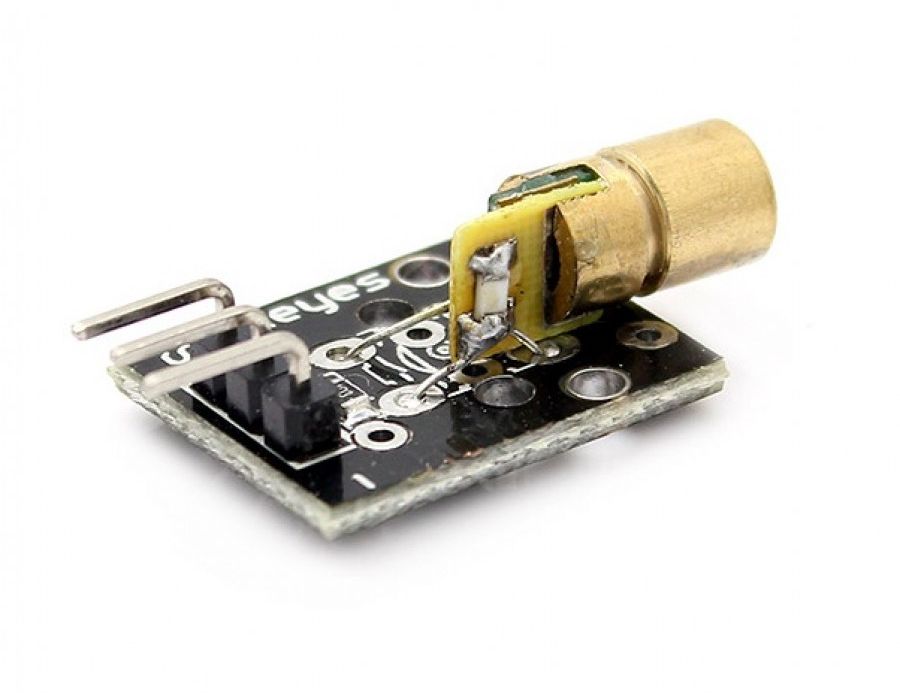

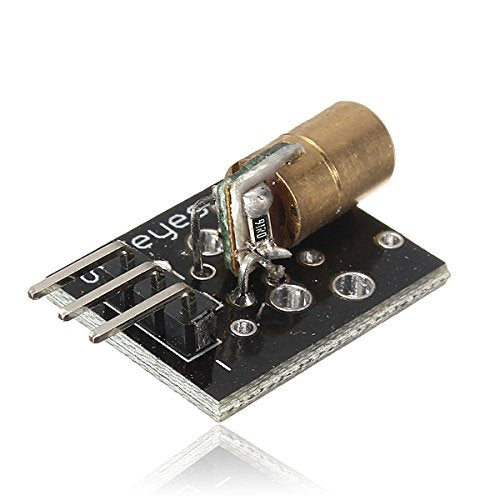

This module consists of a 650nm red laser diode head, a resistor and 3 male header pins. Handle with caution, do not point the laser beam directly to the eyes.

Operating Voltage 5V
Output Power 5mW
Wavelenght 650nm
Operating Current < 40mA
Working Temperature -10°C ~ 40°C [14°F to 104°F]
Board Dimensions 18.5mm x 15mm [0.728in x 0.591in]

Connection Diagram

Connect the module signal pin (S) to pin 13 on the Arduino and ground (-) to GND.

The middle pin on the module is not used.

KY-008 Arduino
S Pin 13
middle
GND

Arduino KY-008 connection diagram

KY-008 Arduino code

The following Arduino sketch is a laser blinker. It will continually turn the laser on and off in one second intervals.


int laserPin = 13;

void setup() {
	pinMode(laserPin, OUTPUT);  // Define the digital output interface pin 13
}

void loop() {
	digitalWrite(laserPin, HIGH); // Turn on the laser head
	delay(1000); // wait for one second
	digitalWrite(laserPin, LOW); // Turn off the laser head
	delay(1000);
}
