2A17 GSM/GPRS/3G Built IN Circuit Board Antenna 1.13 Line 15cm Long IPEX Connector

2A17 GSM/GPRS/3G Built IN Circuit Board Antenna 1.13 Line 15cm Long IPEX Connector

Regular price Dhs. 10.00
Regular price Sale price Dhs. 10.00
Sale Sold out
View full details

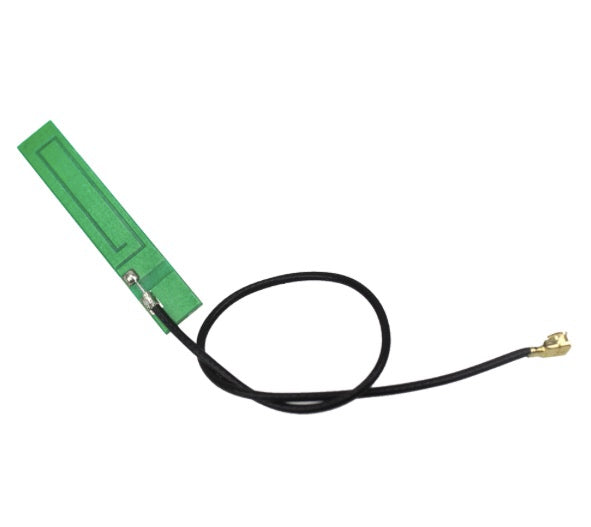

HS0293 GSM/GPRS/3G Built IN Circuit Board Antenna 1.13 Line 15cm Long IPEX Connector

Name: 2G 3G IPEX antenna

   Connector type: ipx13

   In the definition of Bobbi: S.W.R <= 1.8

   Gain definition: 3dBi (*Typical*)

   Frequency band definition: 1710~2170MHz 800~960

   Impedance definition: 50 ohm

   Total length: as shown in Figure

   Electrical Characteristics A.

   S.W.R. 3 @ MHz & 880~960

   <=2.5 @ MHz 1710~1800

   Impedance 50 Ohm

   Material B.

   Of Radiator PCB Material

   Type I-Pex or I-Pex compatible Connector

   Environmental C.

   Temperature Operation - 30 degrees C ~ + 85 degrees C

   Temperature Storage - 30 degrees C ~ + 85 degrees C
