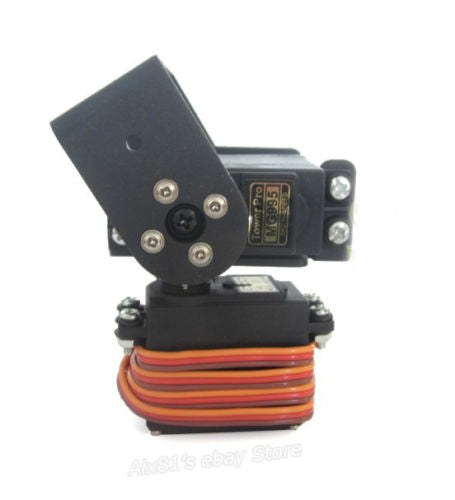

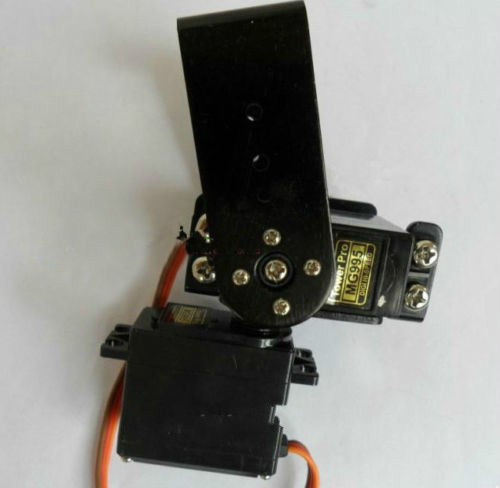

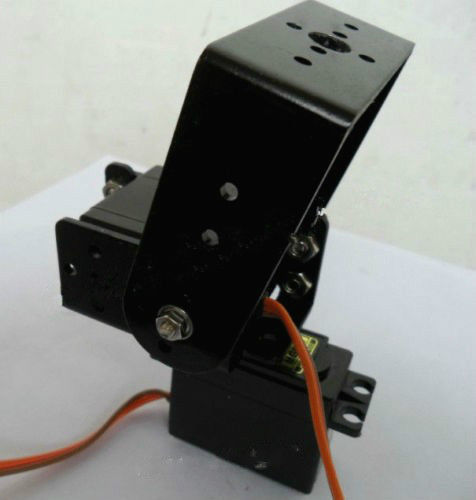

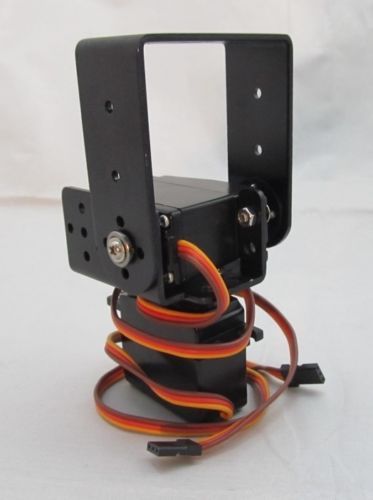

2B19 2 DOF Pan and Tilt + 2 MG995 Servos Mount for Arduino Robot DIY

2B19 2 DOF Pan and Tilt + 2 MG995 Servos Mount for Arduino Robot DIY

Regular price Dhs. 250.00
Regular price Sale price Dhs. 250.00
Sale Sold out
View full details

Description

The 2 TOF MG995 Mount is high-torque, cost-effective, vertical, and directional; its convenient to install the cameras; plus, mounted infrared sensors or ultrasonic ranging sensors can be detection devices; the robot can sense around obstructions, enabling its obstacle avoidance capabilities. In this course, you can install a variety of sensors and steering gear controls to complete a variety of innovative interactive works. Products are components that need assembly.


Features

  • Using two MG995 servos
  • Aluminum Matte Black Plastic Coat Pan and Tilt for horizontal surface, unassembled
  • Can plant a camera or IR sensor for a robot
  • The plank kit is very light, weighing only 41g
  • total weight is 180g (including two servos)


Servo parameters:


  • Construction Material: copper teeth, coreless motor, double ball bearing
  • Cable length: 30 cm; the signal line (yellow line) red (power line), dark (ground)
  • Size: 40.7 * 19.7 * 42.9mm
  • Weight: 55g
  • Reaction speed: no load speed of 0.17 seconds / 60 degrees (4.8V); 0.13 sec / 60 degrees (6.0V)
  • Work dead zone: 4 microseconds
  • Plug Specifications: JR FUTABA Universal
  • Operating voltage: 4.5V–5V
  • Working torque: 13 kg/cm
  • Operating temperature: -30 to +60 degrees Celsius
  • Suitable models: biped robot, robot / remote control car for 50–90 grade methanol fixed-wing aircraft and 26–50 cc gasoline and other fixed-wing aircraft models

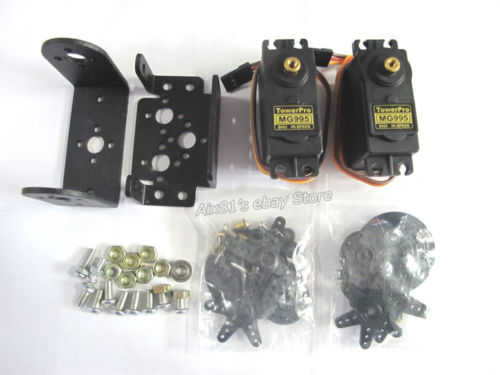

Package includes

  •    2 x MG995 Servo

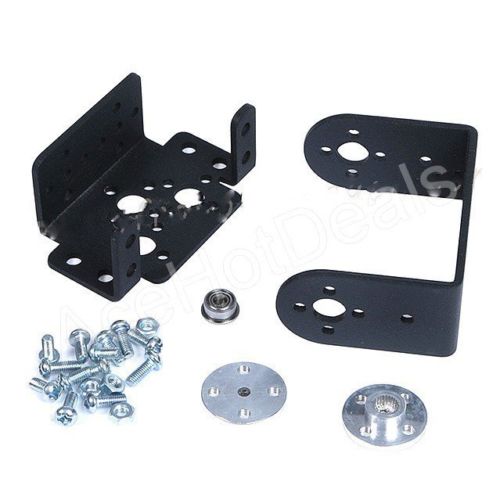

  •    1 x Aluminum multifunction steering bracket
  •    1 x Aluminum short U-shaped steering bracket
  •    2 x small round helm * 2
  •    1 x cup of imported bearings with disabilities
  •    Screws, nuts
