2.8" TFT LCD Touch Screen Shield Expansion Board for Arduino

  • Sale
  • Dhs. 65.00
  • Regular price Dhs. 120.00


Delivery within UAE in 2 Days

About 2.8inch TFT LCD Shield:

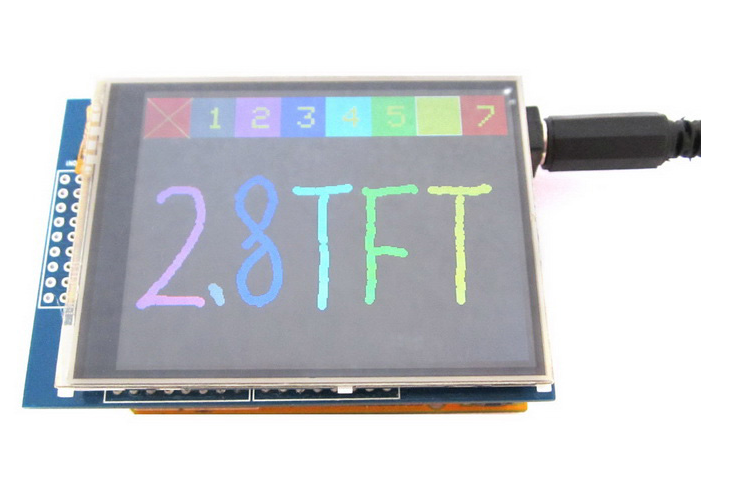

- Arduino UNO R3 and its compatible board can use it directly to display characters, graphics and BMP format images. And touch controlling is available;
- Arduino library: Adafruit-TFTLCD, Touch Screen and Adafruit-GFX;
- Touch screen type: resistive touchscreen.
- Touch Pen: length is 9cm;
- Resolution: 240X320;
- Display size: 2.8 inch;
- Operating voltage: 5V;
- Logic level: 5V / 3.3V;
- On-board 3.3V / 300mA regulator circuit;
- Operating current: the maximum is 150mA without TF card;
- Use the A0 ~ A4 pins, D2 ~ D13 pins. If you do not use TF card, you can use the D10 ~ D13;

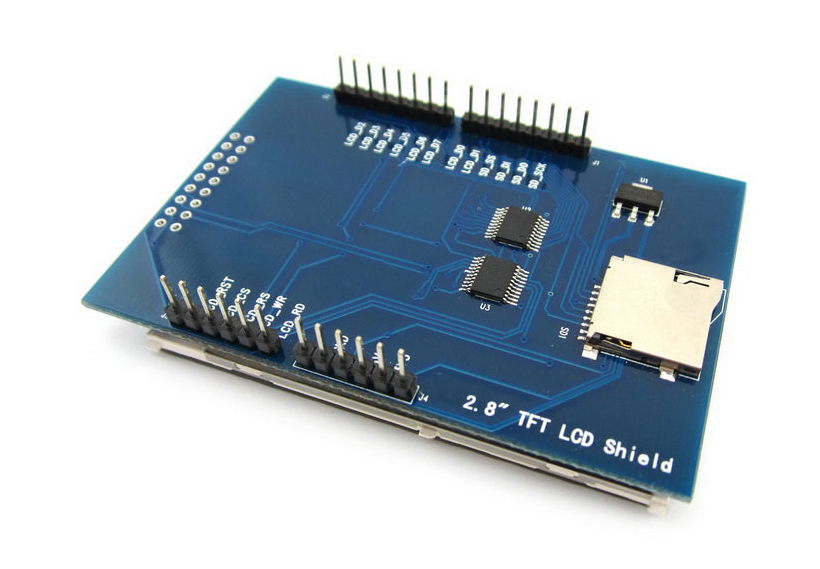

- Onboard Micro SD slot, support 2GB Micro SD / TF Card.

General
Model N/A
Quantity 1 set
Form Color Blue + Black
Material PCB + plastic
Specification
English Manual / Spec Yes
Download Link http://pan.baidu.com/s/1hqjMOQg
Dimensions & Weight
Dimensions 3.07 in x 2.05 in x 0.63 in (7.8 cm x 5.2 cm x 1.6 cm)
Weight 1.27 oz (36 g)
Packing List

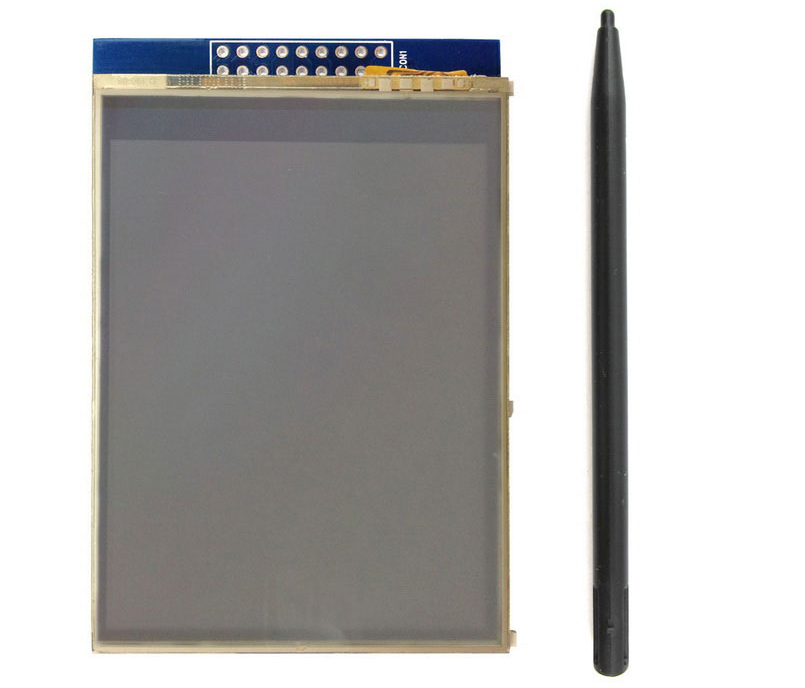

1 x 2.8" TFT LCD shield
1 x Touch pen
