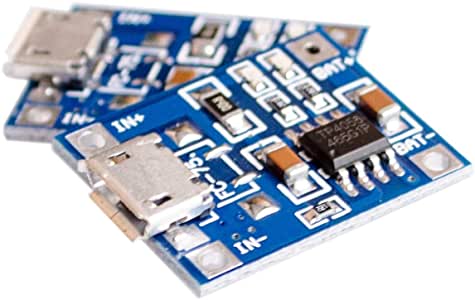

1B12 TP4056 Micro USB 5V 1A 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection Dual Functions 1A Li-ion

1B12 TP4056 Micro USB 5V 1A 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection Dual Functions 1A Li-ion

Regular price Dhs. 15.00
Regular price Sale price Dhs. 15.00
Sale Sold out
View full details

Description:

1. Micro USB input terminal with a female, can be directly input to do with the phone charger rechargeable lithium battery, And still retains the input voltage wiring pads, can be very convenient DIY.

2. It can be used for voltage 3.6 3.7V, etc. 18650, polymer and other lithium battery charge, and discharge protection.

3. Input Voltage:  5V

4. Charging cut-off voltage:   4.2V ± 1%

5. Maximum charge current:  1000mA

6. Battery over-discharge protection voltage:  2.5V

7. Battery overcurrent protection current:   3A

How to Use:

1. Input port with micro 5pin USB female, can directly use mobile charger for input to the lithium battery,and still retain the input voltage wiring solder joints, can be very convenient.
2. Connect the battery to B + B – , insert mobile phone charger to the USB Female then red light is charging and green is full of charged.

Features:

The module uses a very mature charge chip 4056, the external circuit is simple, good protection, high charging accuracy.
This module is mechanical automated processing, all-chip parts manufacturing, each module will be tested before shipment, high reliability.
The module current can be adjusted, as long as the change in the circuit board fixed resistance, you can change the output caused 100mA-1000mA, very convenient.

Package Includes:
1 X Lipo Charger Module
