1B2 1602 LCD Board Keypad Shield For Arduino UNO MEGA

1B2 1602 LCD Board Keypad Shield For Arduino UNO MEGA

Regular price Dhs. 41.00
Regular price Dhs. 50.00 Sale price Dhs. 41.00
Sale Sold out
View full details

Description

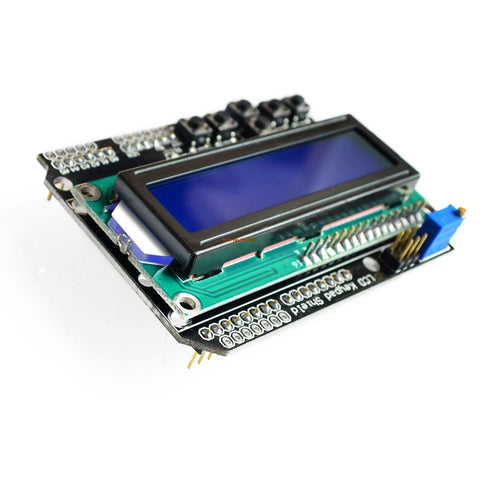

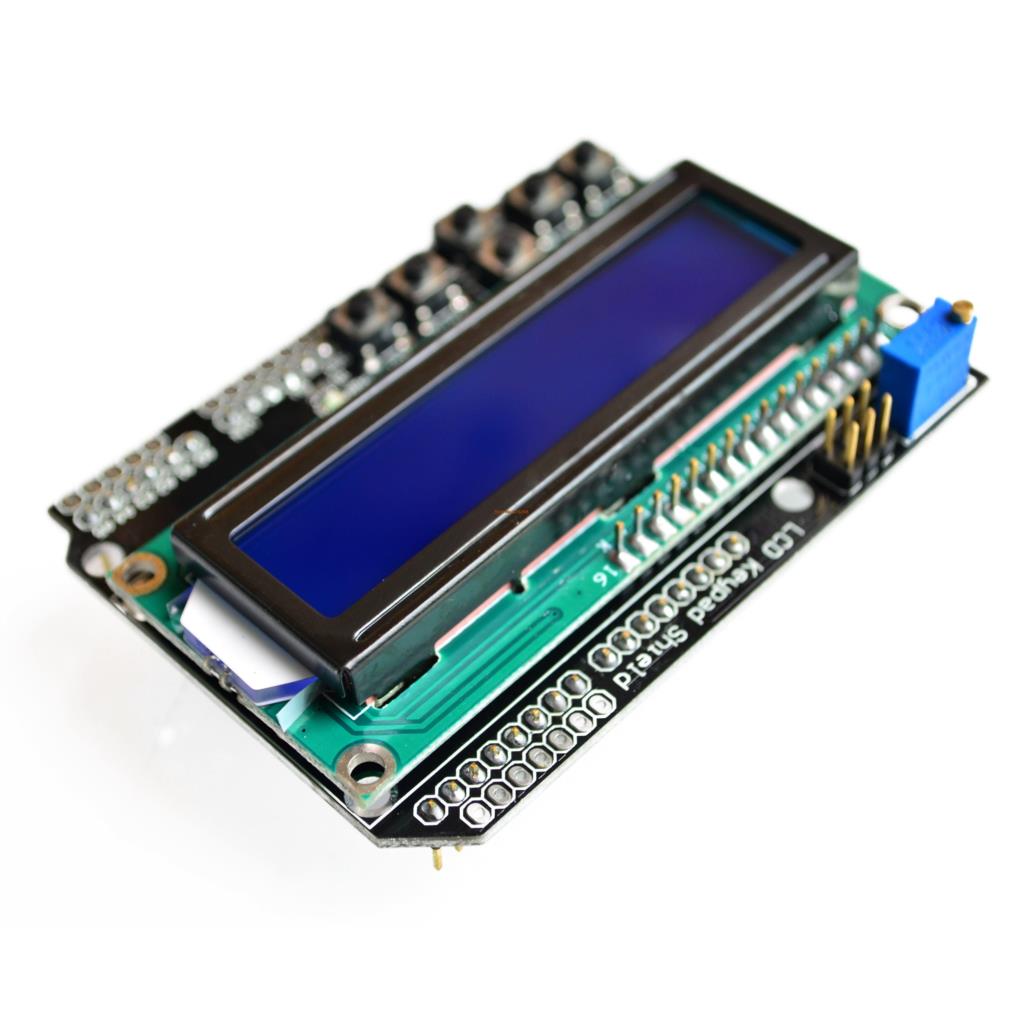

This is a very popular LCD Keypad shield for Arduino and other variants. It includes a 2x16 LCD display and 6 momentary push buttons. Pins 4, 5, 6, 7, 8, 9 and 10 are used to interface with the LCD. Just one Analog Pin 0 is used to read the five pushbuttons. The LCD shield supports contrast adjustment and back-lit on/off functions. It also exposes five analog pins with DFRobot color code for easy analog sensor plugging and display. The on board LED indicates power on.

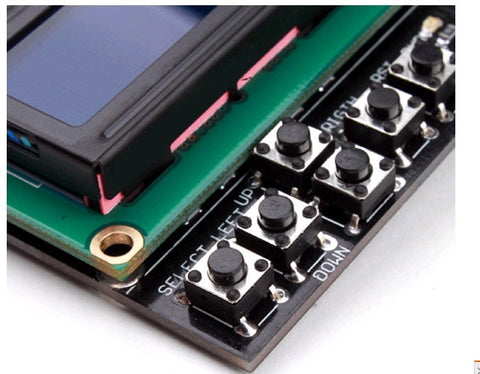

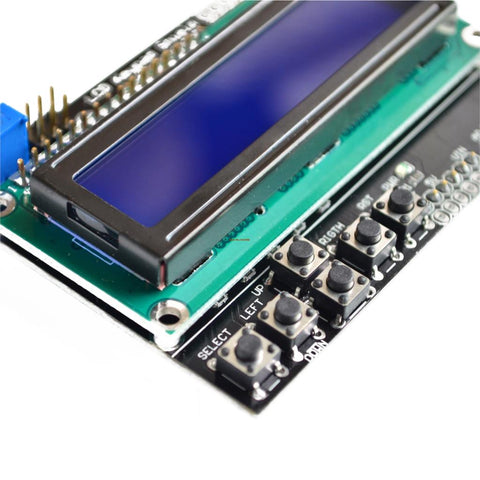

This lcd arduino shield has 5 keys — select, up, right, down and left which allow you move through menus and make selections straight from one board attached to your Arduino project without requiring a massive tower of shields.

This design allows you keep connecting sensors to the rest of the pins, and use it for monitoring or menu selection with the push buttons even for gaming. Project applications require testing or debugging. Displaying information right away help on most occasions when a computer is not at reach. If you are planning to build something not attached to a computer and you need to check what is going on when you place it on position, this addition will prove very valuable to make sure the program is running well.

The used LCD pins are not exposed on top side of the board leaving only the unused ones. This way, conflict with LCD pins on top of the board will not happen anymore. This design includes a APC / Bluetooth v3 socket to enable you data transmission with your robot.

The shield is designed for 'classic' Arduino such as the Uno, Duemilanove, Diecimilla, etc.

Features

  • Educational: Discover the fascinating world of Whadda soldering kits and learn the basics of electronics through engaging projects. The kits offer step-by-step instructions and clear explanations, allowing both beginners and experts to learn and experiment.
  • Creativity: Give space to your imagination and create unique electronic projects with the Whadda soldering kits. Unleash your creativity and build something that is truly yours!
  • Made in Belgium : Whadda is a unique brand from Belgium’s Velleman Group that offers DIY projects for hobbyists or makers who want to immerse themselves in electronics, programming and mechanics.
  • STEM project: Develop and improve your STEM skills and acquire the knowledge, skills and experience needed to face the technological challenges of the future with this educational kit. This educational kit will trigger a number of processes such as problem-solving, investigative and creative thinking.
  • Perfect for young and old: With this experiment kit, children and adults with little or no prior knowledge can take their first steps into the exciting world of electronics and advanced users can deepen their knowledge.
  • The kit is ideal for youngsters and adults aged 9 to 99! However, children under 14 must be accompanied by an adult.
  • To make this kit, you will need some basic tools (not included): a soldering iron or station, solder tin and pliers. Another practical tool is an anti-static soldering mat.

Specifications

  • Product basic info:
    • Instruction manual languages: English
    • Primary colours: Multicolour
    • Depth unit: 5.8 cm
    • Height unit: 0.2 cm
    • Width unit: 8 cm
    • Weight unit: 58 g
  • Technical data:
    • Specifications kits & modules: <ul> <li>blue background / white backlight</li> <li>screen contrast adjustment</li> <li>uses 4 bit Arduino LCD library</li> <li>reset button</li> <li>the Up, Down, Left, Right buttons use only one analogue input</li> </ul>
  • Operational properties:
    • Coding skill level: none
    • Electronics skill level: none
    • Mechanics skill level: none
    • Soldering skill level: none
